GENERAL INFORMATION

Basic Functions

Transportation of Oil/Refined Products

Class Notations

BUREAU VERITAS

I + HULL + OIL/CHEMICAL IMO II TANKER,

ESP, Unrestricted Navigation,

 AUT-, UMS, CLEAN SHIP, AVM-DPS,

VCS- TRANSFER, INWATER SURVEY



MAIN PARTICULARS

Lenght Overall

89.71 m

Lenght P.P.

83.30 m

Breadth Moulded

12.50 m

Depth

6.10 m

Draught

5.13 m

Deadweight (Approx.)

3165 t

Gross Ton

2166

Speed

11.5 kts @85% MCR

Cargo Volume 100%

3505 m3 (Approx.)



TANK CAPACITIES

Cargo

3505.66 m3

Ballast

1357.08 m3

Diesel Oil

49.62 m3

Heavy Fuel Oil

135.09 m3

Lube Oil

28.57 m3

Fresh Water

79.76 m3

Greywater

17.37 m3

Blackwater

10.03 m3

Overflow

8.72 m3

Bilge

10.37 m3

Sludge

9.80 m3



PROPULSION SYSTEM

Main Engines

2 x ABC – 6MDZC

Total Power

1000 kW @ 900 rpm

Propeller

2 x SHOTTEL - AZIMUTH PROPELLER

AUXILIARY ENGINES

3 x LINDENBERG ANGKEN GMBI – MAN D 2876 LE 301

Generator (Main)

325 kW, 406.25 kVA



DECK EQUIPMENT

Hose Crane

1 x GÜRDESAN – GD .HK/50-13  SWL 5 TON

Maneuvering Crane

2 x GÜRDESAN – 2500 DWT GD.MW-2501

Maneuvering Crane

1 X GÜRDESAN – GD.AW6001.AP



ACCOMMODATION

For 13 persons, cabins are insulated and finished with durable

linings, isolated wheelhouse, floating floors and air-conditioned

rooms. The Captain’s cabin,  Chief Captain cabin, Chief Engineer’s cabin,

Second Engineer’s cabin, Hospital Pilot’s cabin, The Cook’s cabin;

1 double crew cabins, 5 single crew cabin, galley,

mess room and sanitary facilities.



REFERENCES

Owner

DÜZGİT GEMİ İNŞA SAN. A.Ş.

Shipyard

SELAHATTİN ASLAN SHIPYARD

Hull Number

NB11

CPT-09

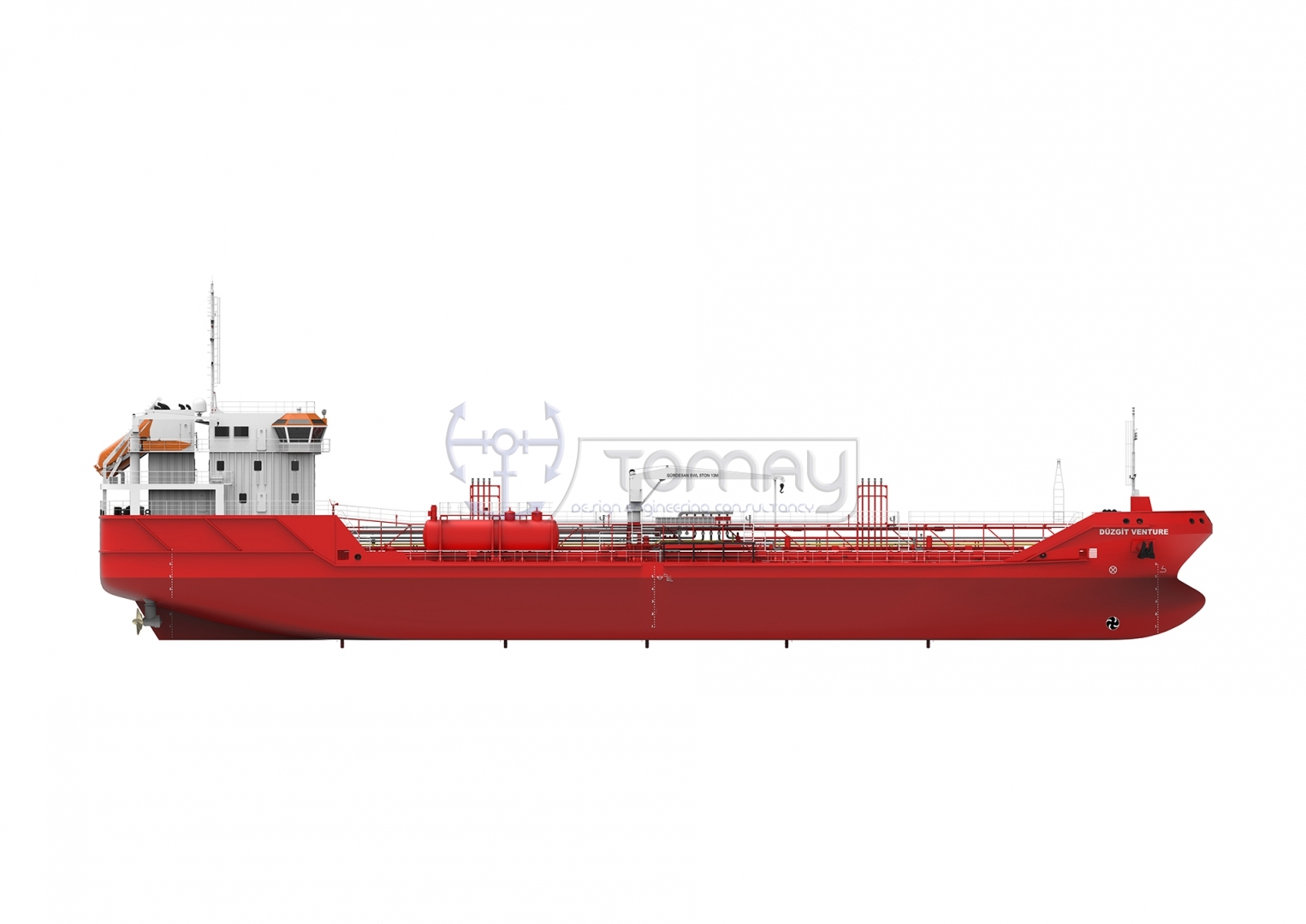

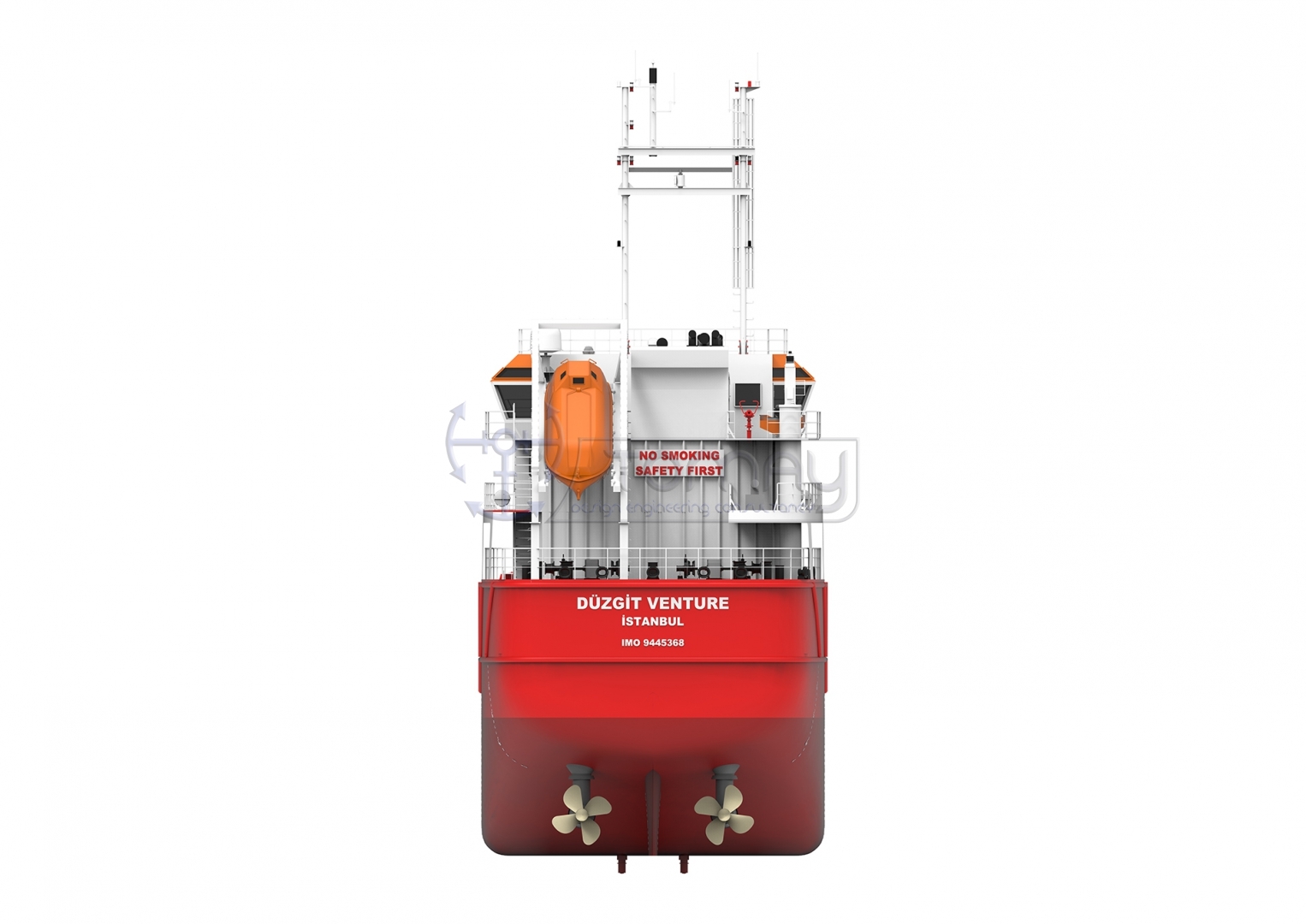

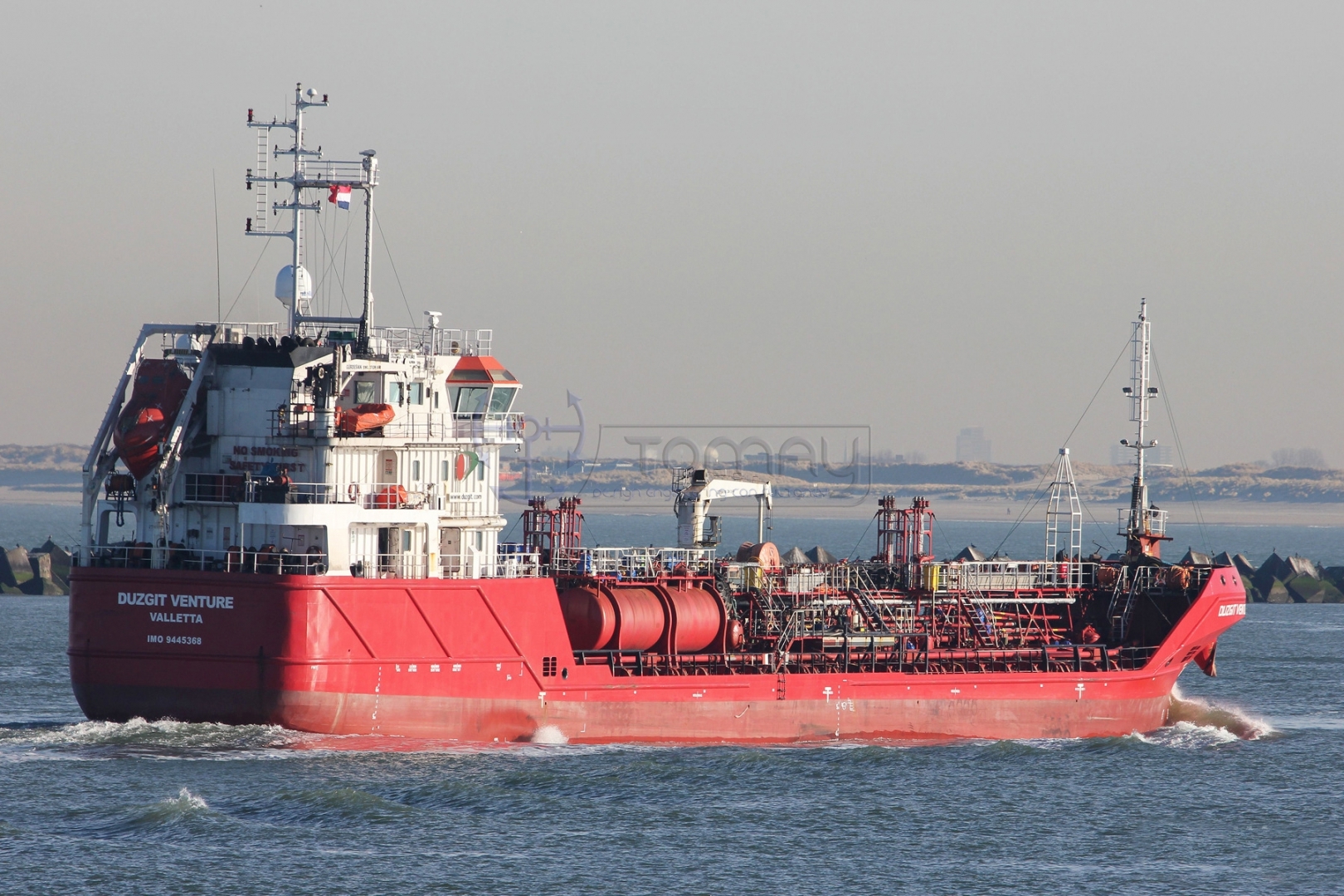

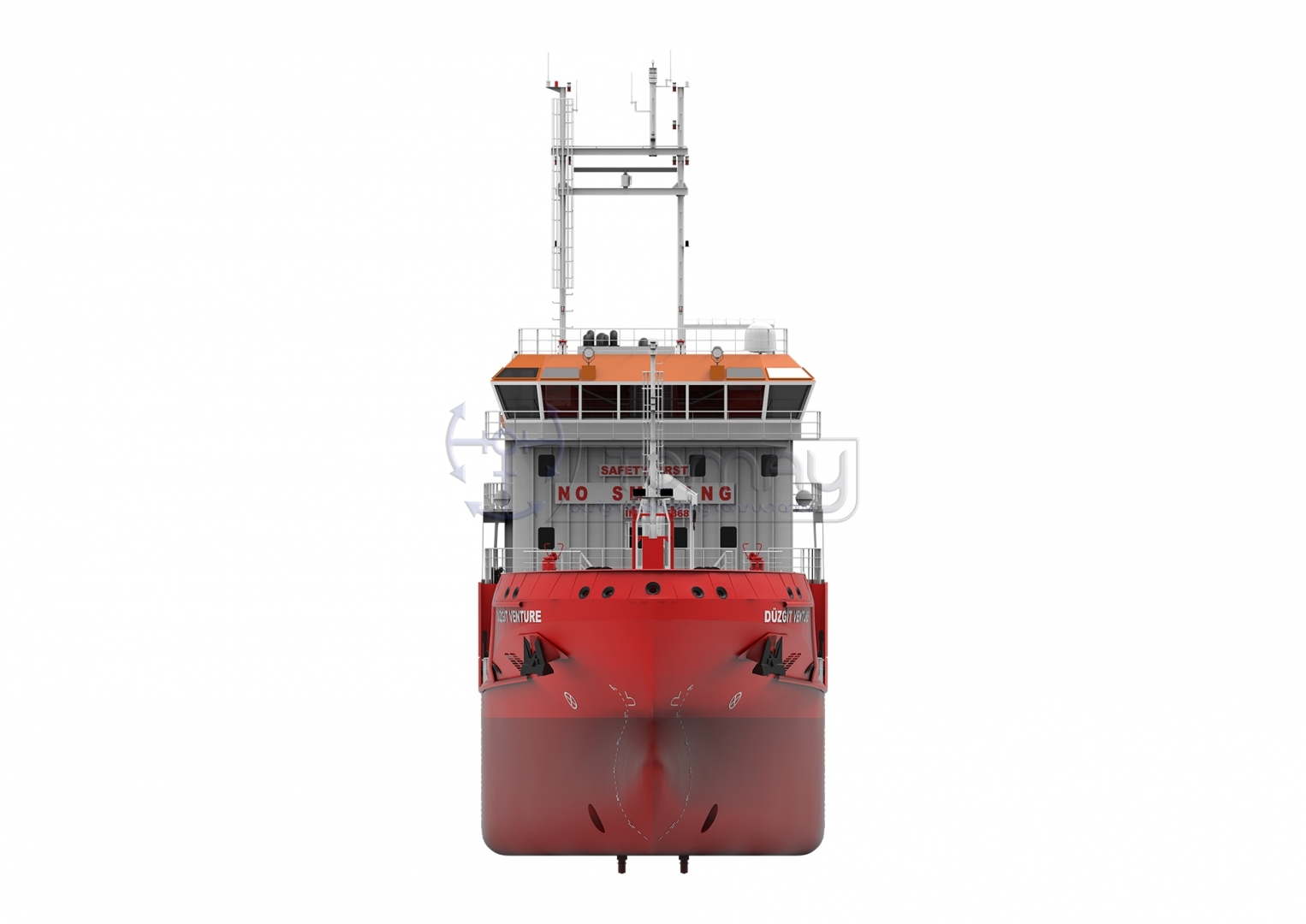

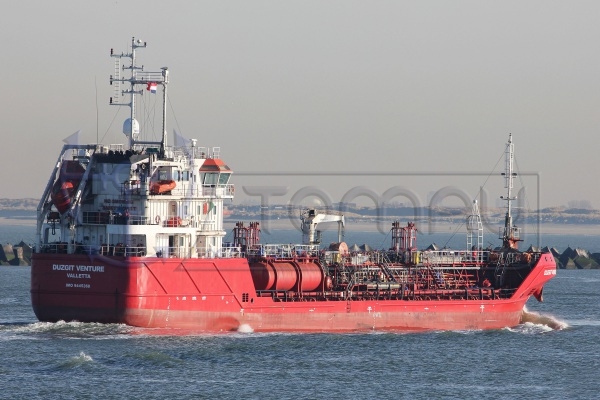

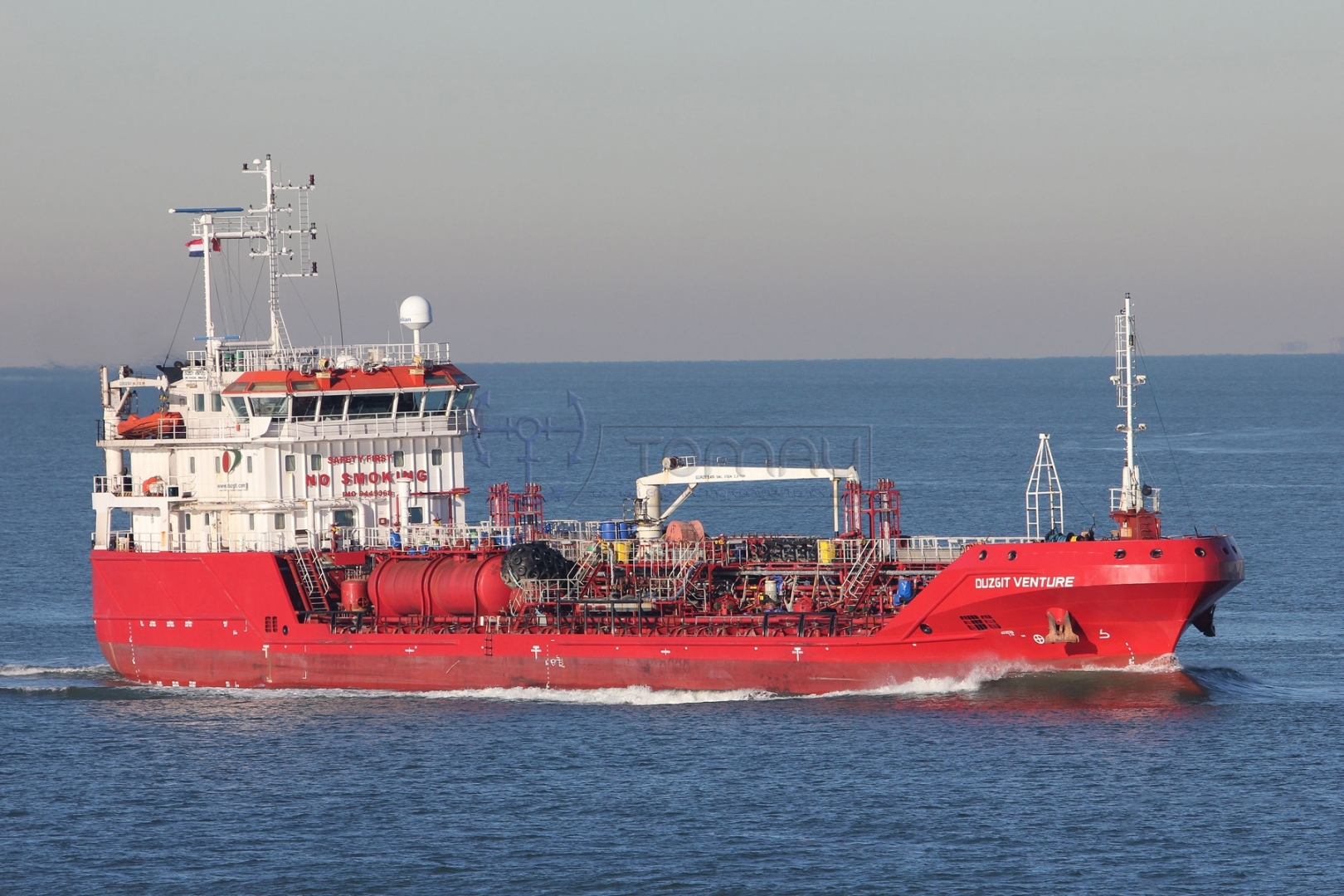

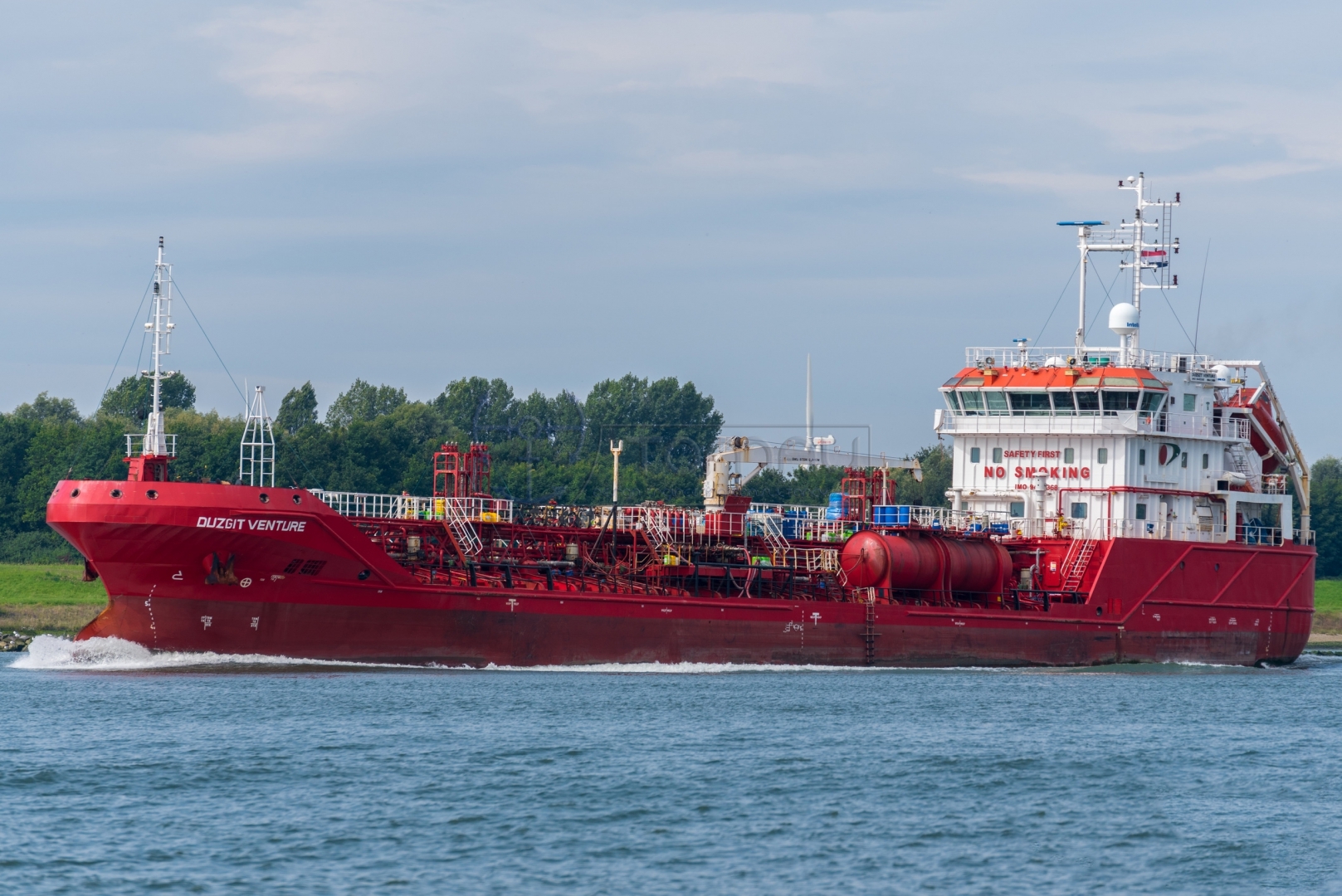

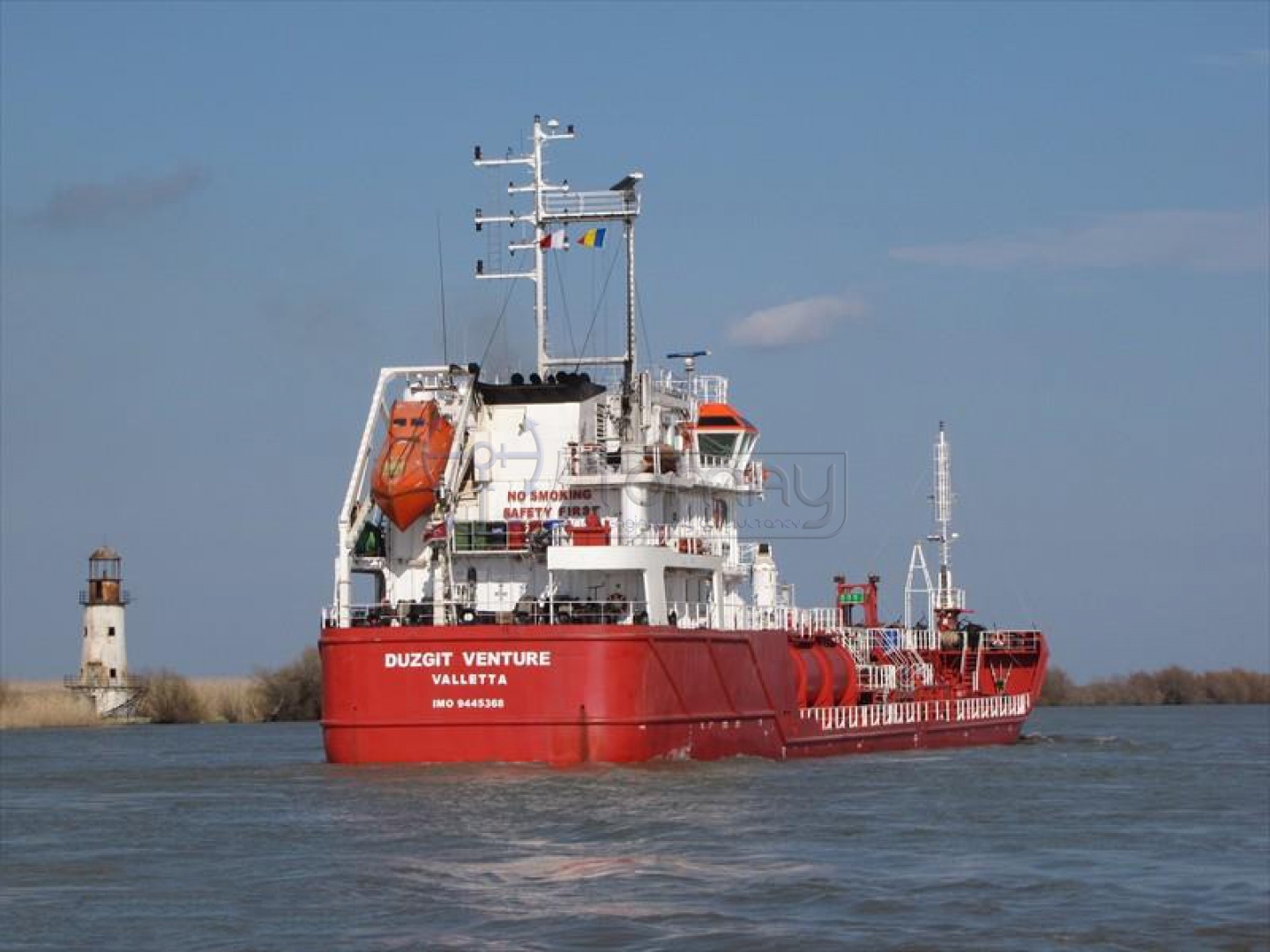

3165 DWT CHEMICAL/OIL PRODUCT TANKER

  • ALL

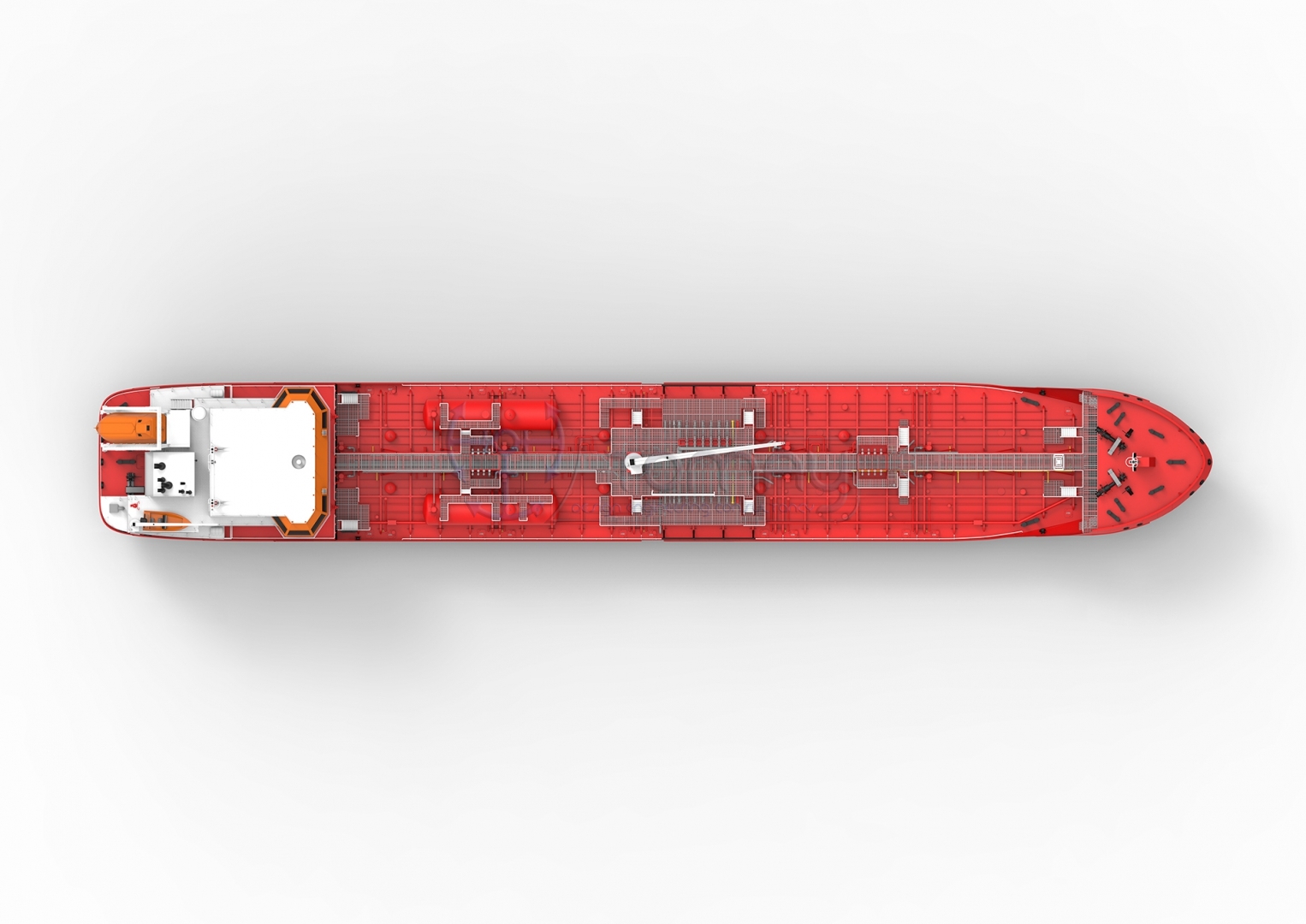

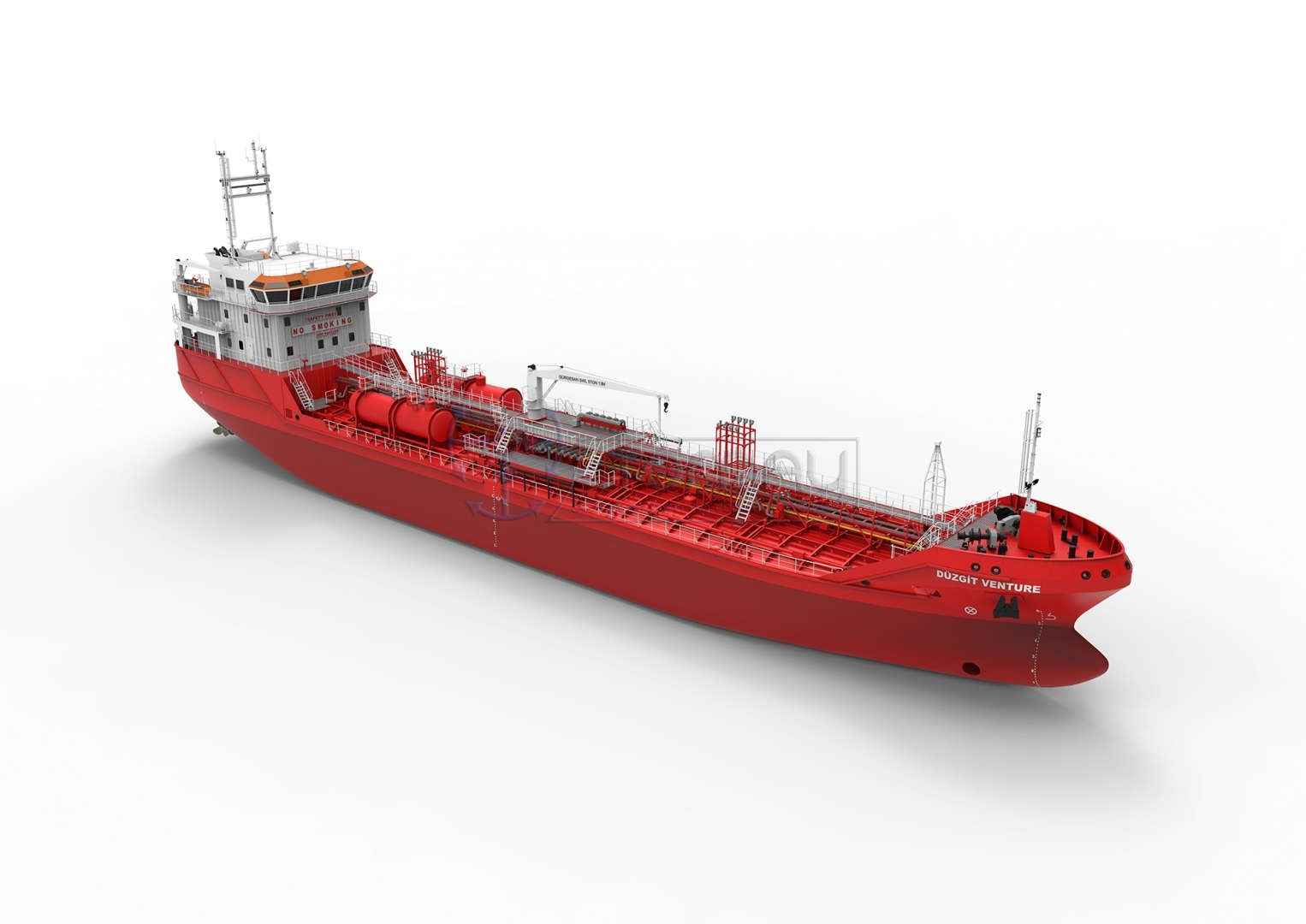

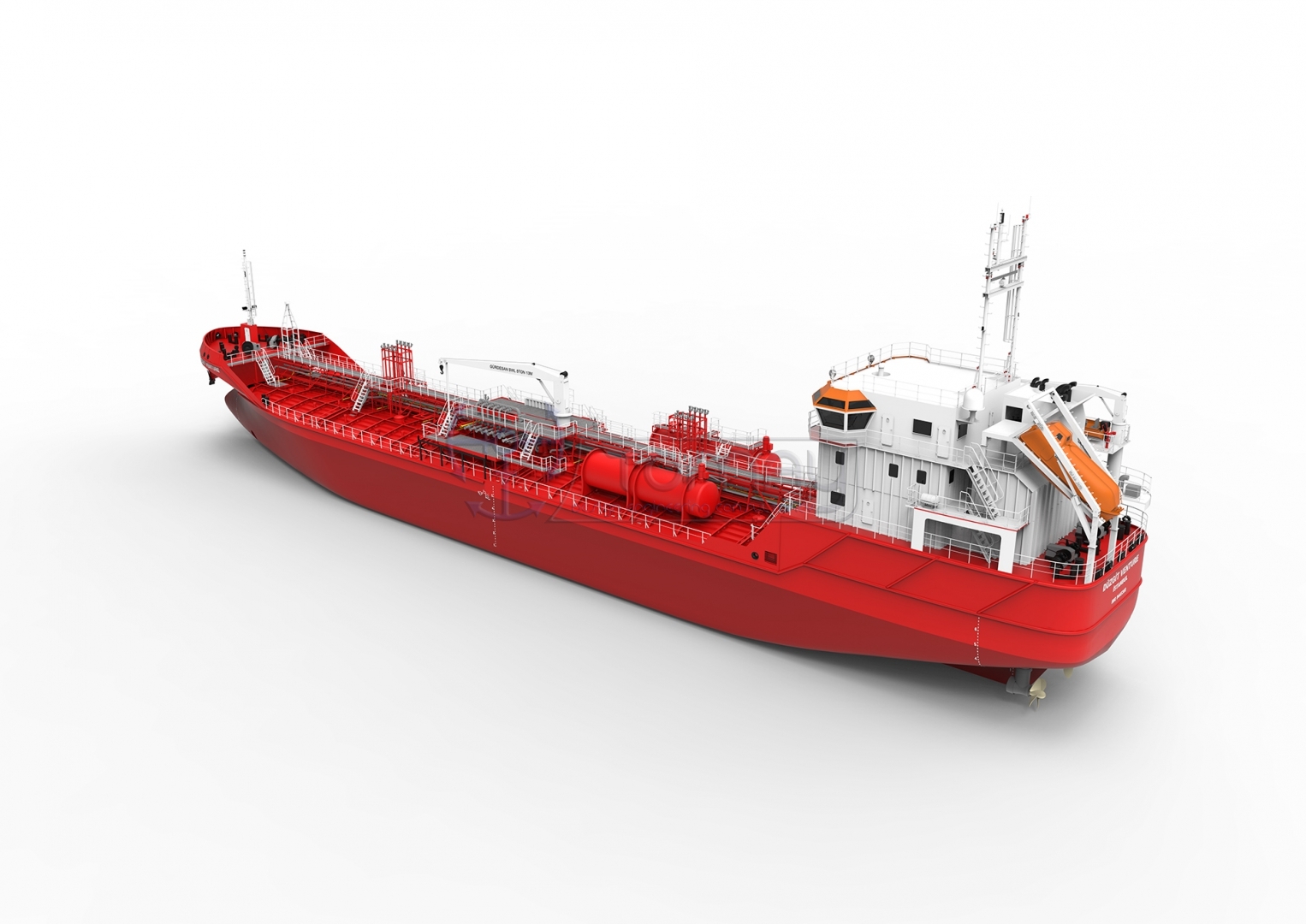

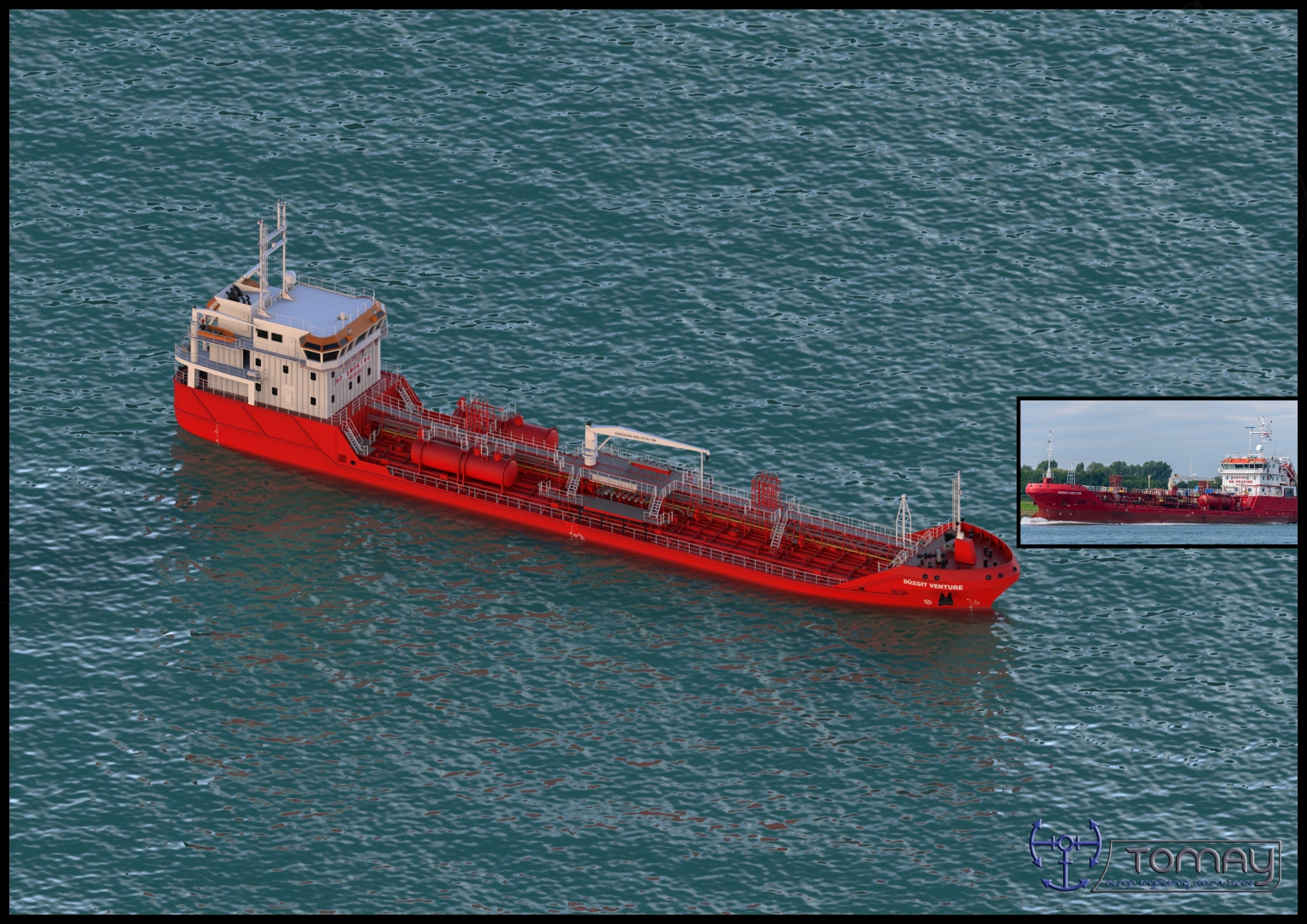

  • Render / Project Images

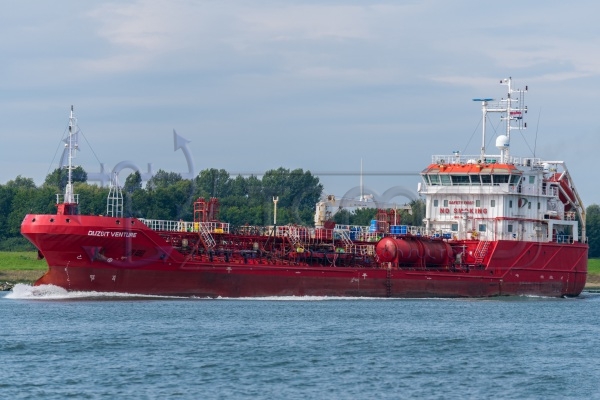

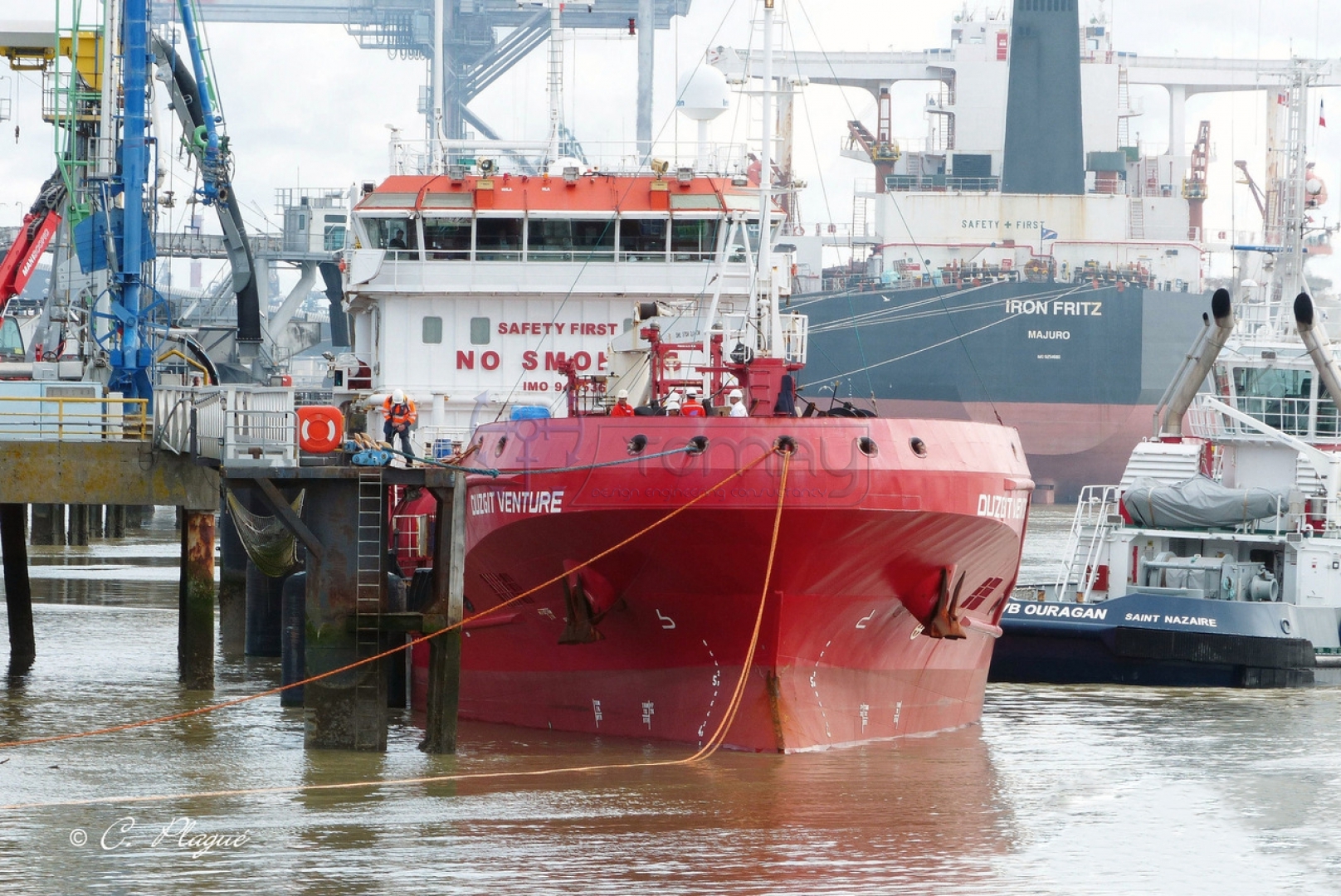

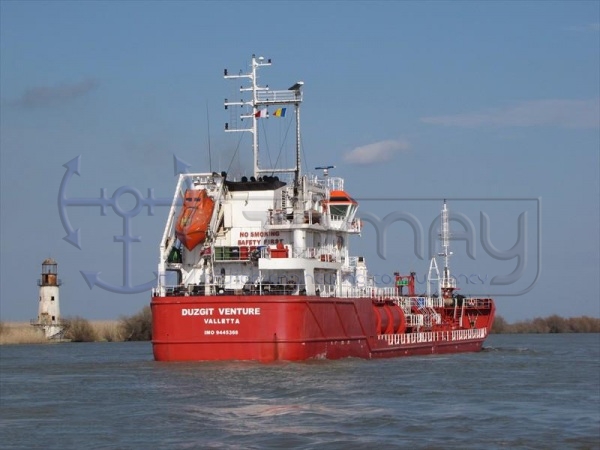

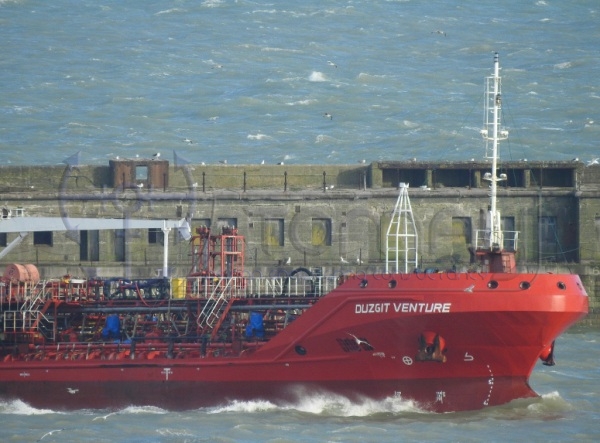

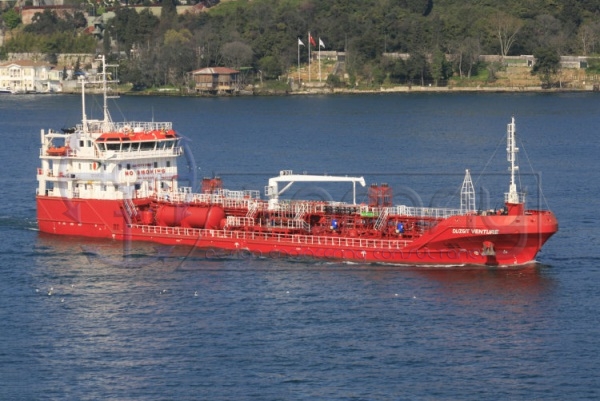

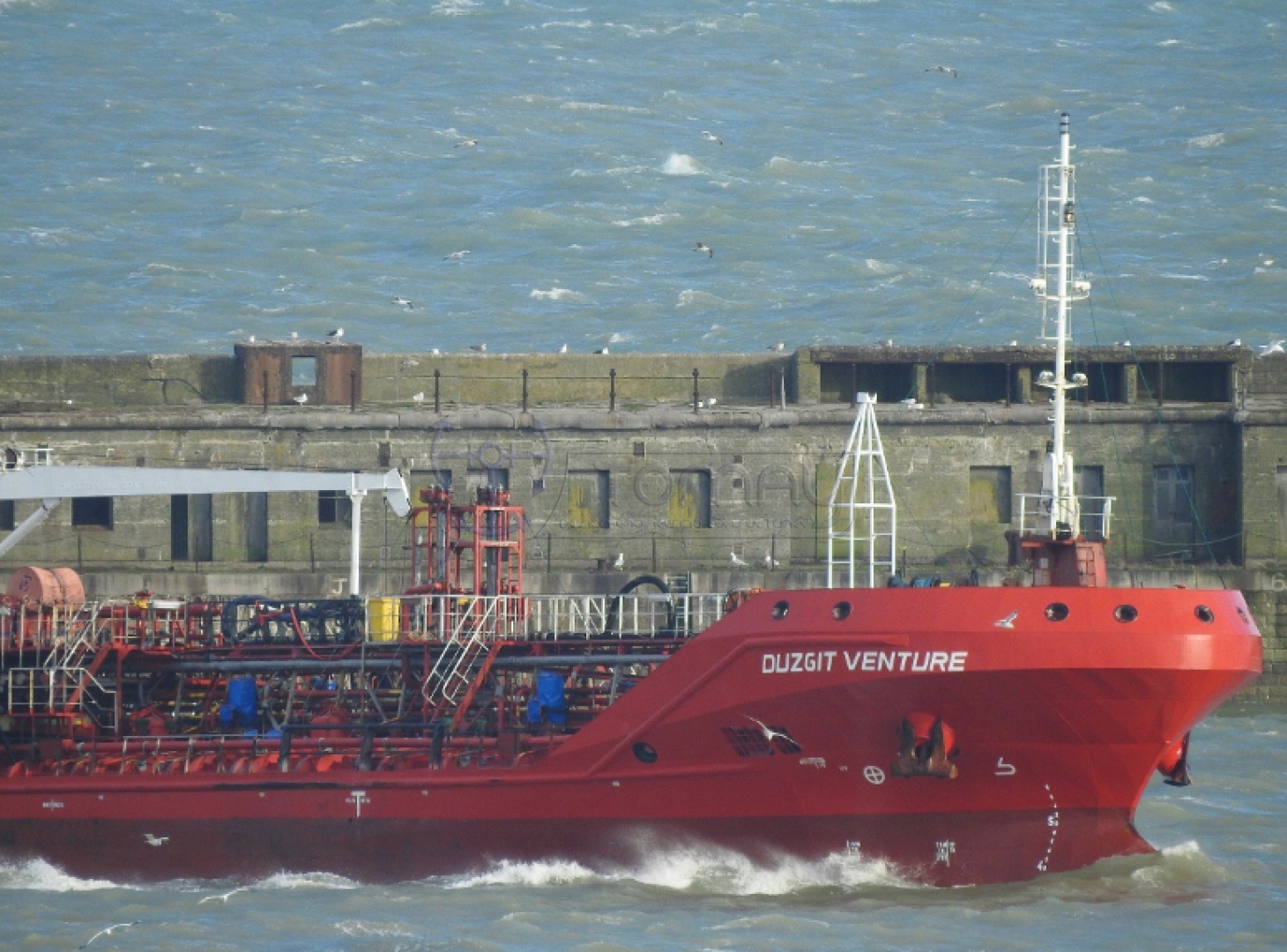

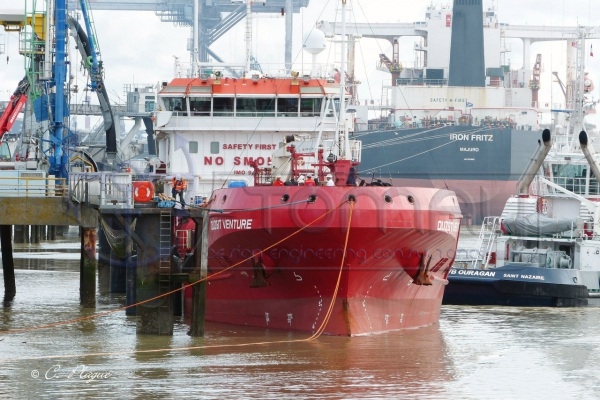

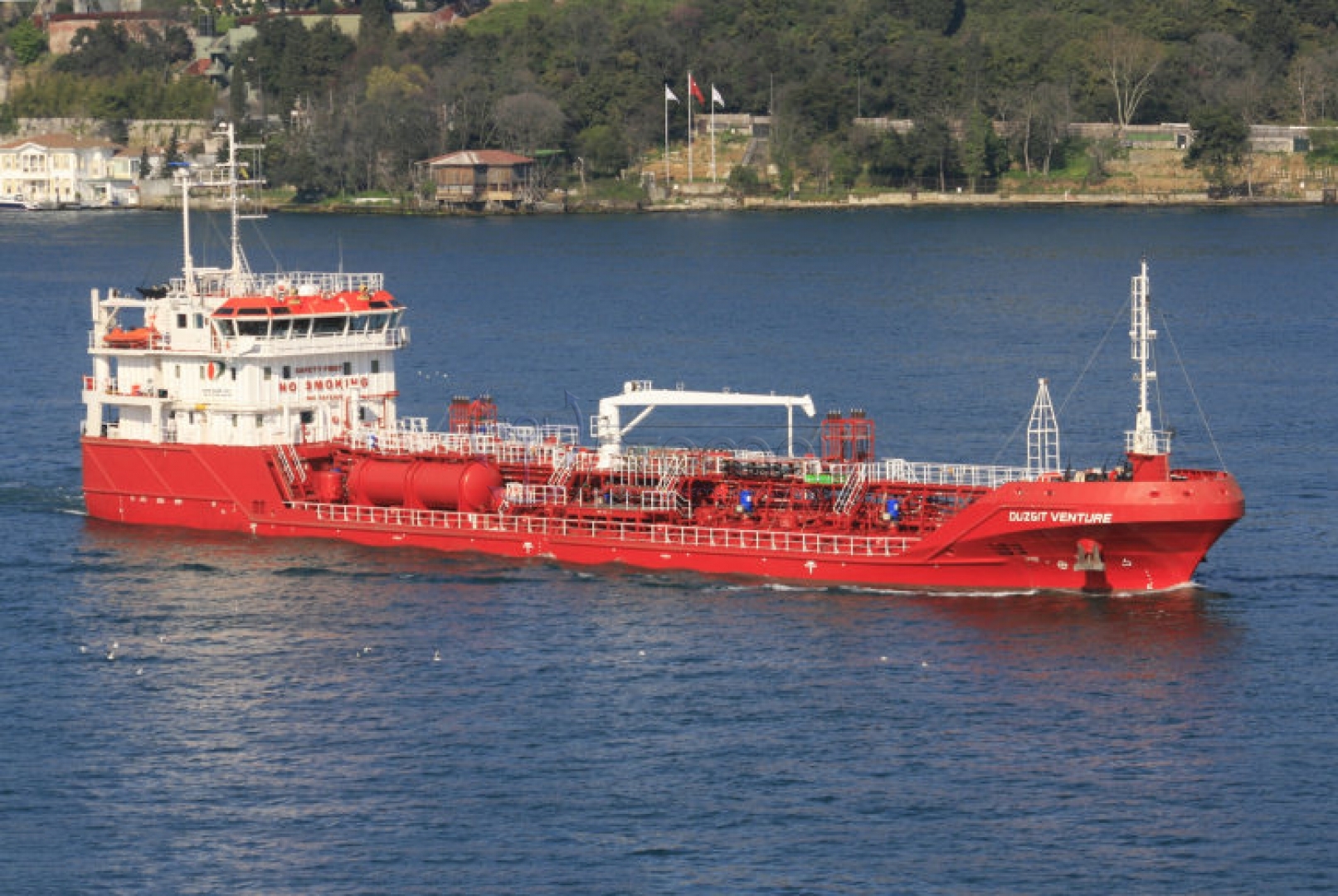

  • Detail Photos
