GENERAL INFORMATION

Basic Functions

Transportation of Oil/Chemical Products

Class

BUREAU VERITAS

Notations

HULL* MACHINERY, OIL&CHEMİCAL TANKER ESP,
 UNRESTRICTED NAVIGATION, *AUT-UMS, CLEAN SHIP,
MON SHAFT, ICE CLASS 1A, IG, MANOVR, AVM-APS,
VCS, INWATERSURVEY.



MAIN PARTICULARS

Lenght Overall

68.06 m

Length W.L.

66.93 m

Lenght P.P.

65.53 m

Breadth Moulded

10.80 m

Depth

5.00  m

Draught (Design)

4.15 m

Deadweight (Approx.)

1750 t (Approx.)

Gross Ton

998

Speed

9.5 kts

Cargo Volume 100%

1728 m3



TANK CAPACITIES

Cargo

1728 m3

Ballast

712 m3

Diesel Oil

30.64 m3

Fresh Water

29.64 m3

Blackwater

4.65 m3

Greywater

7.64 m3

Overflow

7.48 m3

Bilge

10.22 m3

Sludge

7.47m3

PROPULSION SYSTEM

Main Engines

2 x VOLVO

Total Power

2 x 485 kW @1900 rpm

Propeller

2 x Fixed Pitch / 4 Blades



AUXILIARY ENGINES

Generator (Main)

2 x CUMMINS

Total Power

2 x 125.5 kW



DECK EQUIPMENT

HOSE CRANE

1 x DENİZSAN SWL  0.95 t 1.7 – 12.0 m

CHAIN STOPPER

DENİZSAN

ANCHOR WINDLASS

DENİZSAN- DSBDÇ0



ACCOMMODATION

For 16 persons, cabins are insulated and finished with durable linings, isolated wheelhouse, floating floors and air-conditioned rooms. The Captain’s cabin, Chief Engineer’s cabin, 7 double crew cabins,

galley, mess room and sanitary facilities.



REFERENCES

Owner

İSTANBUL TERSANECİLİK VE

 DENİZCİLİK SAN.TİC.LTD.STİ

Shipyard

İSTANBUL TERSANECİLİK VE

 DENİZCİLİK SAN.TİC.LTD.STİ

Hull Number

NB-17

PT-15

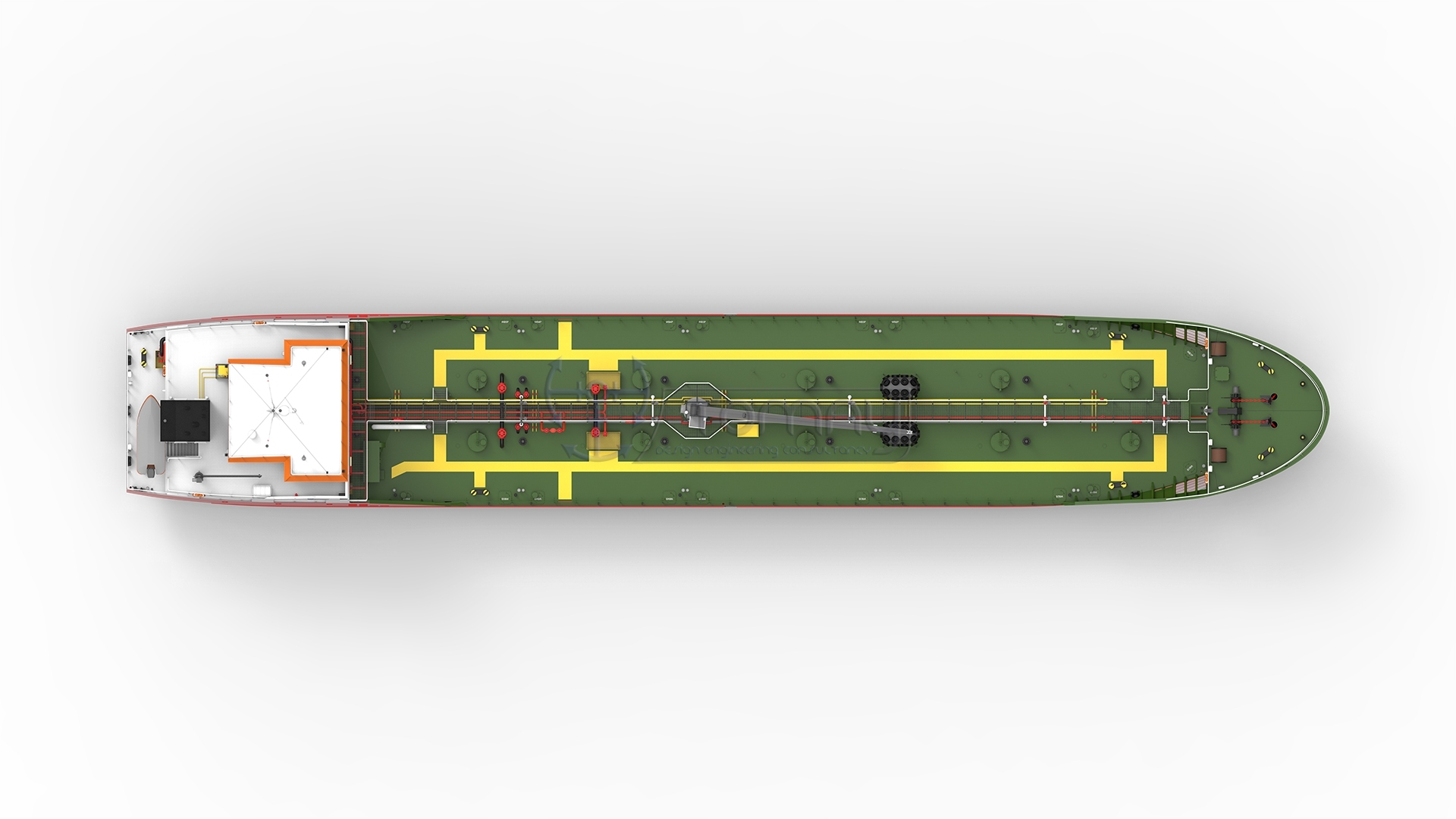

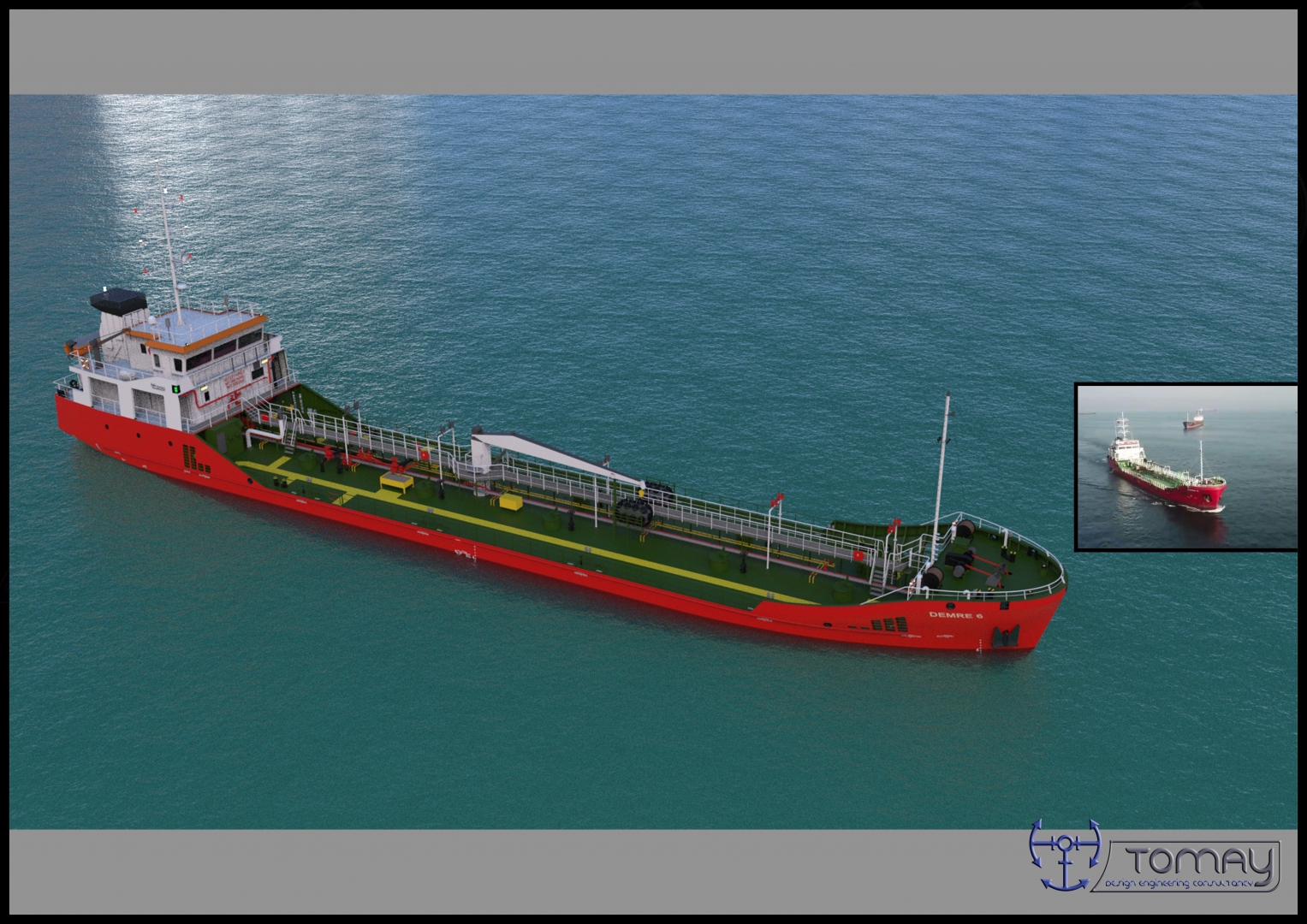

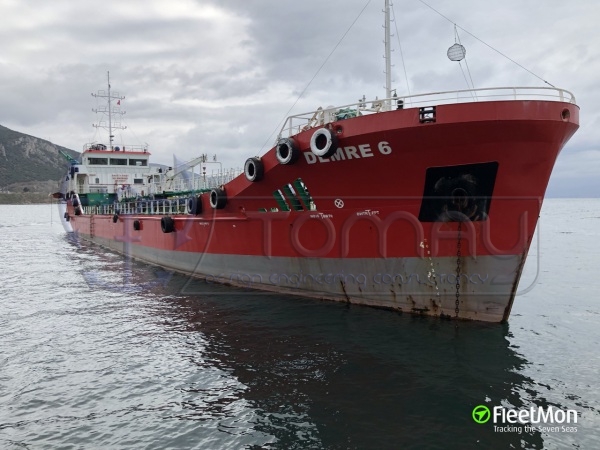

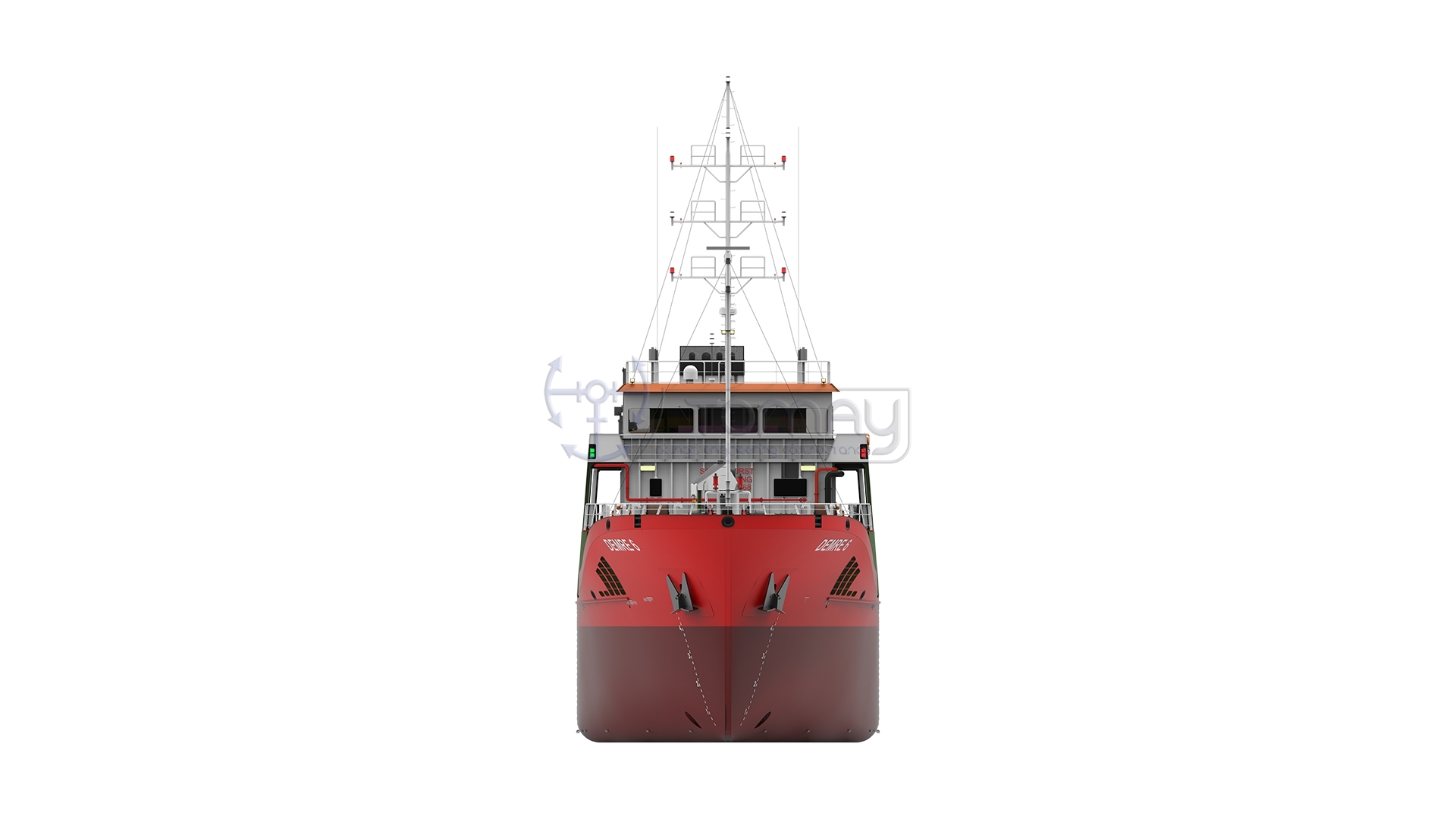

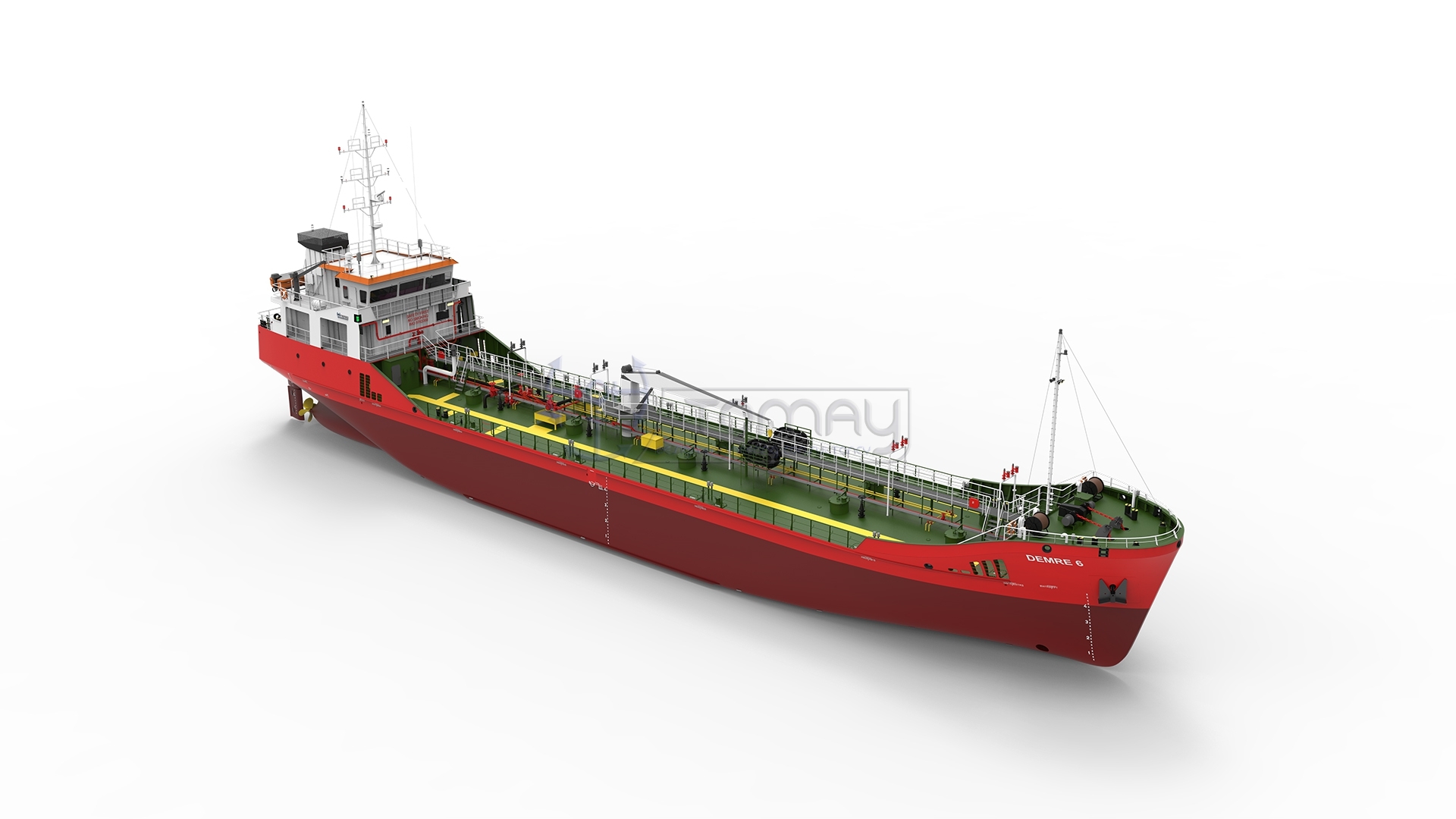

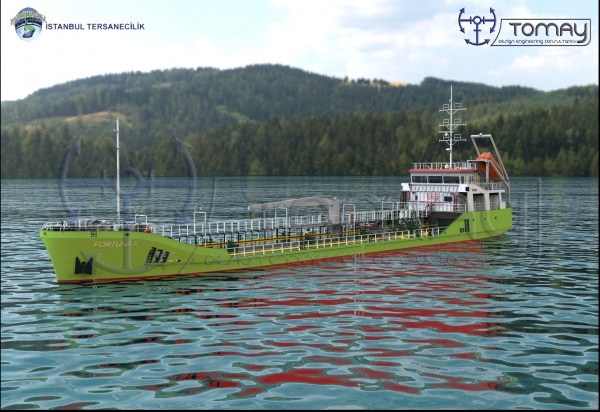

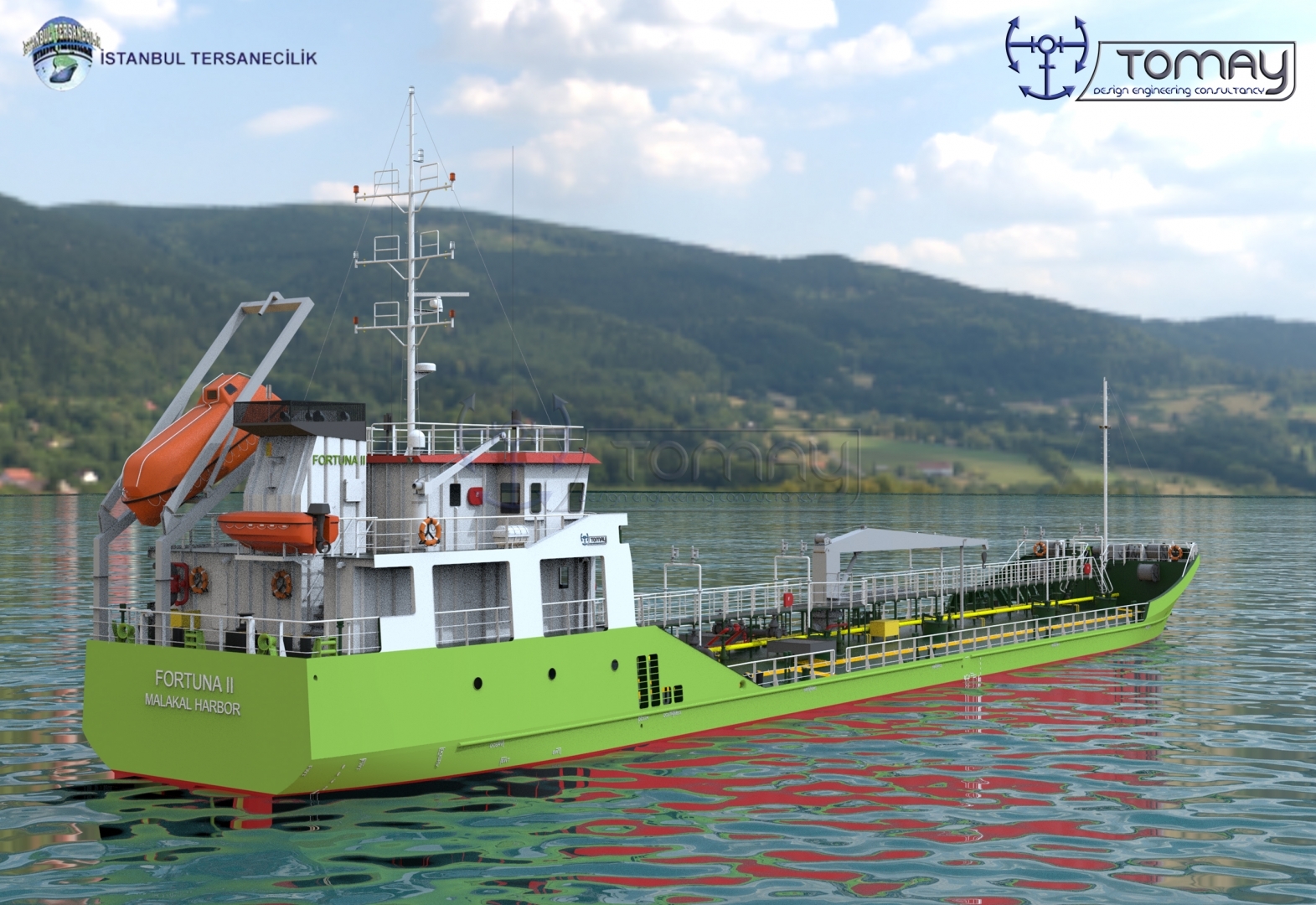

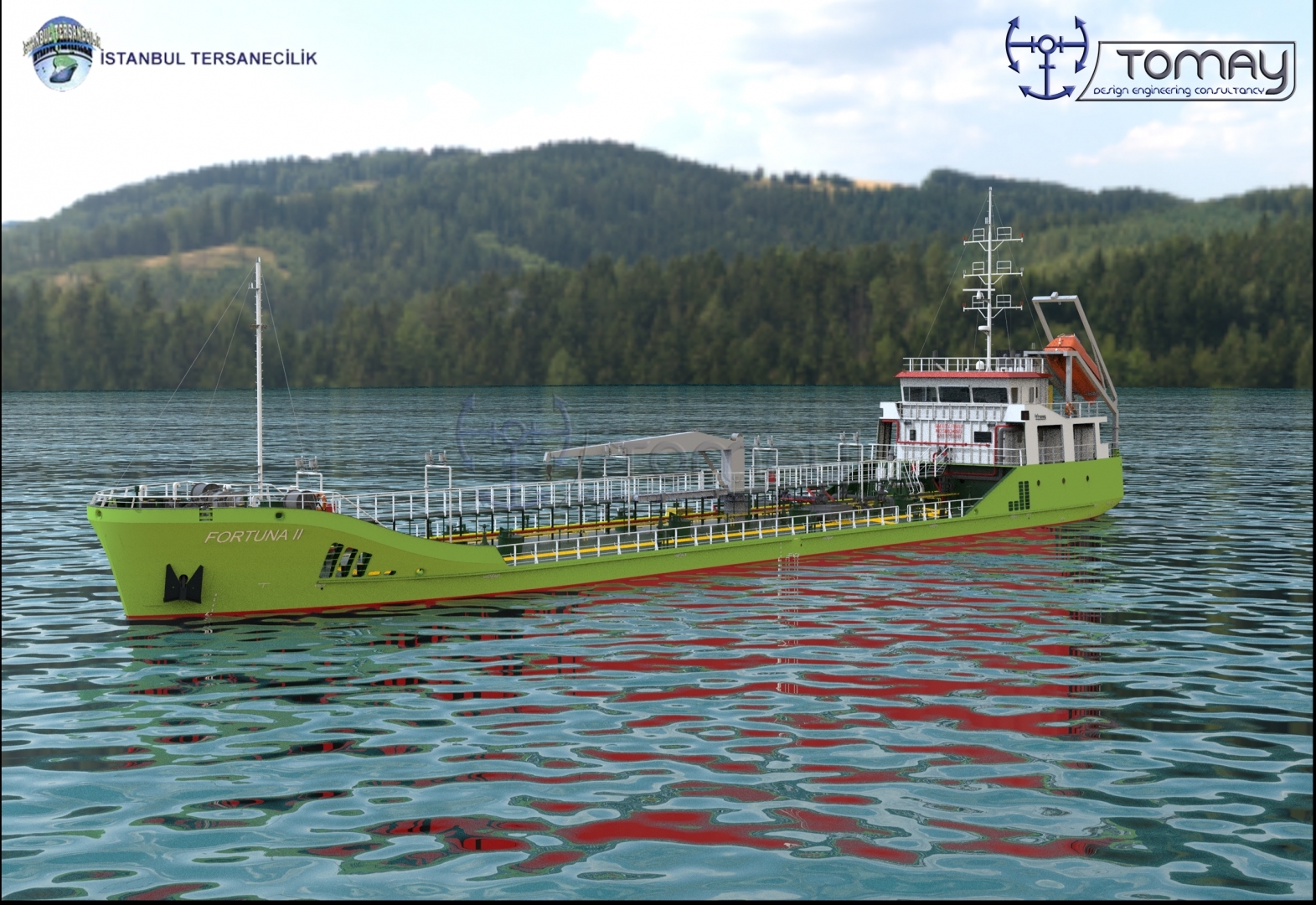

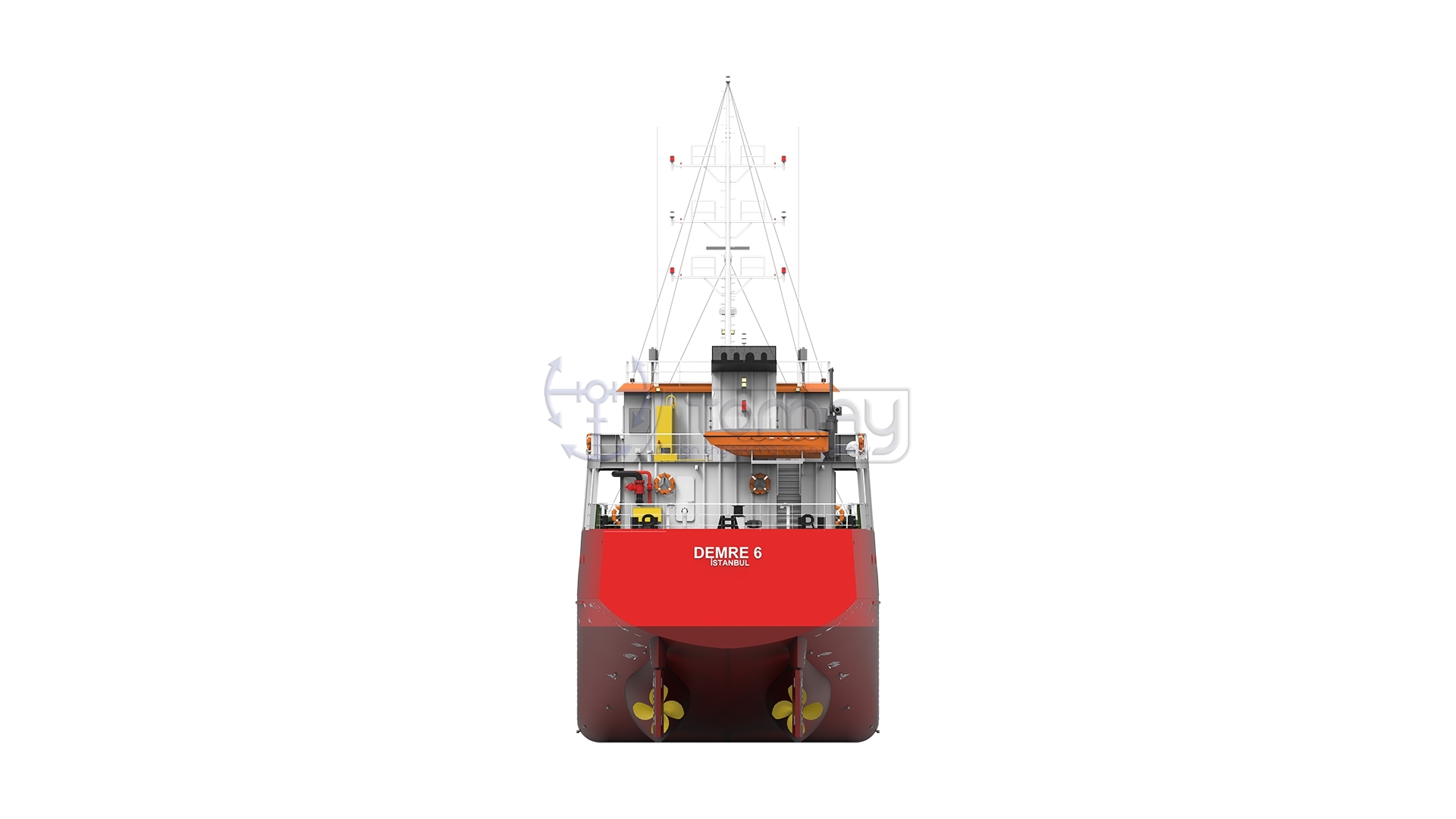

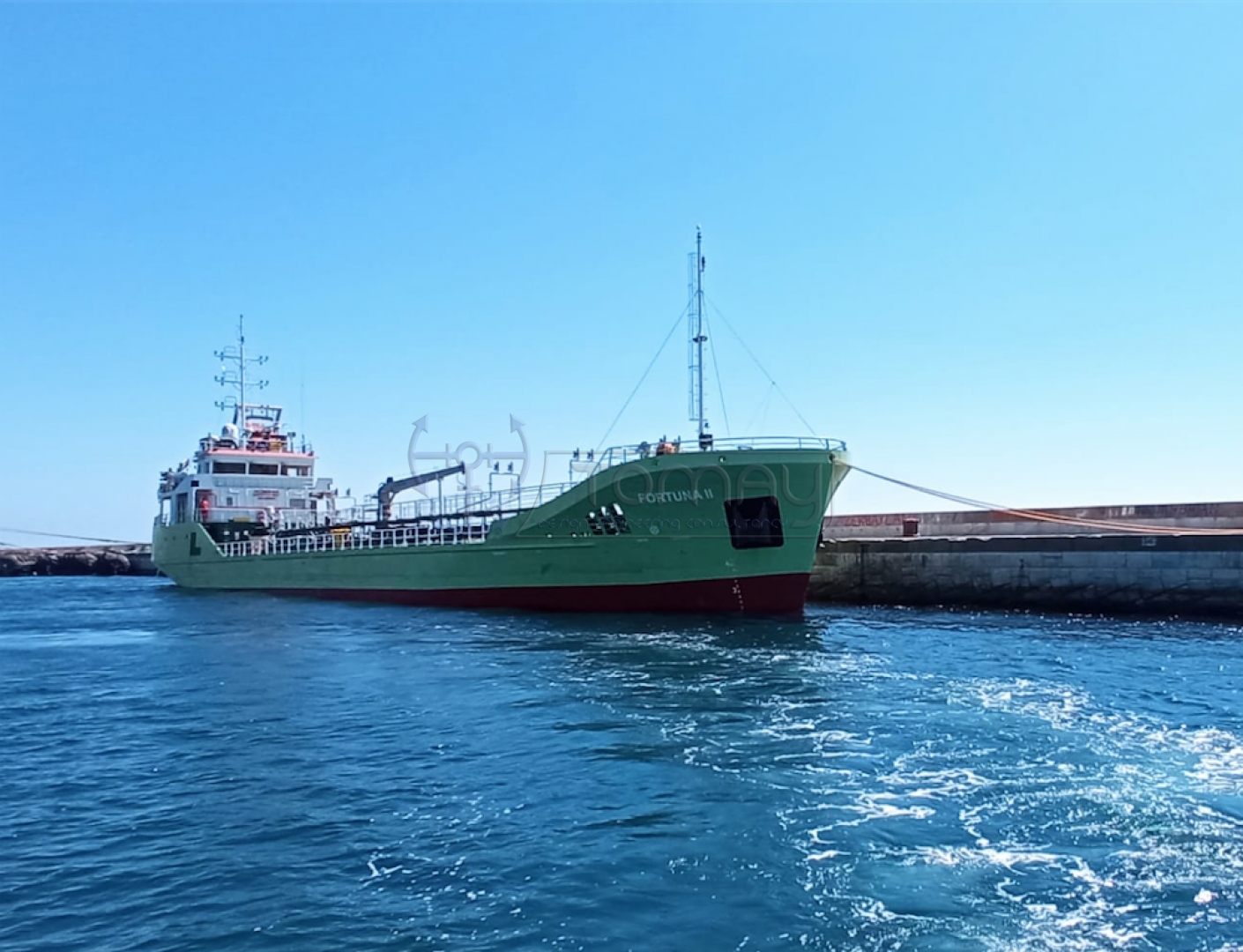

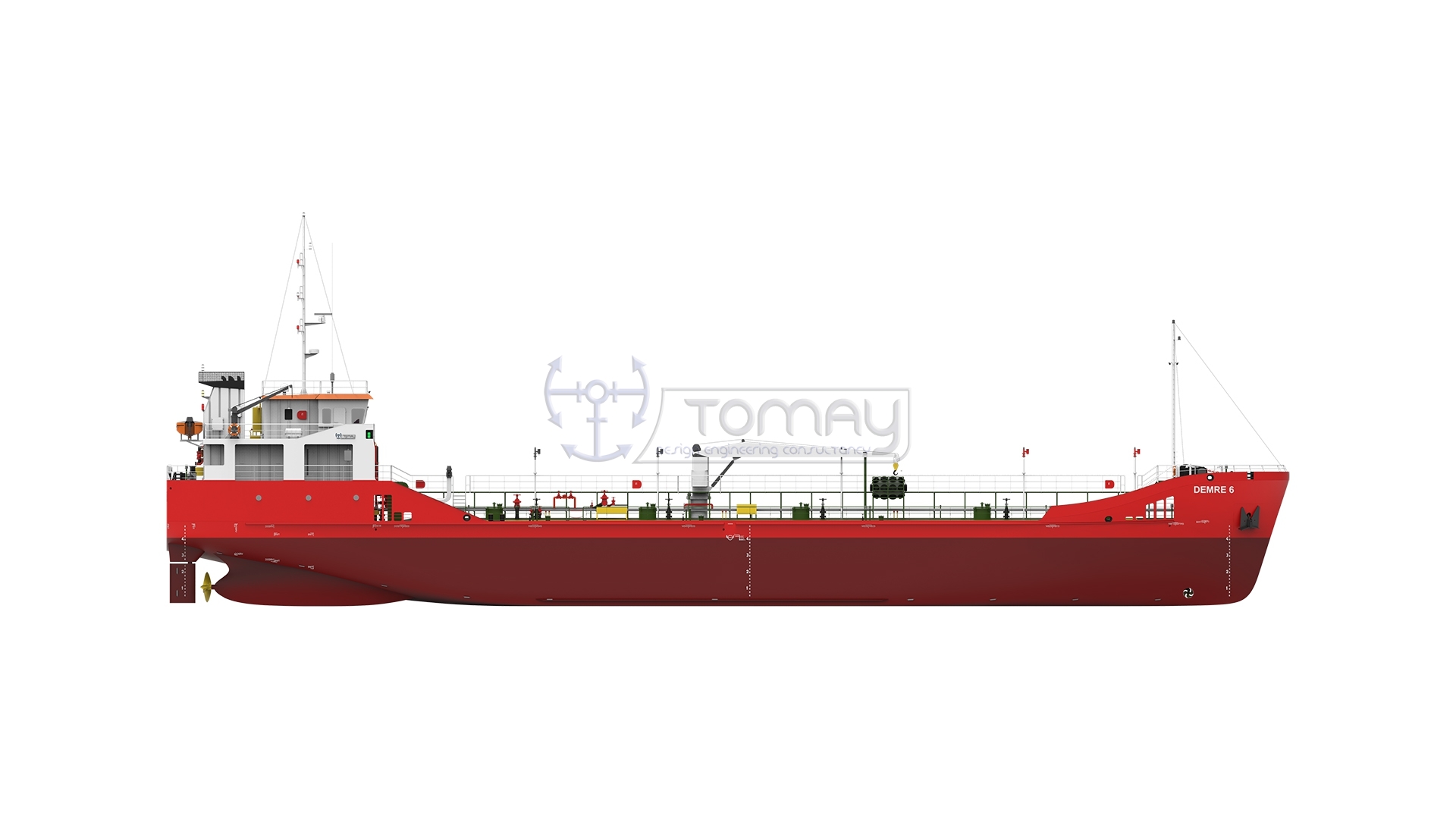

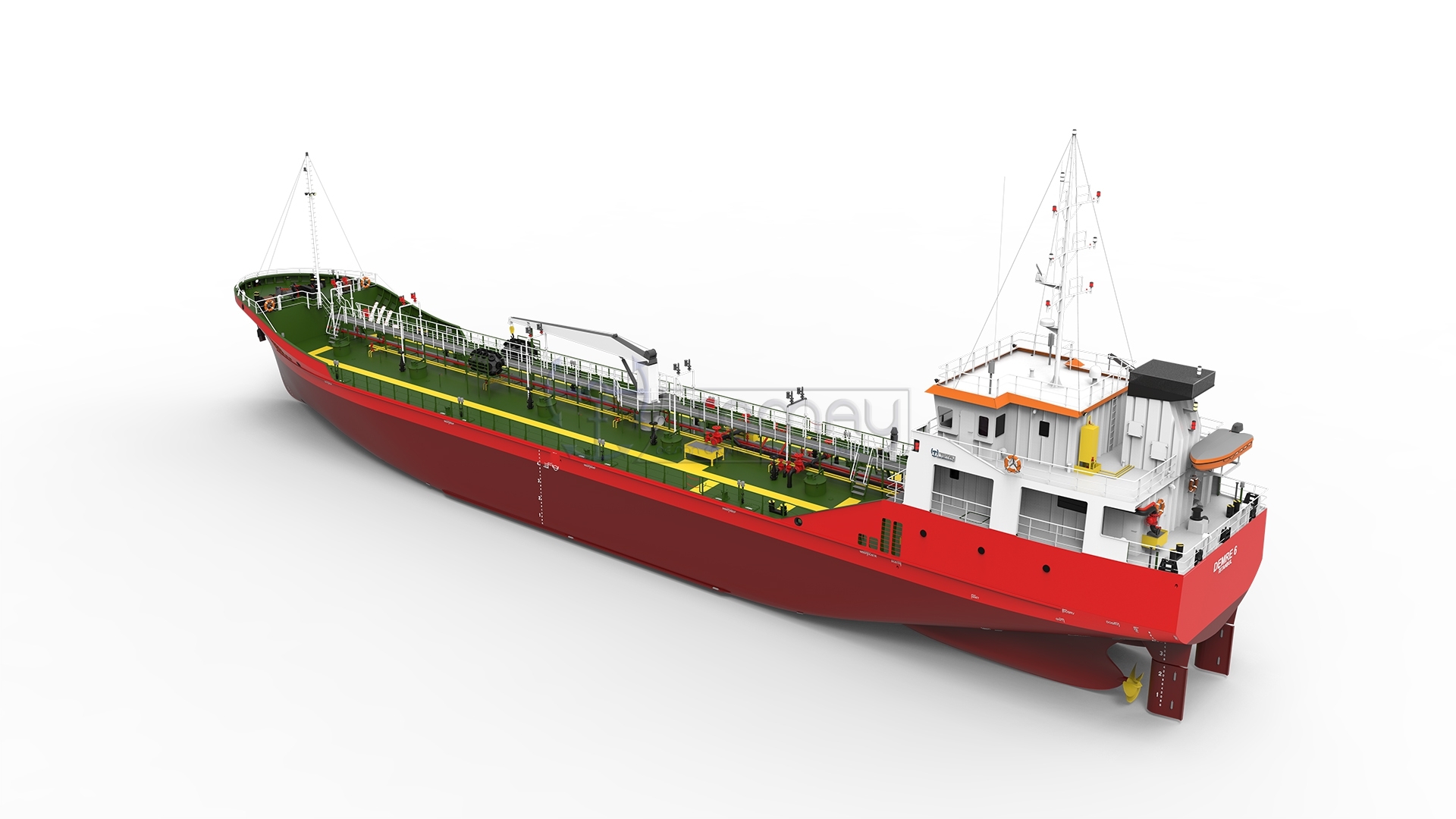

1750 DWT OIL PRODUCT TANKER
