GENERAL INFORMATION

Basic Functions

Transportation of Oil Products

Class

BUREAU VERITAS

Notations

I X HULL, X MACHINERY, OIL TANKER ESP,
UNRESTRICTED NAVIGATION, FLASH POINTABOVE 60oC
Alternate and asymmetrical loadings are allowed at sea.
500>GRT (Not covered by SOLAS Convention)



MAIN PARTICULARS

Lenght Overall

67.470 m

Length W.L.

66.445 m

Lenght P.P.

64.945 m

Breadth Moulded

10.800 m

Depth

5.000 m

Draught (Design)

4.181 m

Deadweight

1750 t (abt.)

Gross Ton

998

Speed

9.5 kts

Cargo Volume 100%

1728 m3 (abt.)



TANK CAPACITIES

Cargo

1674.67 m3

Ballast

689.20 m3

Diesel Oil

30.98 m3

Fresh Water

23.36 m3

Overflow

7.91 m3

Bilge

13.16 m3

Sludge

7.91 m3

Gray water

7.64 m3

Black water

4.10 m3

PROPULSION SYSTEM

Main Engines

2 x YANMAR – 6AYM-WST

Total Power

2 x 485 kW @1900 rpm

Propeller

2 x Fixed Pitch / 4 Blades



AUXILIARY ENGINES

Generator (Main)

1 x 125.5 kW

(Harbour)





ACCOMMODATION

For 10 persons, cabins are insulated and finished with durable linings, isolated wheelhouse, floating floors and air-conditioned rooms. The Captain’s cabin, Chief Engineer’s cabin, 8 crew cabins, galley, mess room and sanitary facilities.



REFERENCES

Owner

İSTANBUL TERSANECİLİK VE

 DENİZCİLİK SAN.TİC.LTD.STİ

Shipyard

İSTANBUL TERSANECİLİK VE

 DENİZCİLİK SAN.TİC.LTD.STİ

Hull Number

NB-16

PT-14

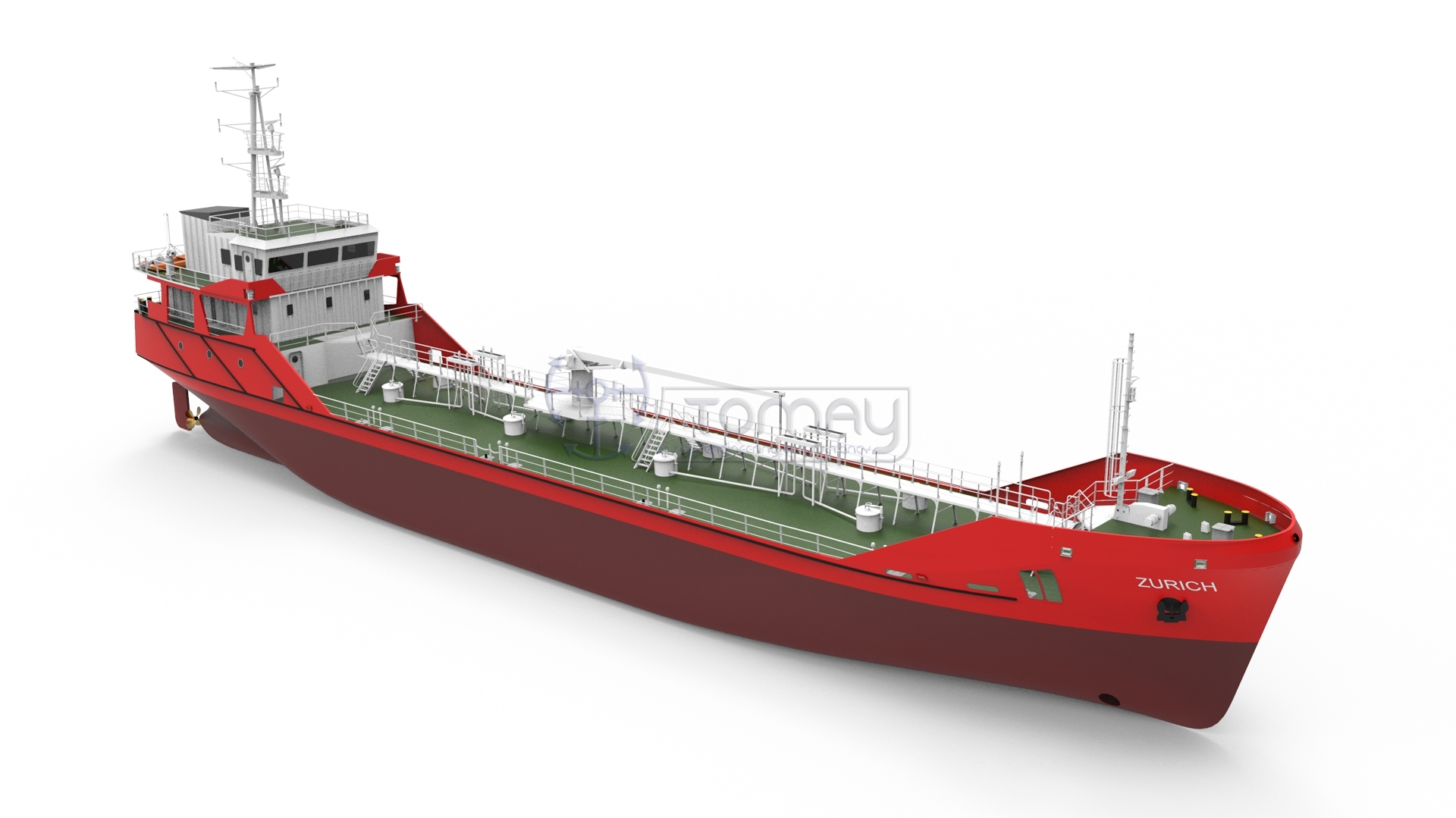

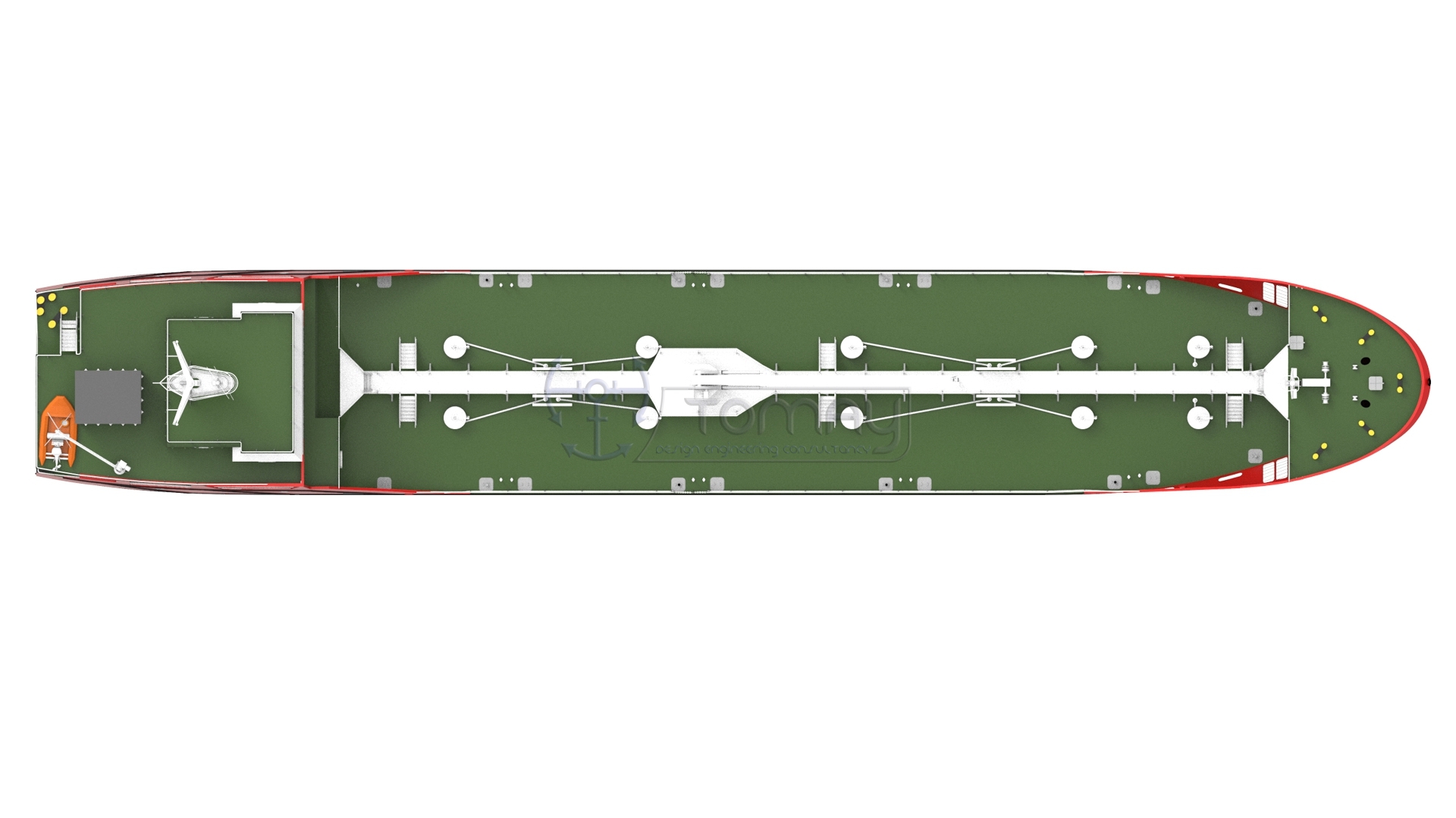

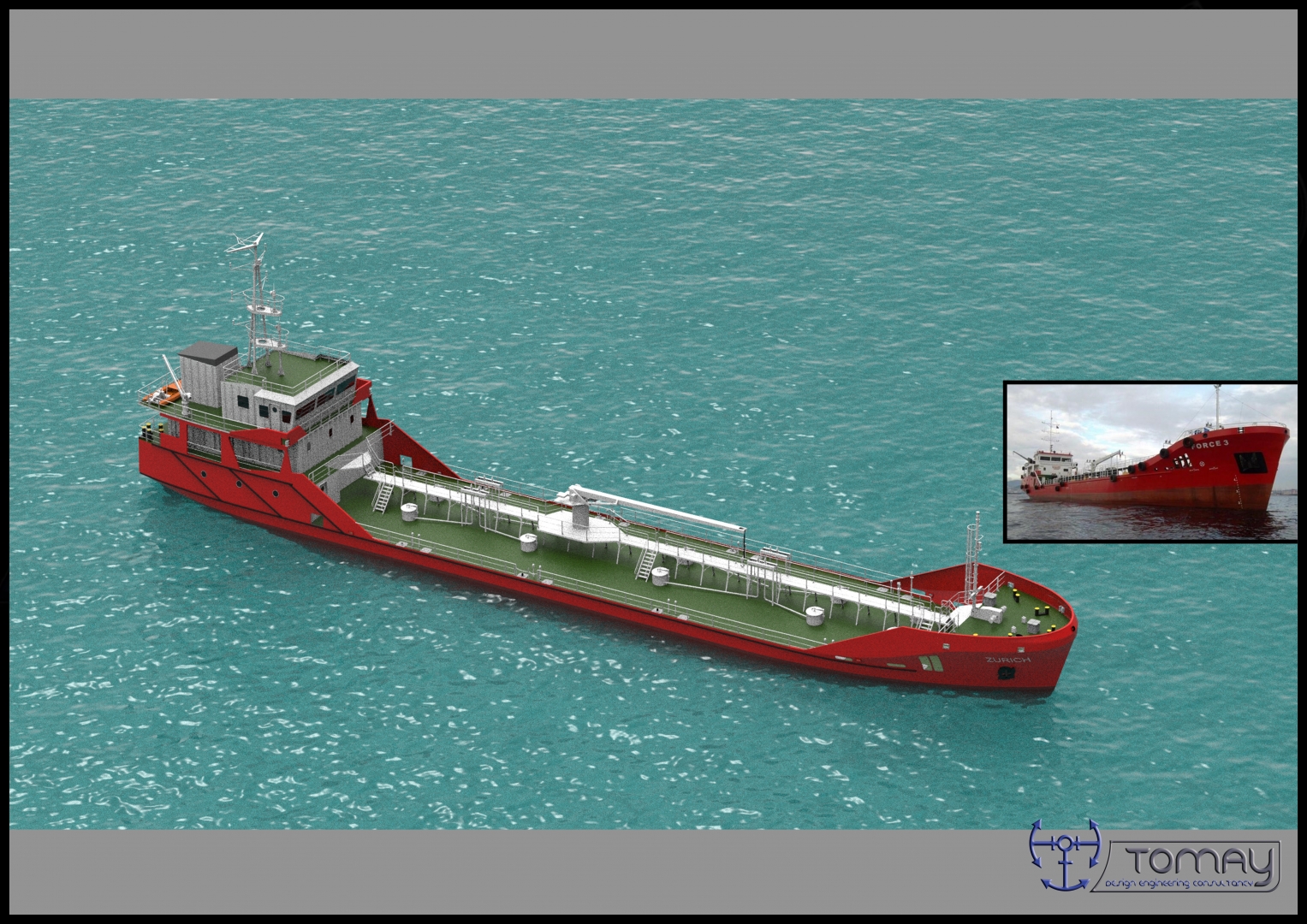

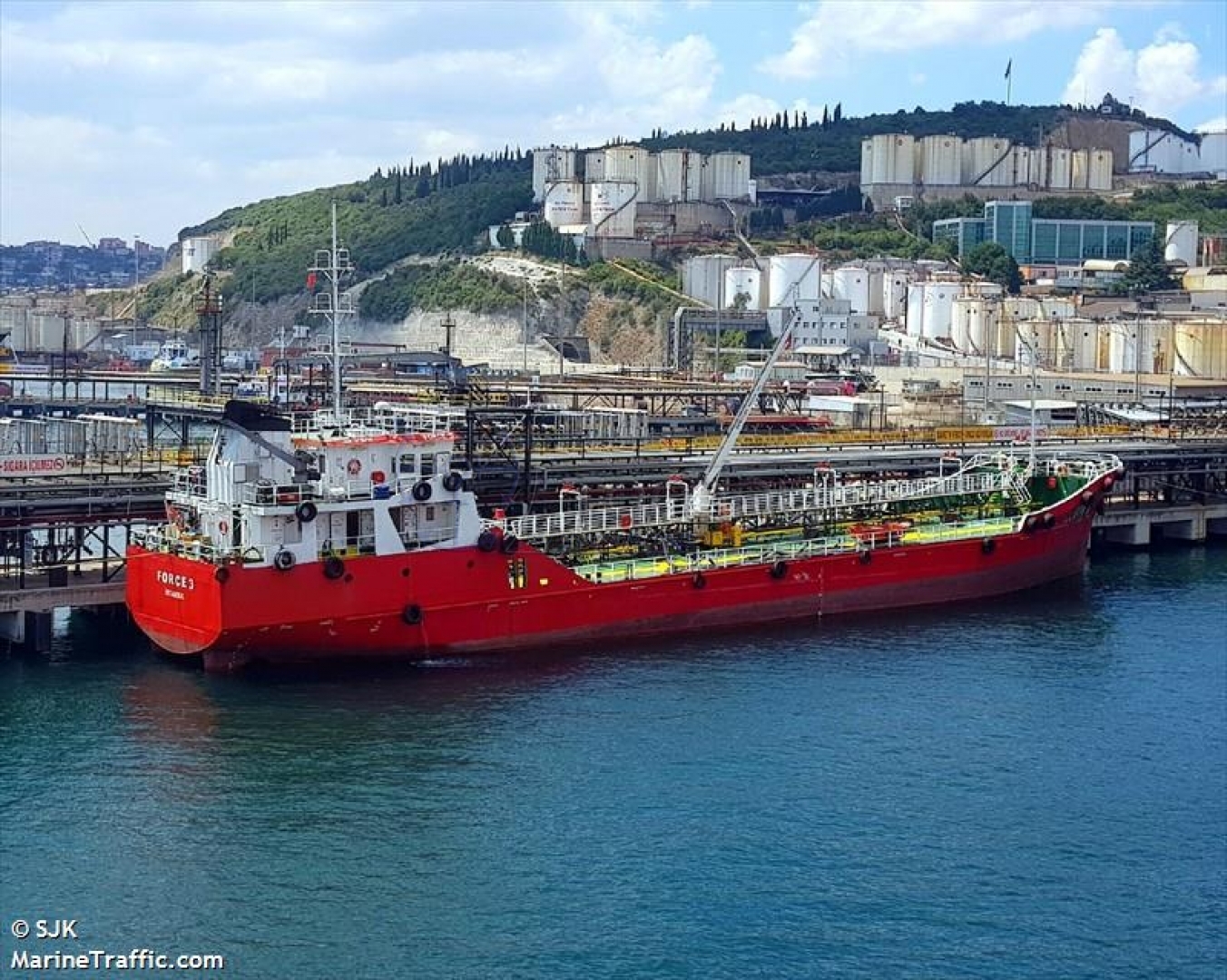

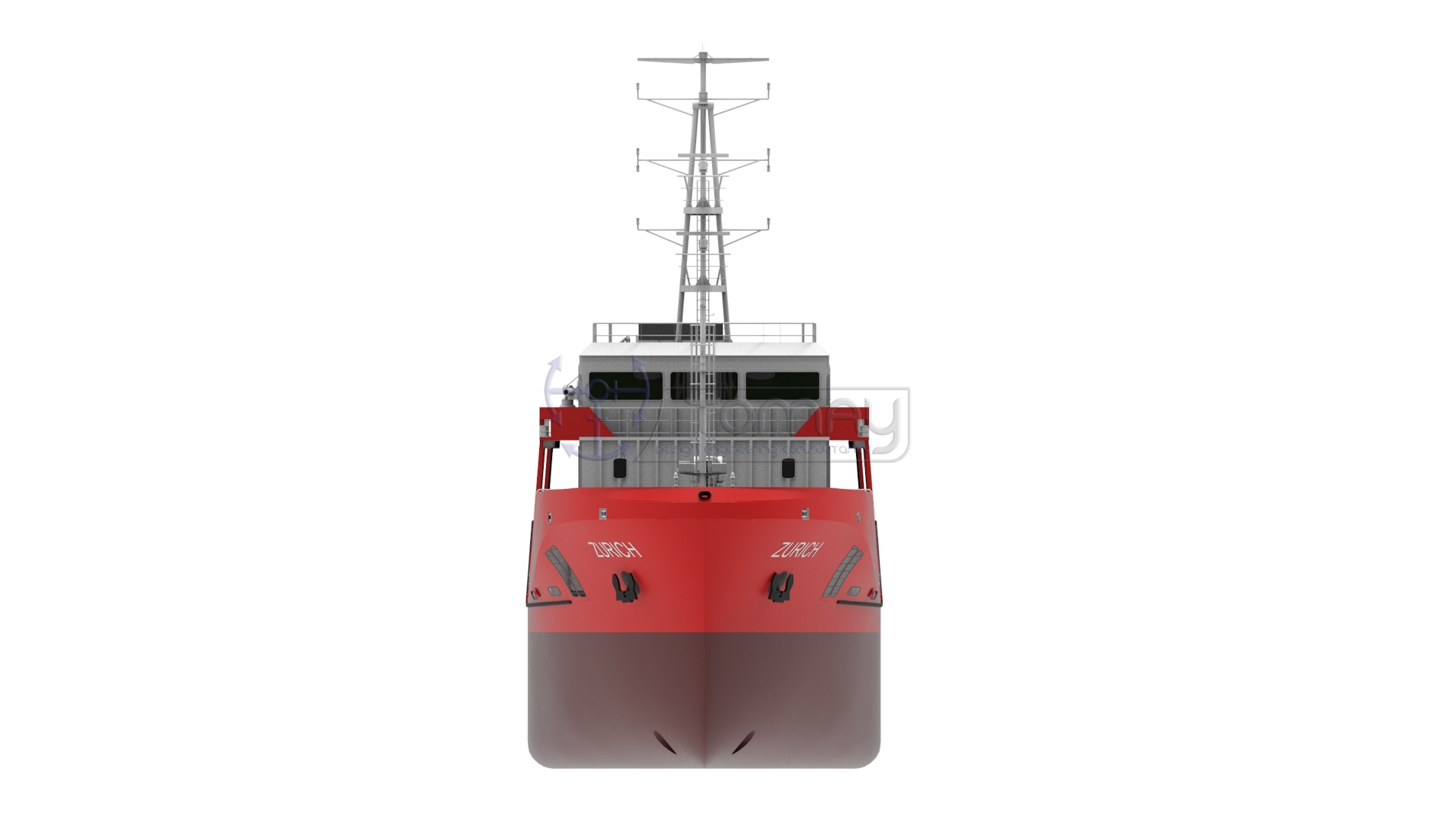

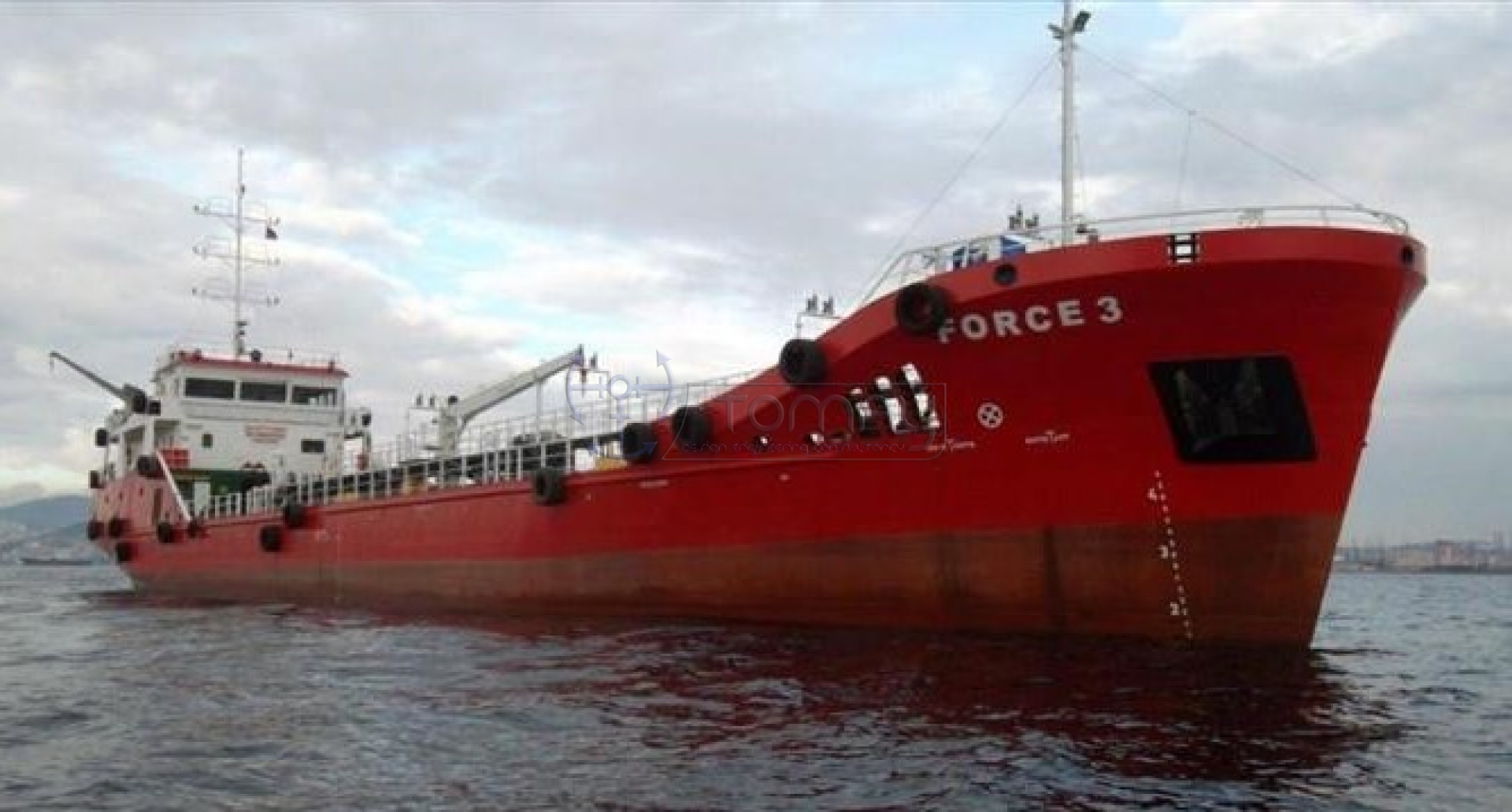

1650 DWT PRODUCT TANKER

  • ALL

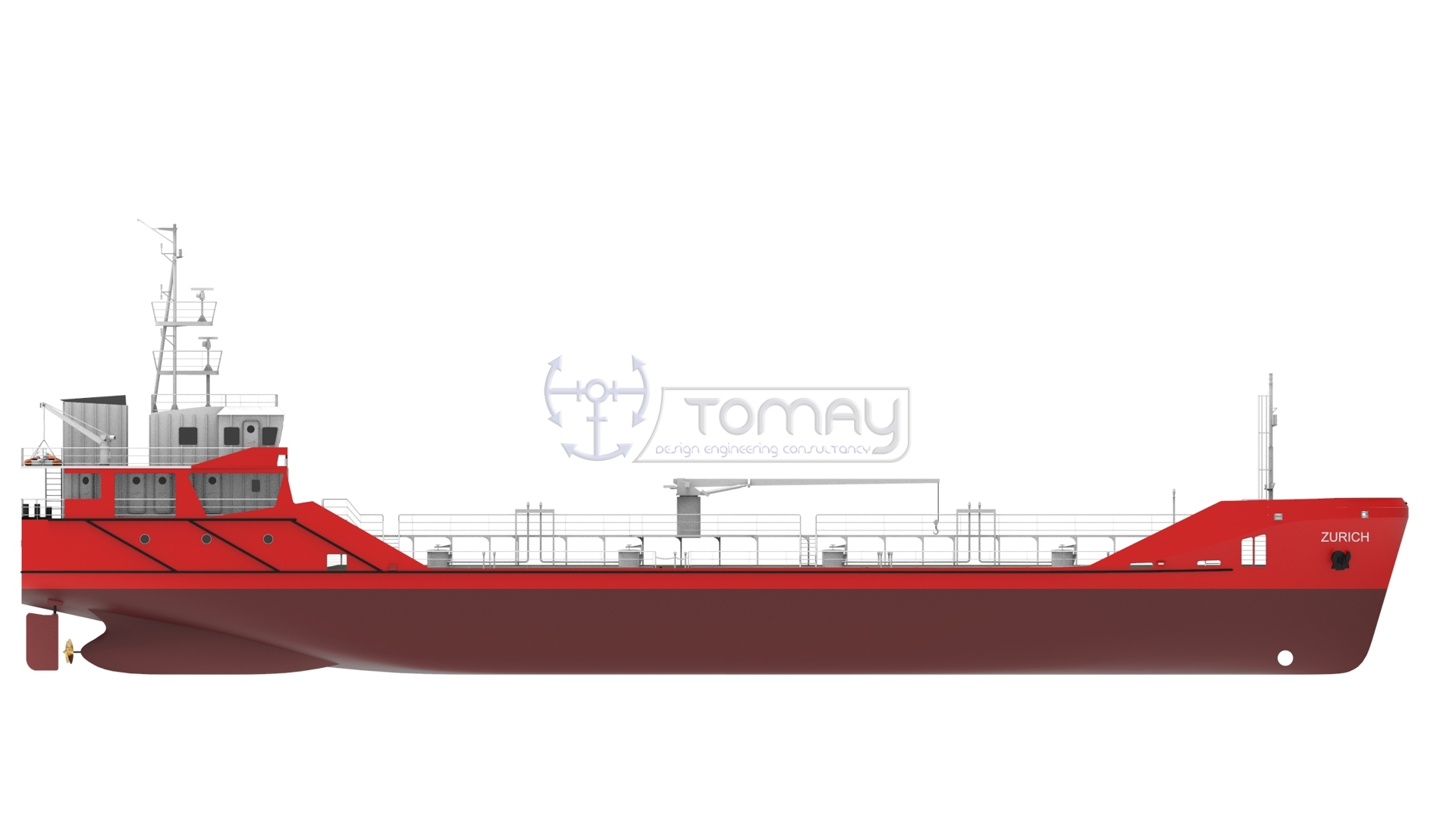

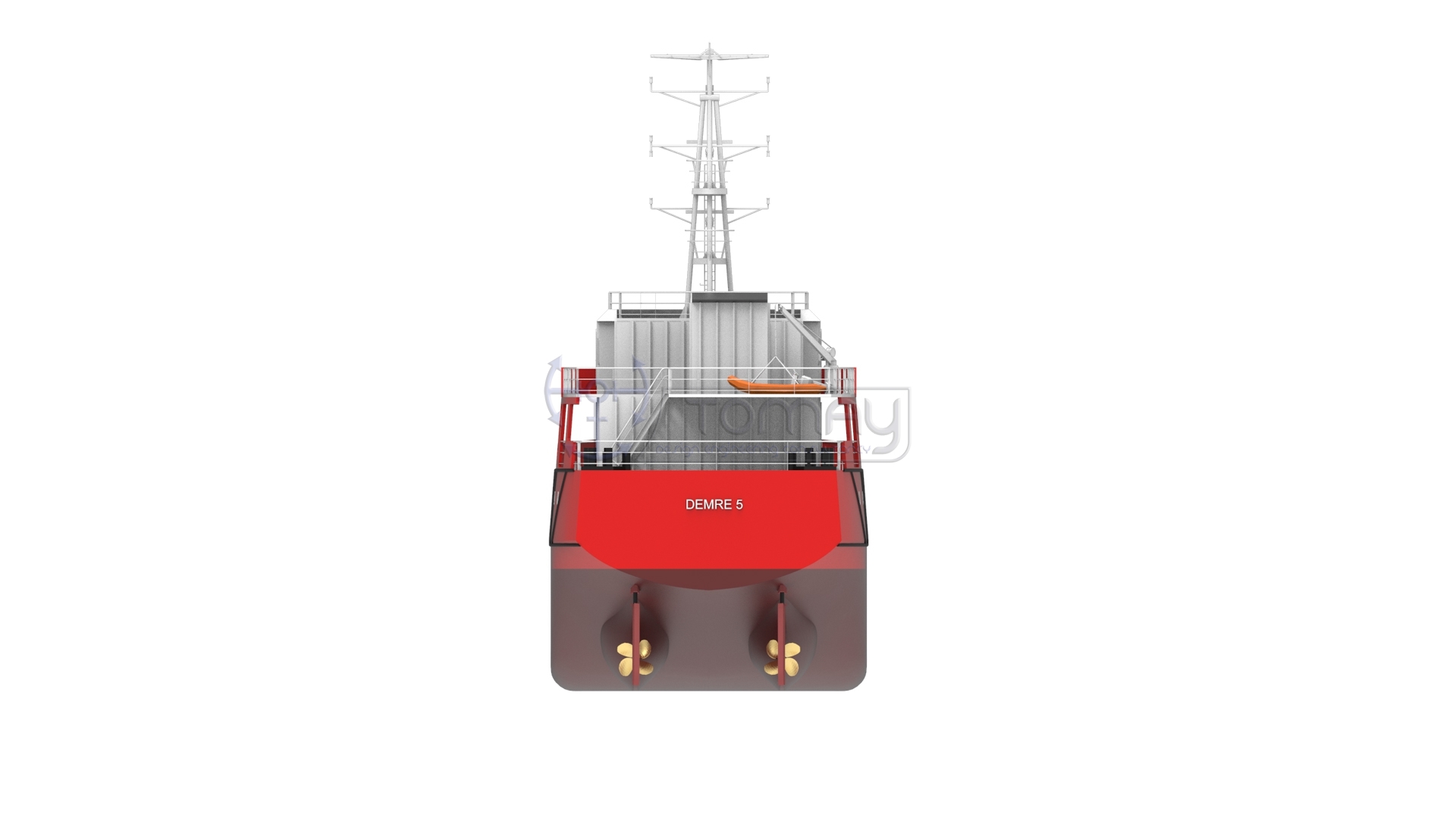

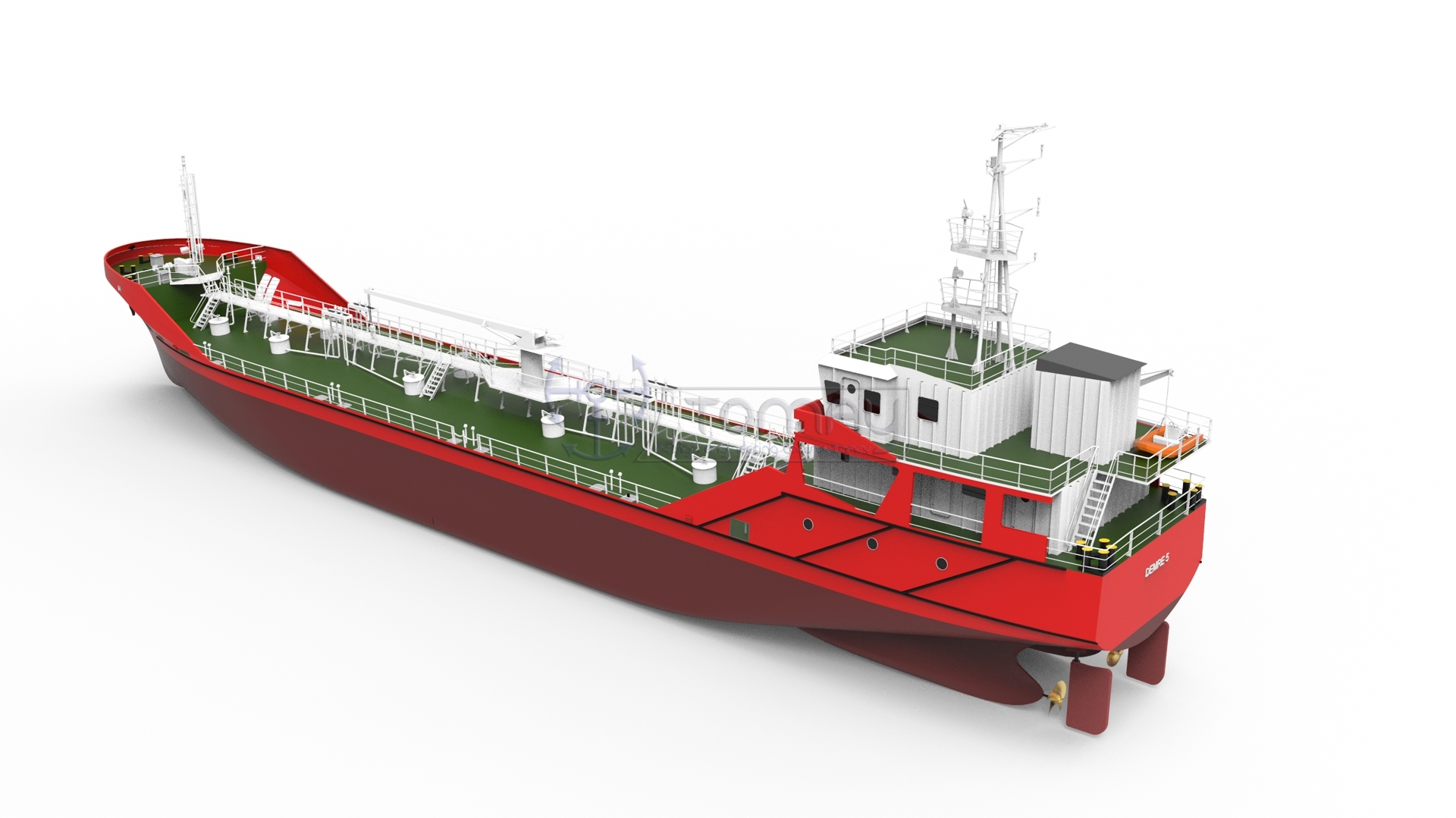

  • Render / Project Images

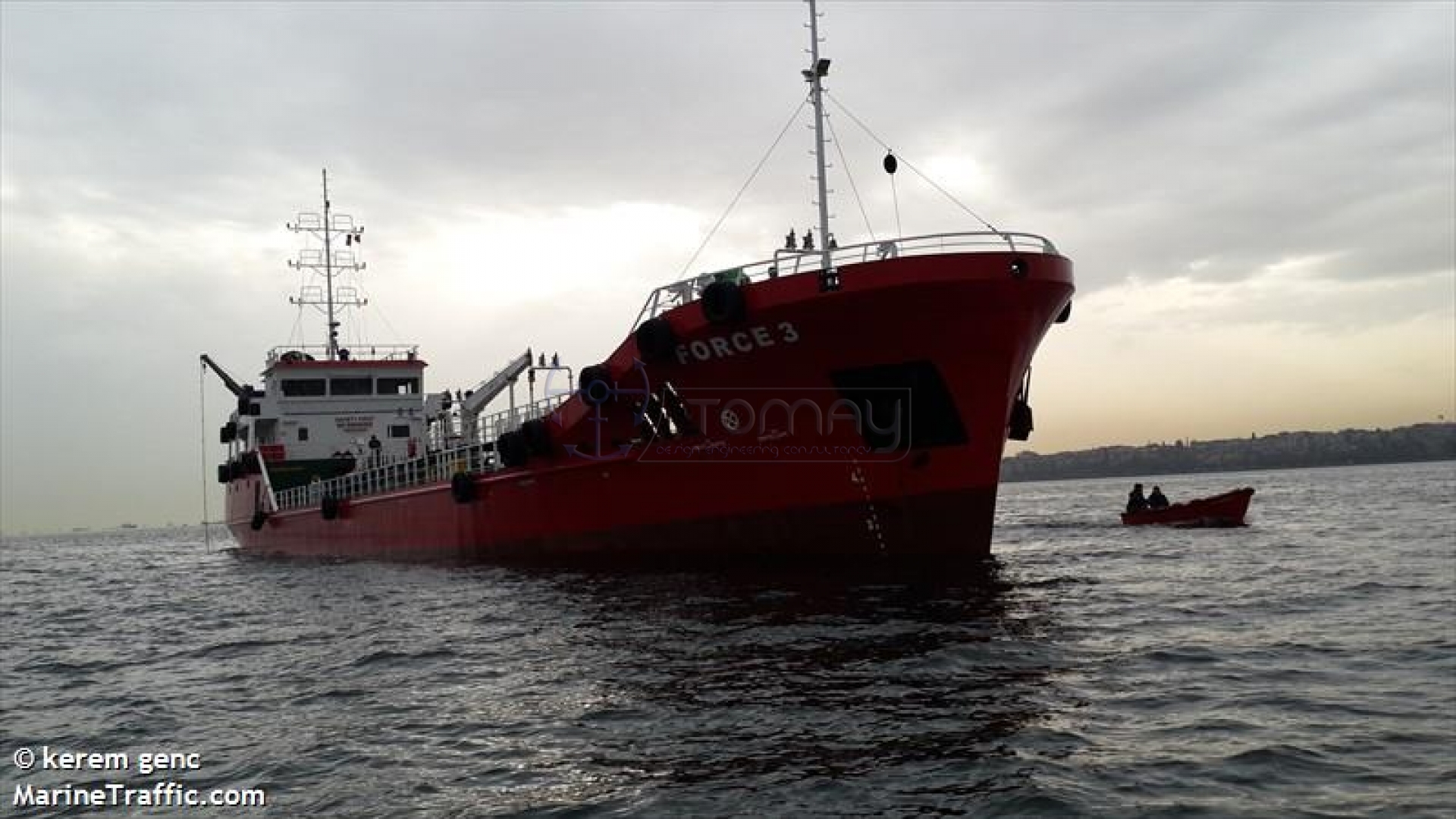

  • Detail Photos
