GENERAL INFORMATION

Basic Functions

Transportation of Oil Products

Class

BUREAU VERITAS

Notations

I + HULL + MACHINERY OIL TANKER,


ESP, Unrestricted Navigation,


Flash point above 60º, Alternate and

asymmetrical loadings are allowed at sea.


500>GRT (Not Covered by SOLAS Convention)



MAIN PARTICULARS

Lenght Overall

52.42 m

Length W.L.

51.28 m

Lenght P.P.

50.15 m

Breadth Moulded

9.50 m

Depth

4.00 m

Draught

2.90 m

Deadweight (Approx.)

800 t

Gross Ton

494

Cargo Tanks

10

Cargo Volume 100%

850 m3 (Approx.)

Speed

8.0 kts



TANK CAPACITIES

Cargo

844.44 m3

Ballast

429.38 m3

Diesel Oil

26.36 m3

Fresh Water

7.70 m3

Sewage

0.31 m3

Overflow

1.38 m3

Bilge

5.93 m3

Sludge

5.93 m3

PROPULSION SYSTEM

Main Engines

2 x Yanmar 6HYM-WET

Total Power

368 kW @ 1950 rpm

Propeller

2 x Fixed Pitch / 4 Blades



AUXILIARY ENGINES

Generator (Main)

2 x Perkins 6TWGM 125 kW

(Harbour)

1 x Lister 24 kW



ACCOMMODATION

For 7 persons, cabins are insulated and finished with durable linings, isolated wheelhouse, floating floors and air-conditioned rooms. The The Captain’s cabin, 3 double crew cabins, galley, mess room and sanitary facilities.



REFERENCES

Owner

İSTANBUL TERSANECİLİK VE

 DENİZCİLİK SAN.TİC.LTD.STİ

Shipyard

İSTANBUL TERSANECİLİK VE

 DENİZCİLİK SAN.TİC.LTD.STİ

Hull Number

• NB-15  • NB-28  • NB-29

PT-12

800 DWT OIL PRODUCT TANKER

  • ALL

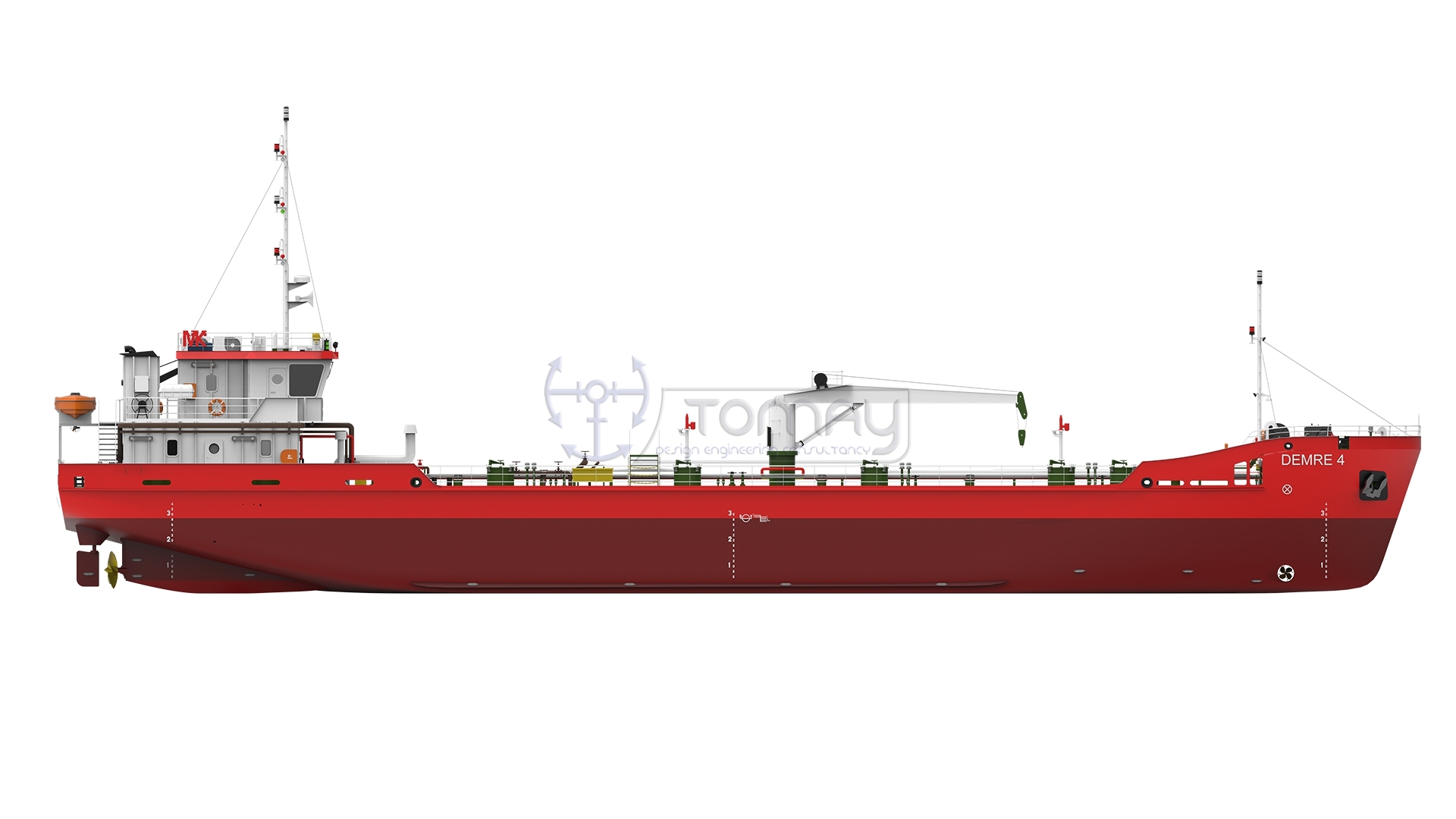

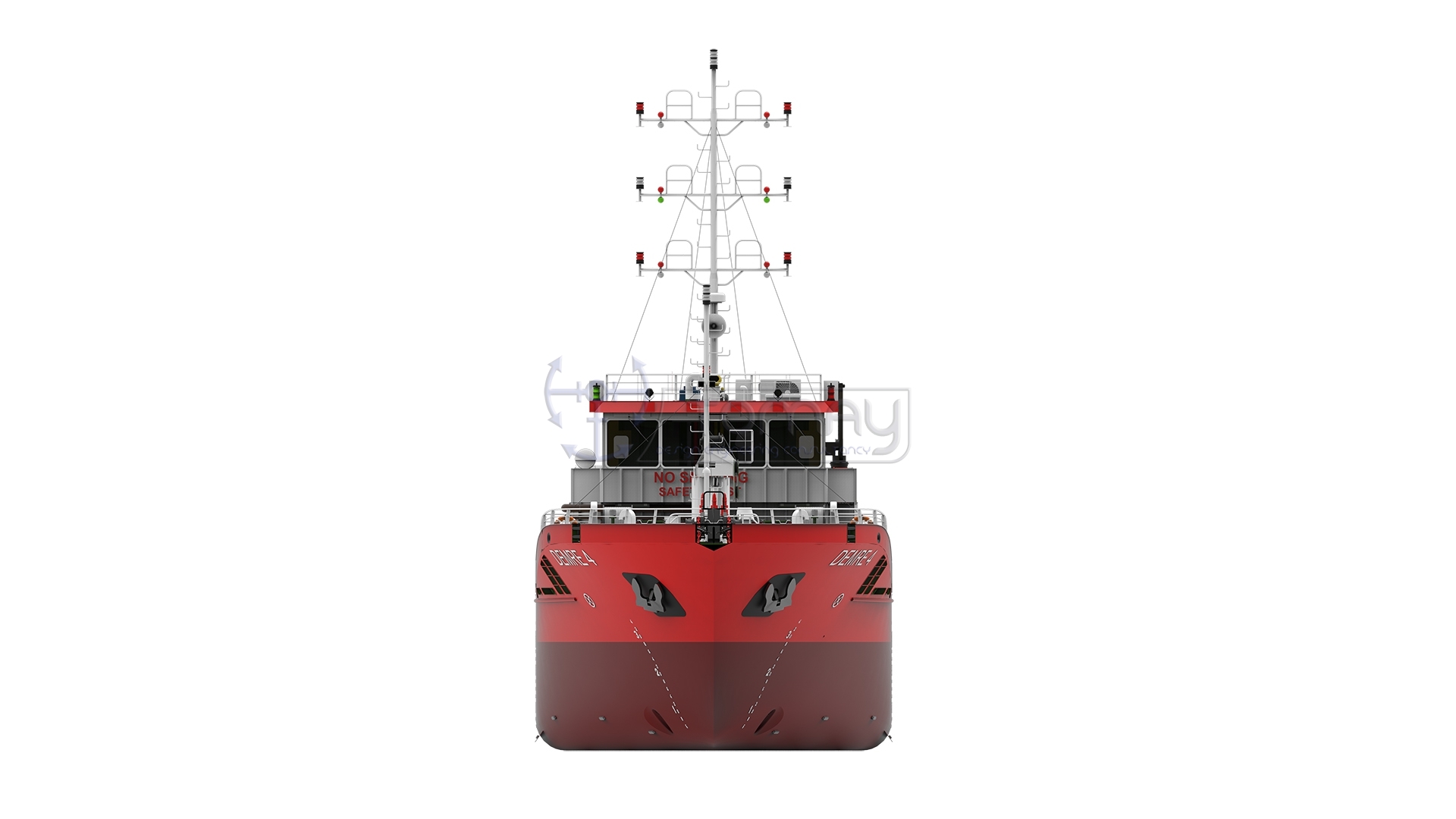

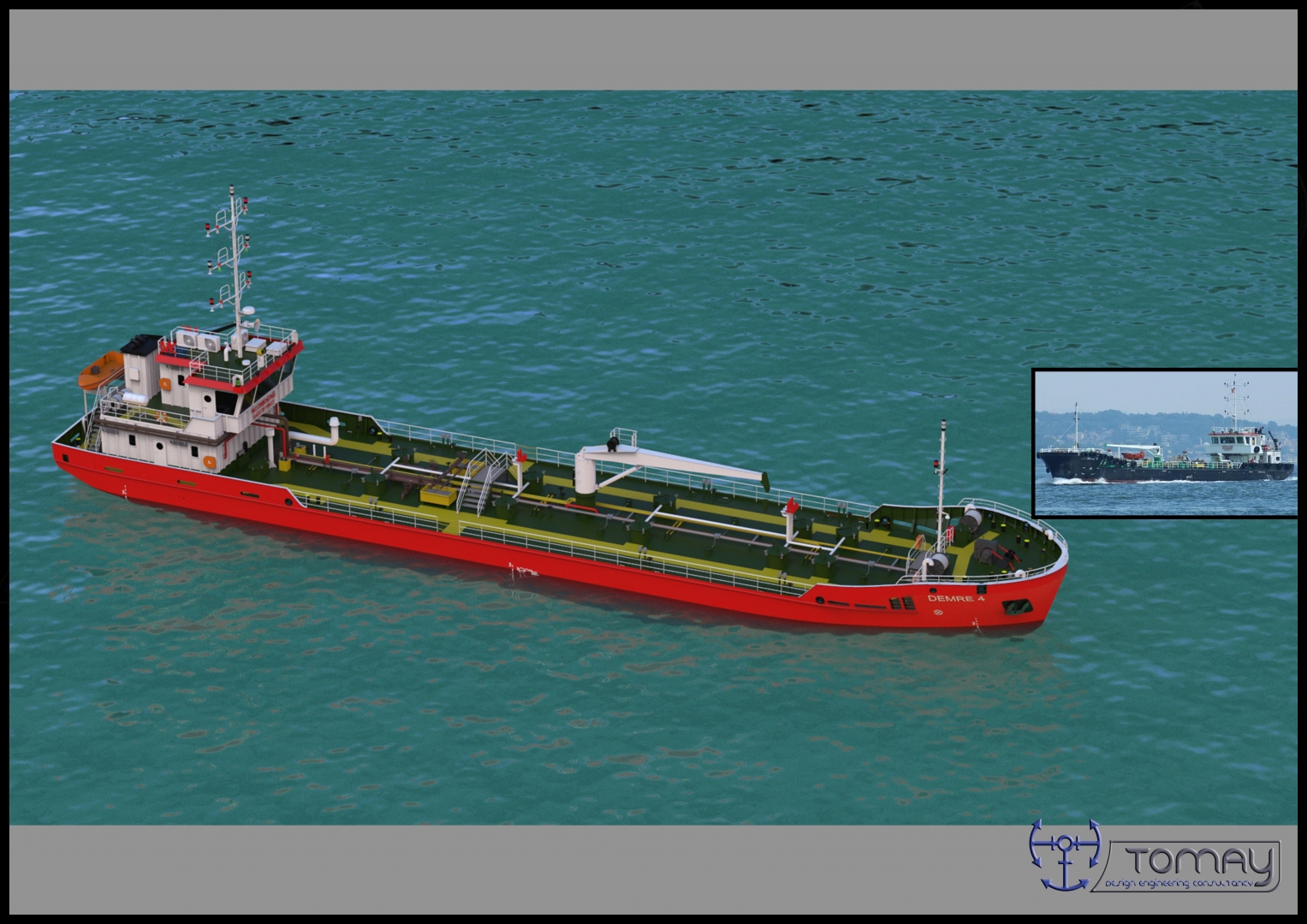

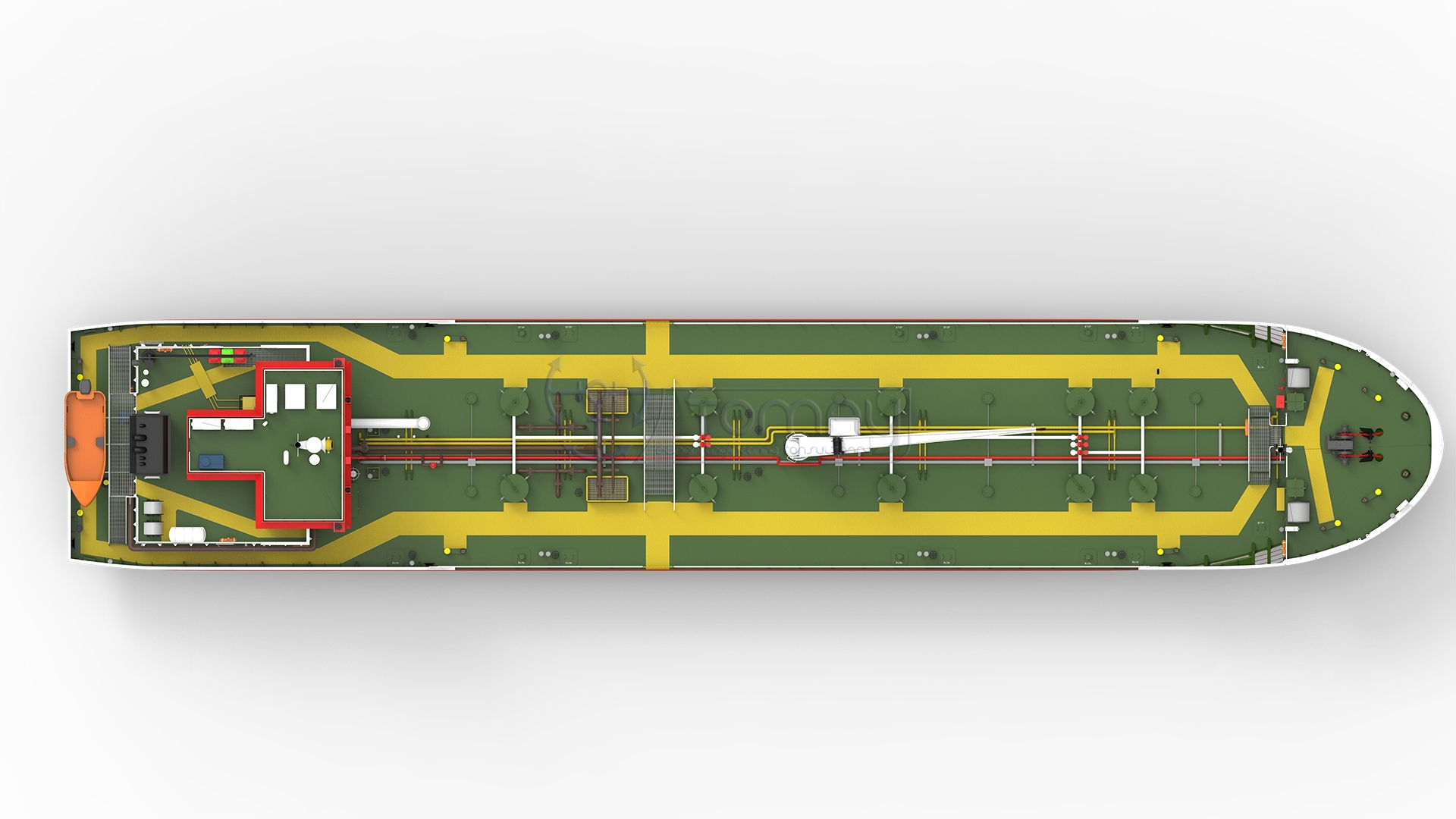

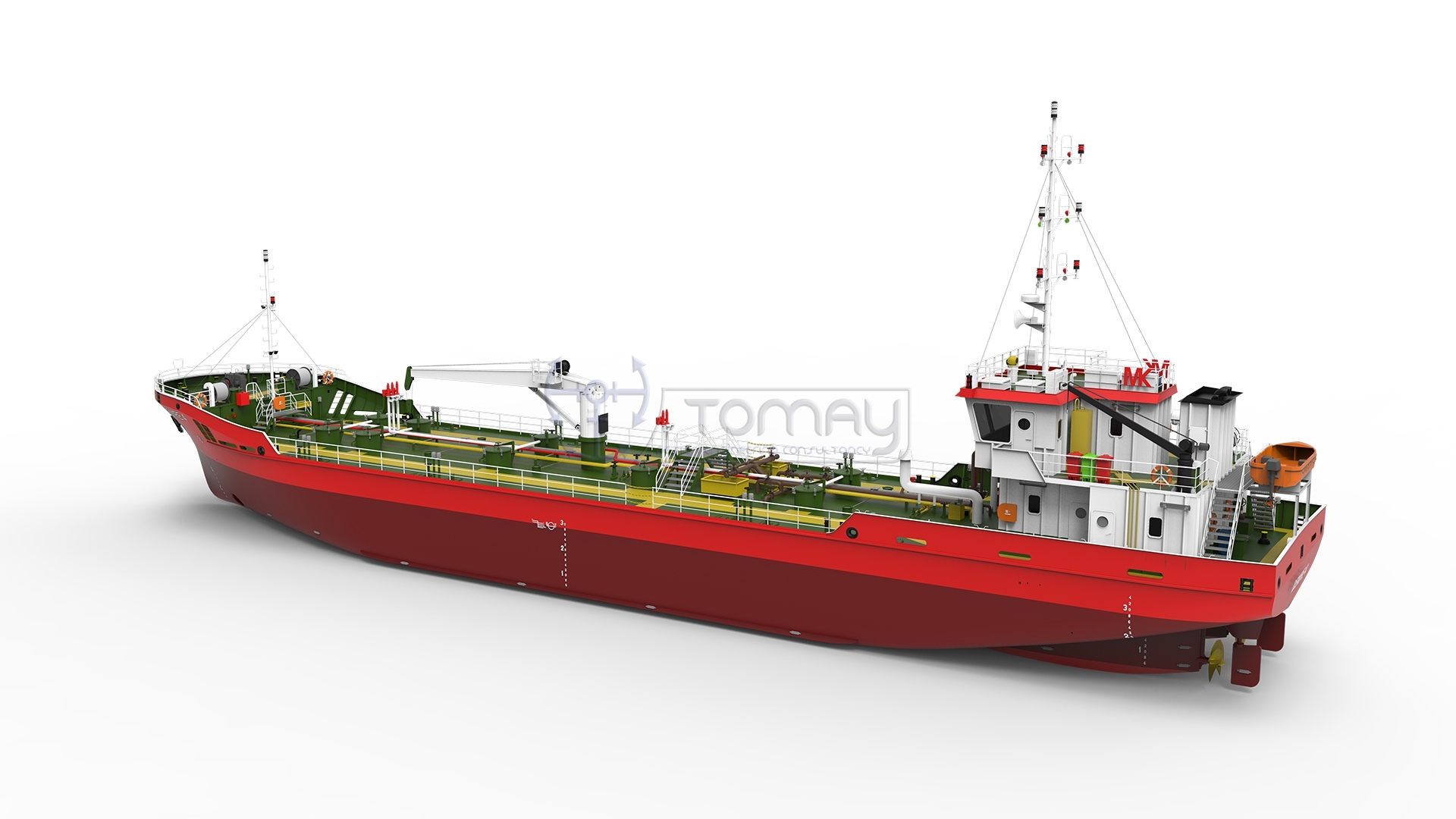

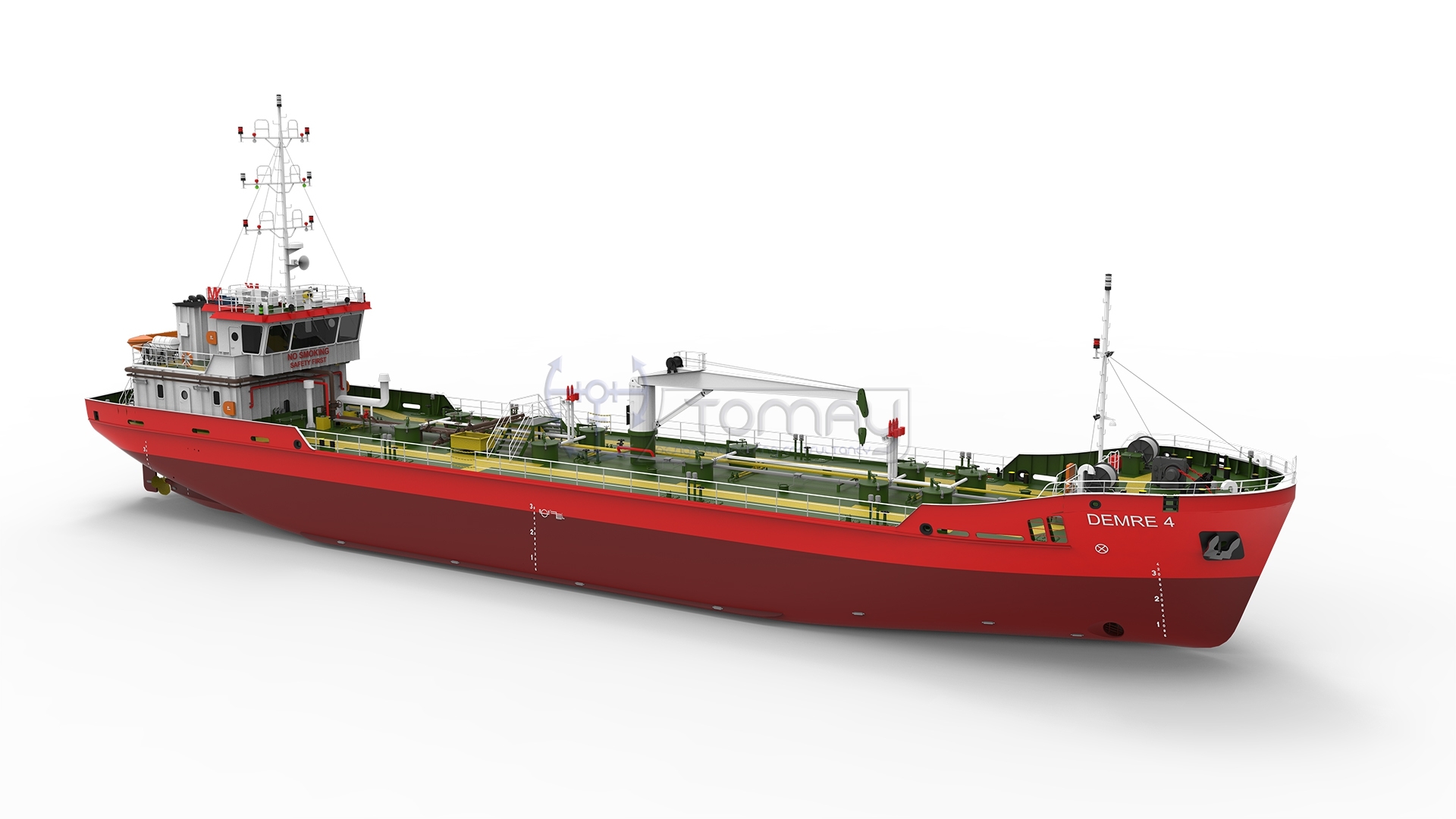

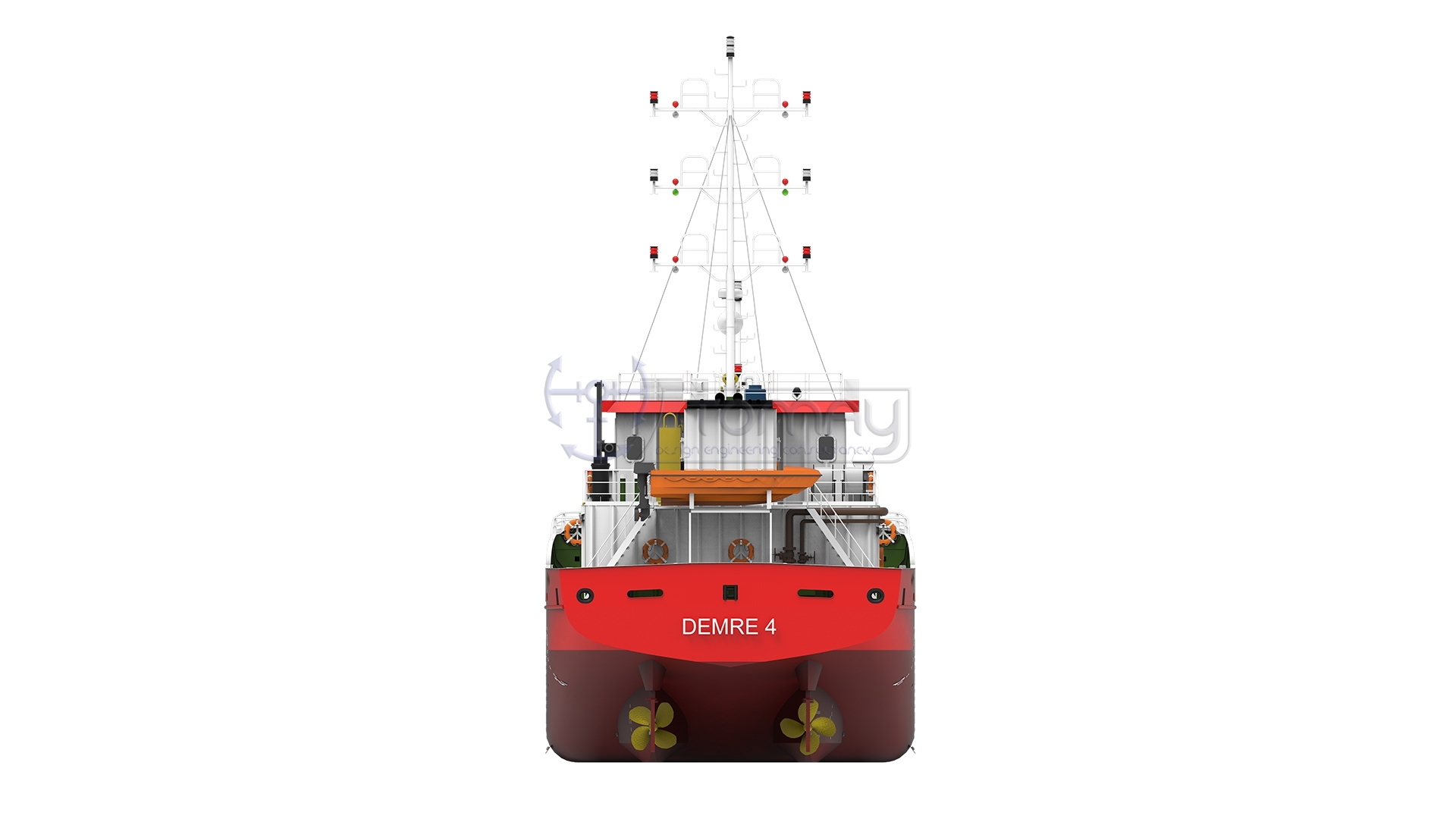

  • Render / Project Images

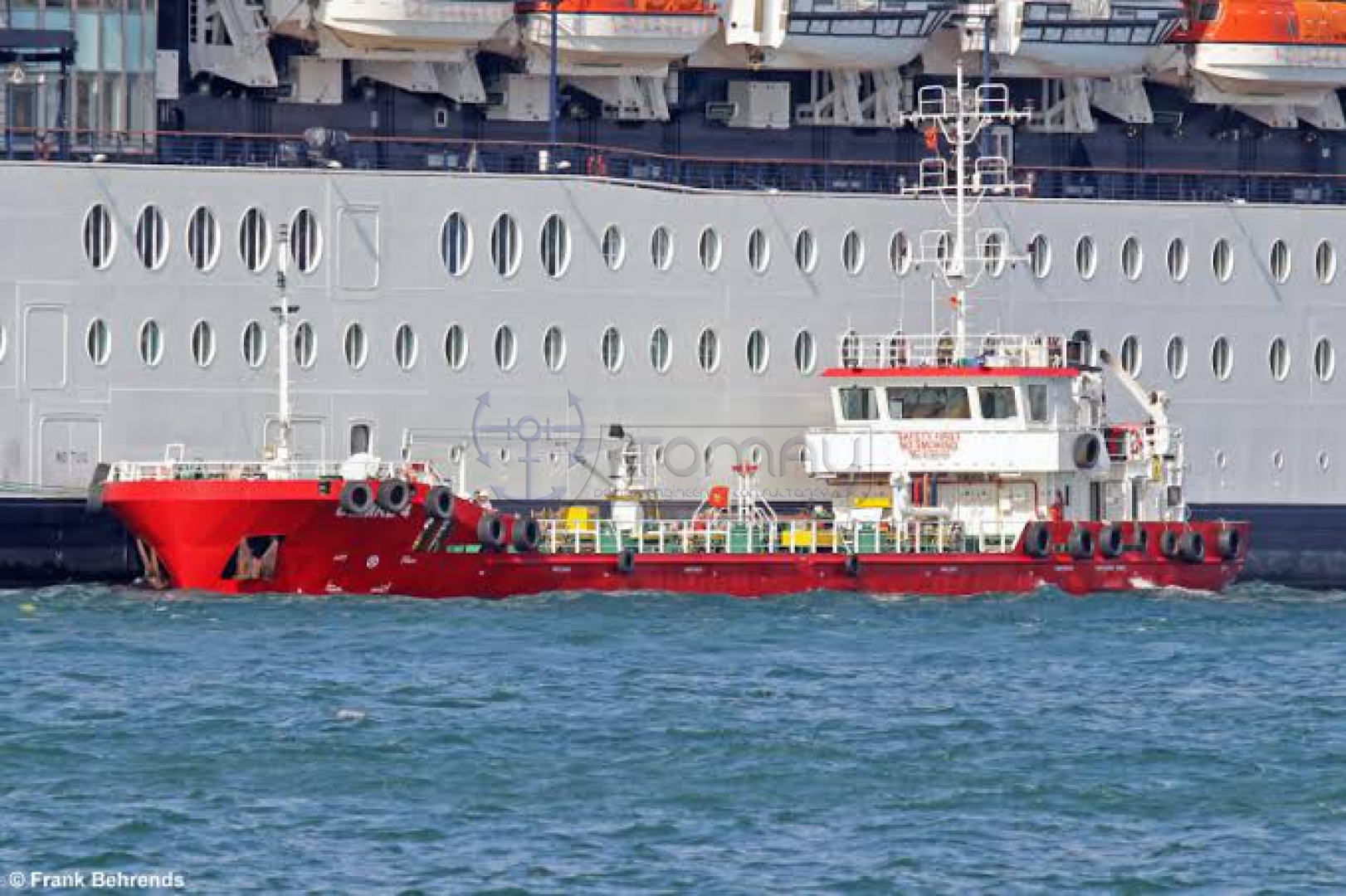

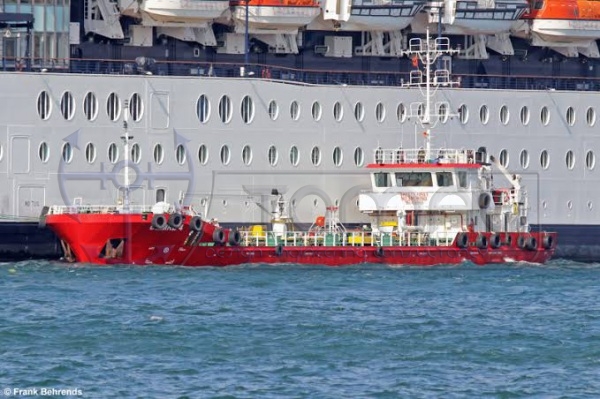

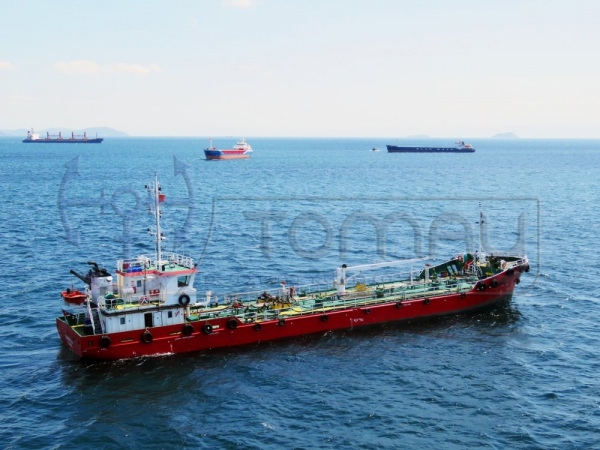

  • Detail Photos
