GENERAL INFORMATION

Basic Functions

Transportation of Oil Products

Class

BUREAU VERITAS

Notations

I X HULL, X MACHINERY, OIL TANKER ESP,

UNRESTRICTED NAVIGATION, FLASH POINTABOVE 60oC

Alternate and asymmetrical loadings are allowed at sea.

500>GRT (Not covered by SOLAS Convention)



MAIN PARTICULARS

Length Overall

48.770 m

Length W.L.

47.970 m

Length P.P.

46.834 m

Breadth Moulded

9.500 m

Depth

4.000 m

Draught (Design)

2.900 m

Deadweight

800 t (abt.)

Gross Ton

498

Speed

8.0 kts

Cargo Volume 100%

802 m3 (abt.)



TANK CAPACITIES

Cargo

827.16 m3

Ballast

433.17 m3

Diesel Oil

44.94 m3

Fresh Water

9.66 m3

Overflow

3.03 m3

Bilge

3.54 m3

Sludge

1.56 m3

Sewage

4.11 m3

PROPULSION SYSTEM

Main Engines

1 x YANMAR – 6HYM-WET

Total Power

1 x 610 kW @1900 rpm

Propeller

1 x Fixed Pitch / 4 Blades



AUXILIARY ENGINES

Generator (Main)



Total Power

2 X 125.5 kW



ACCOMMODATION

For 5 persons, cabins are insulated and finished with durable

linings, isolated wheelhouse, floating floors and air-conditioned

rooms. The Captain’s cabin, Chief Engineer’s cabin, 3 crew cabins,

galley, mess room and sanitary facilities.





REFERENCES

Owner

SEMNUR DENİZCİLİK

Shipyard

İSTANBUL TERSANECİLİK VE DENİZCİLİK SAN. TİC. LTD. ŞTİ.

Hull Number

NB-12

PT-05

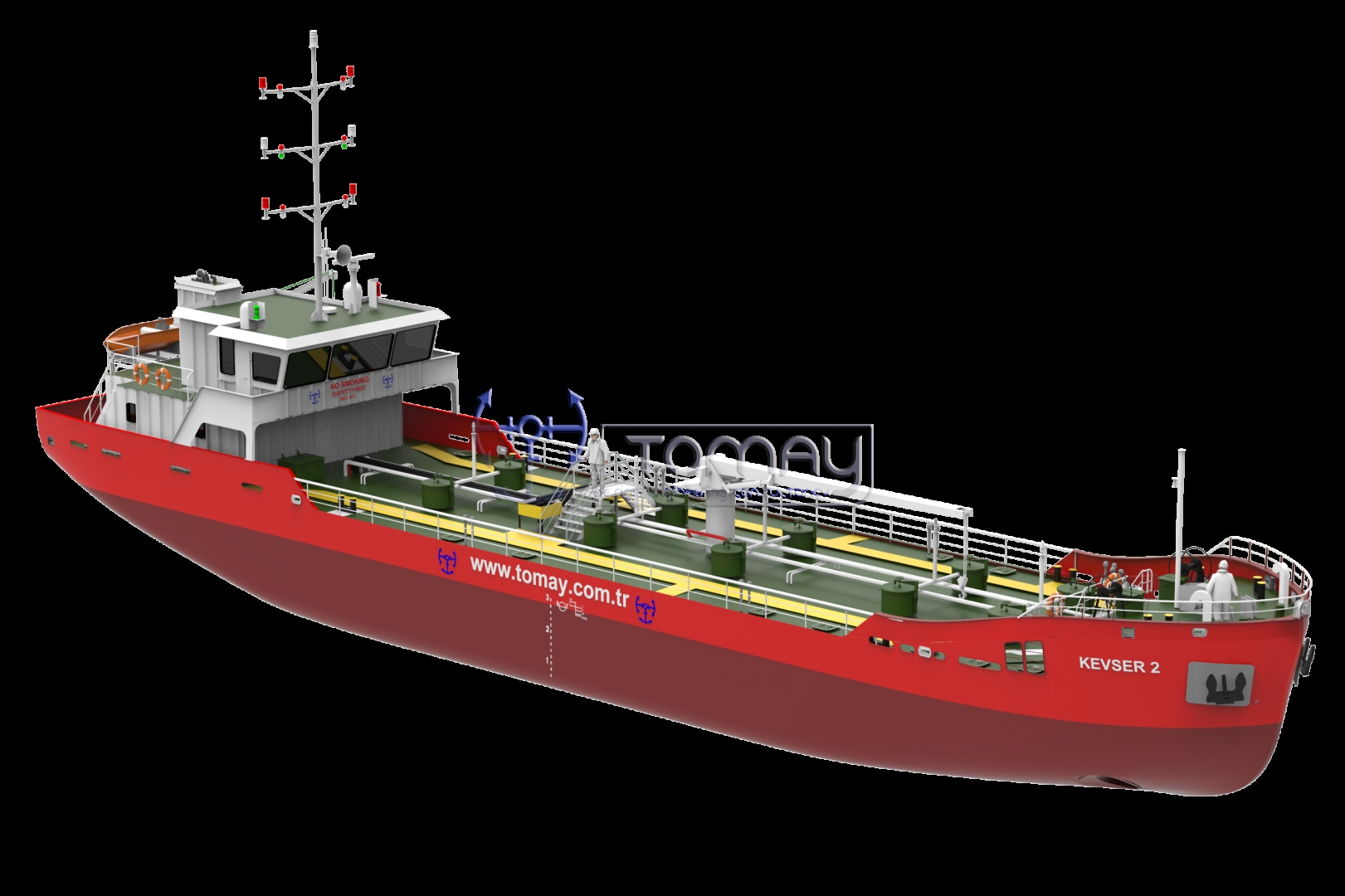

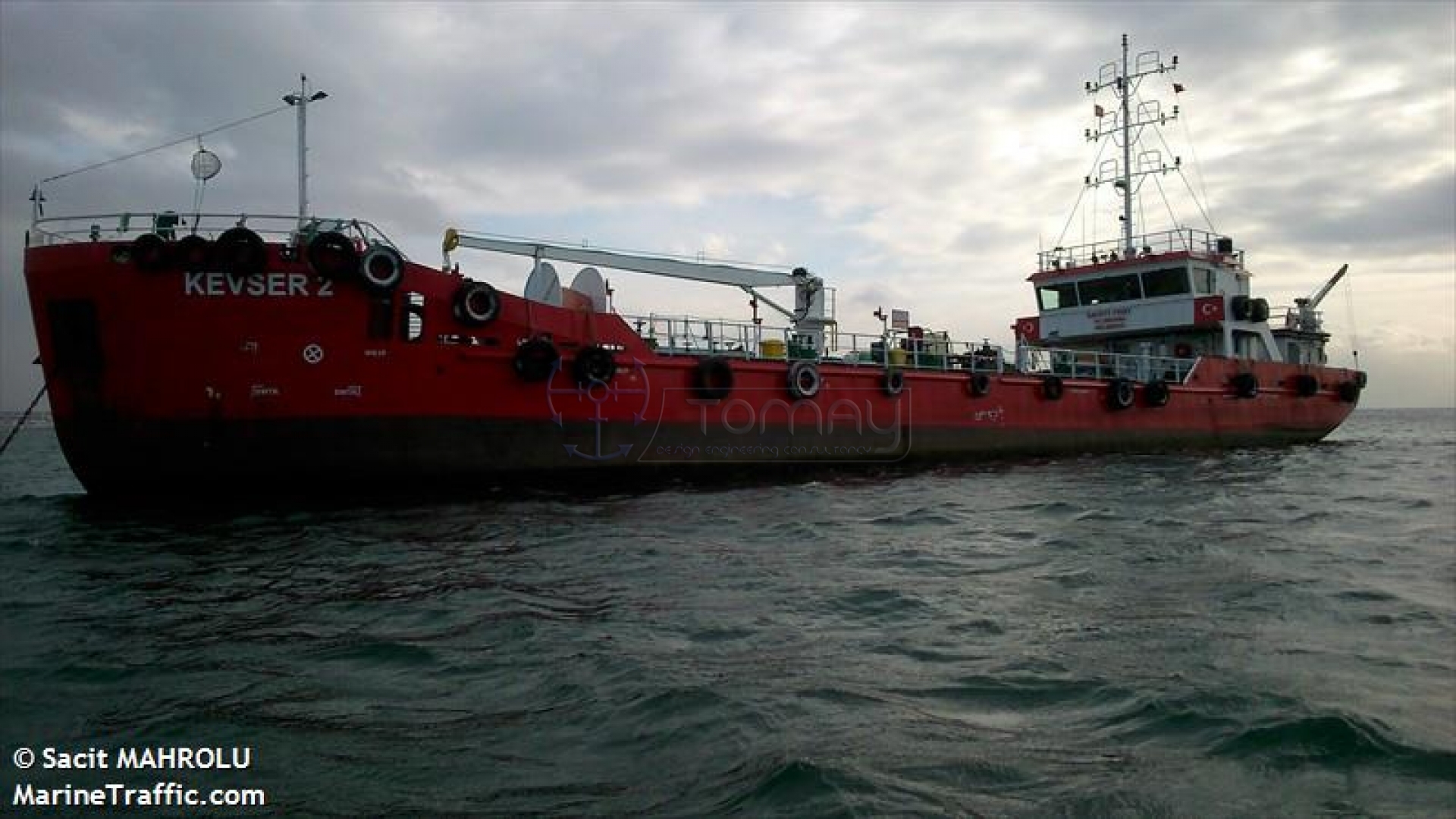

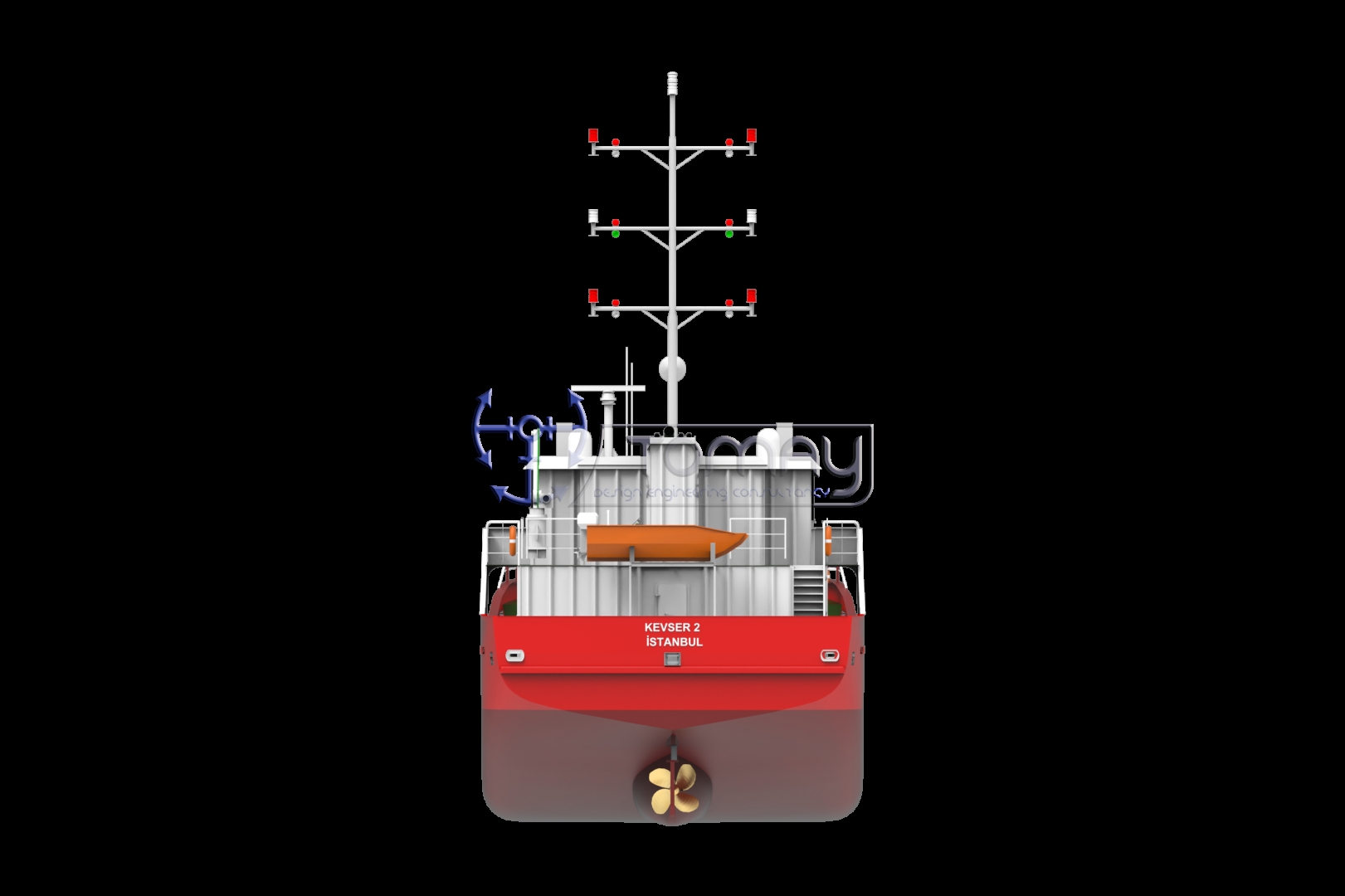

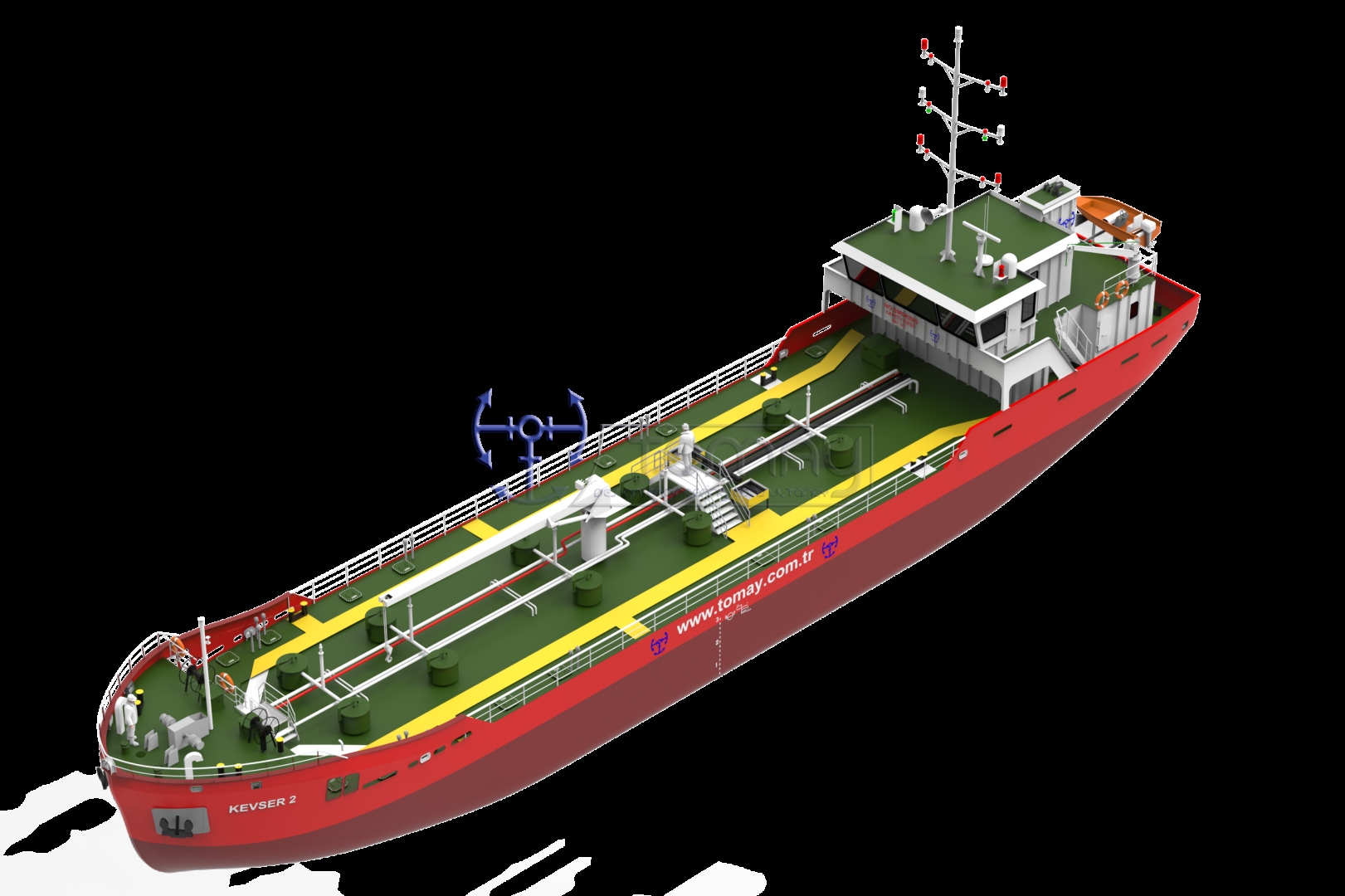

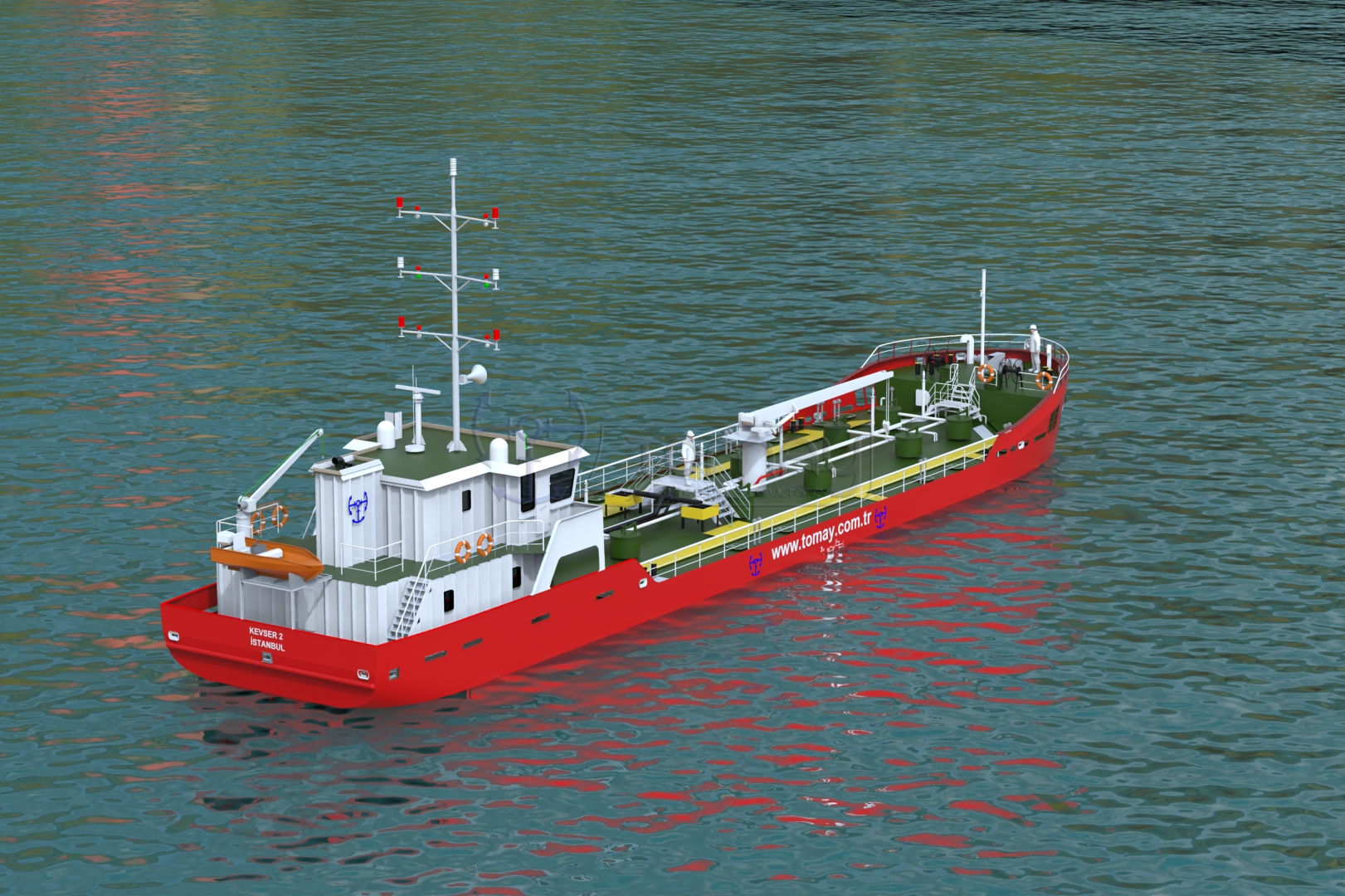

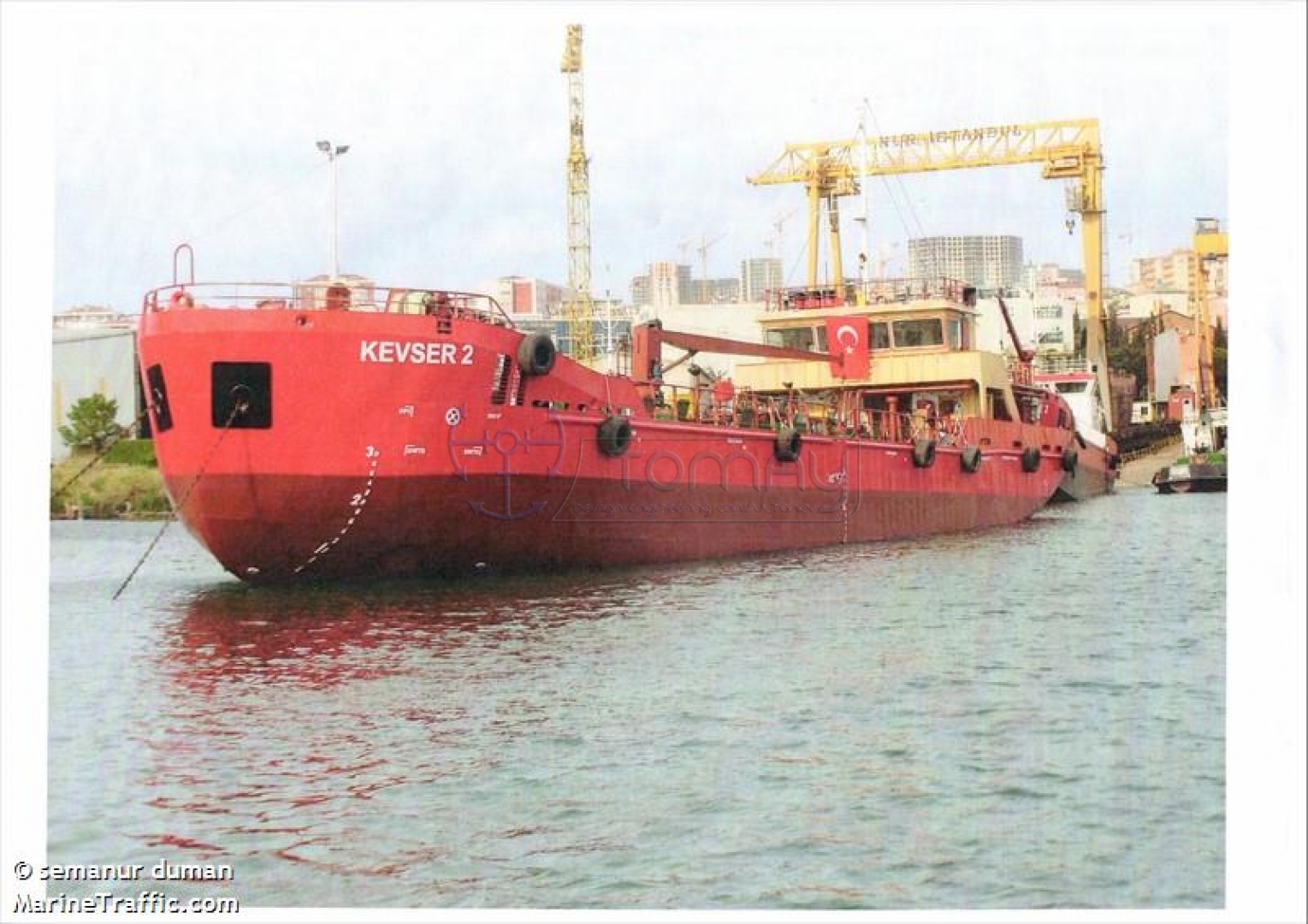

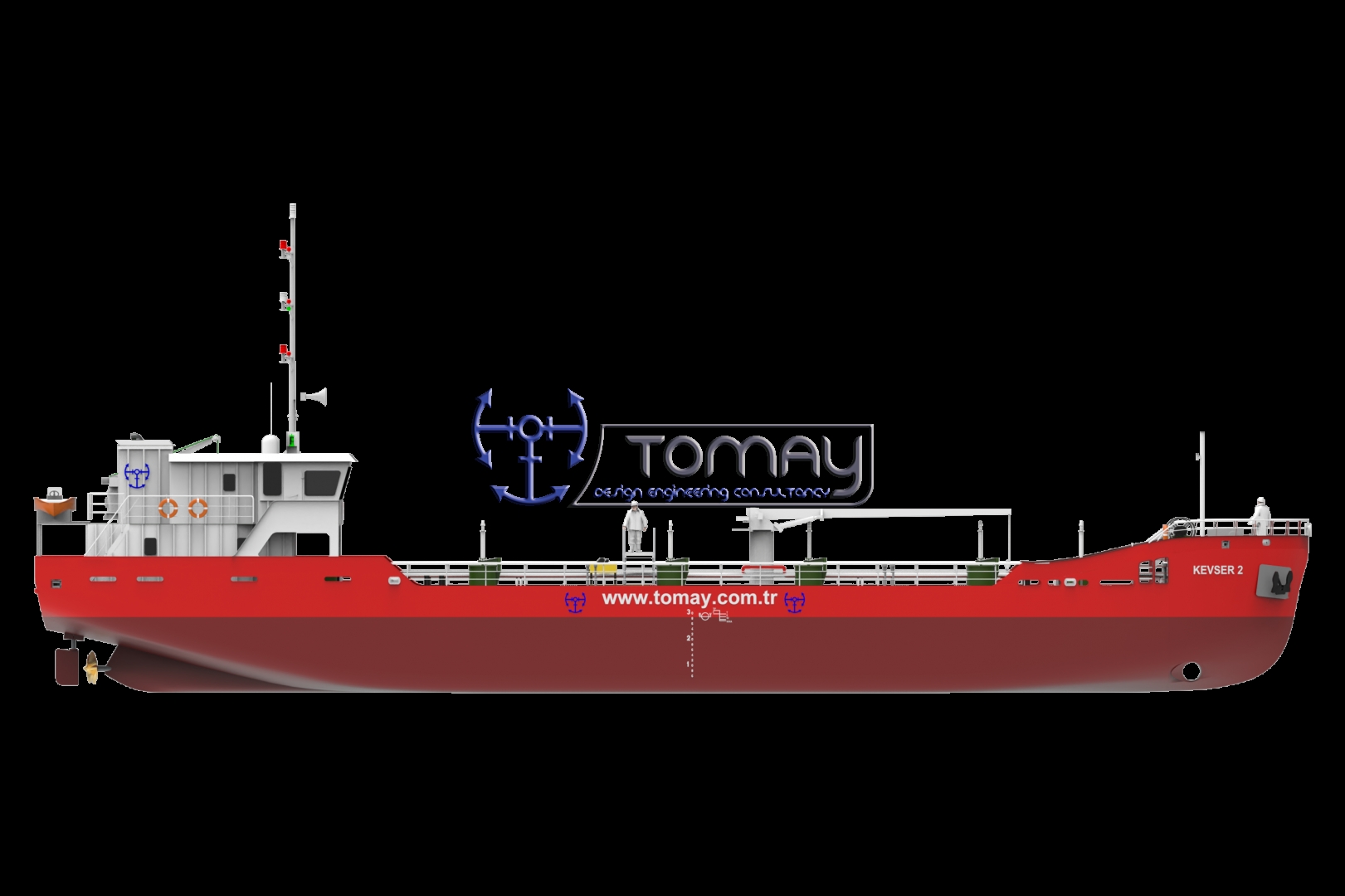

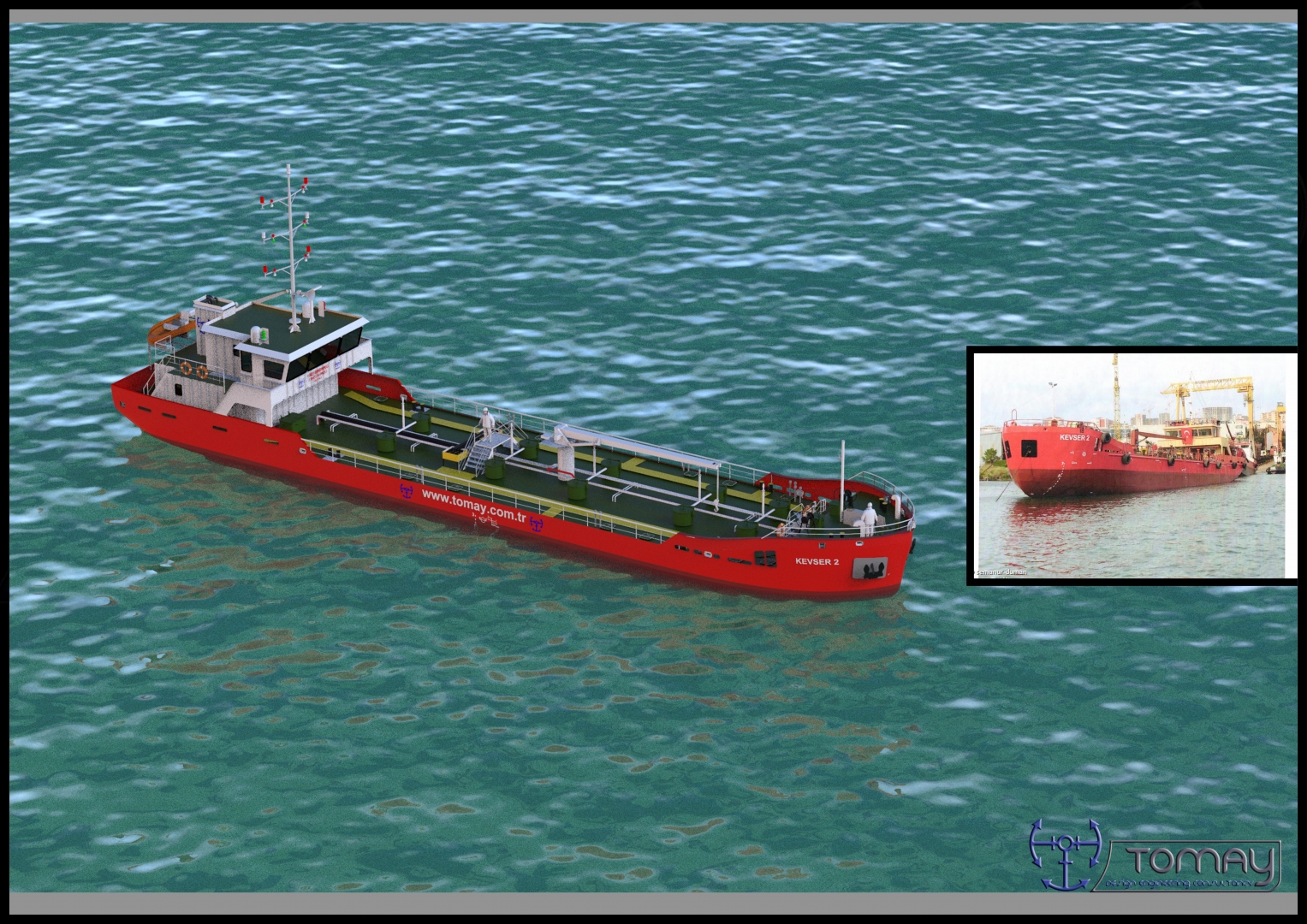

800 DWT PRODUCT TANKER

  • ALL

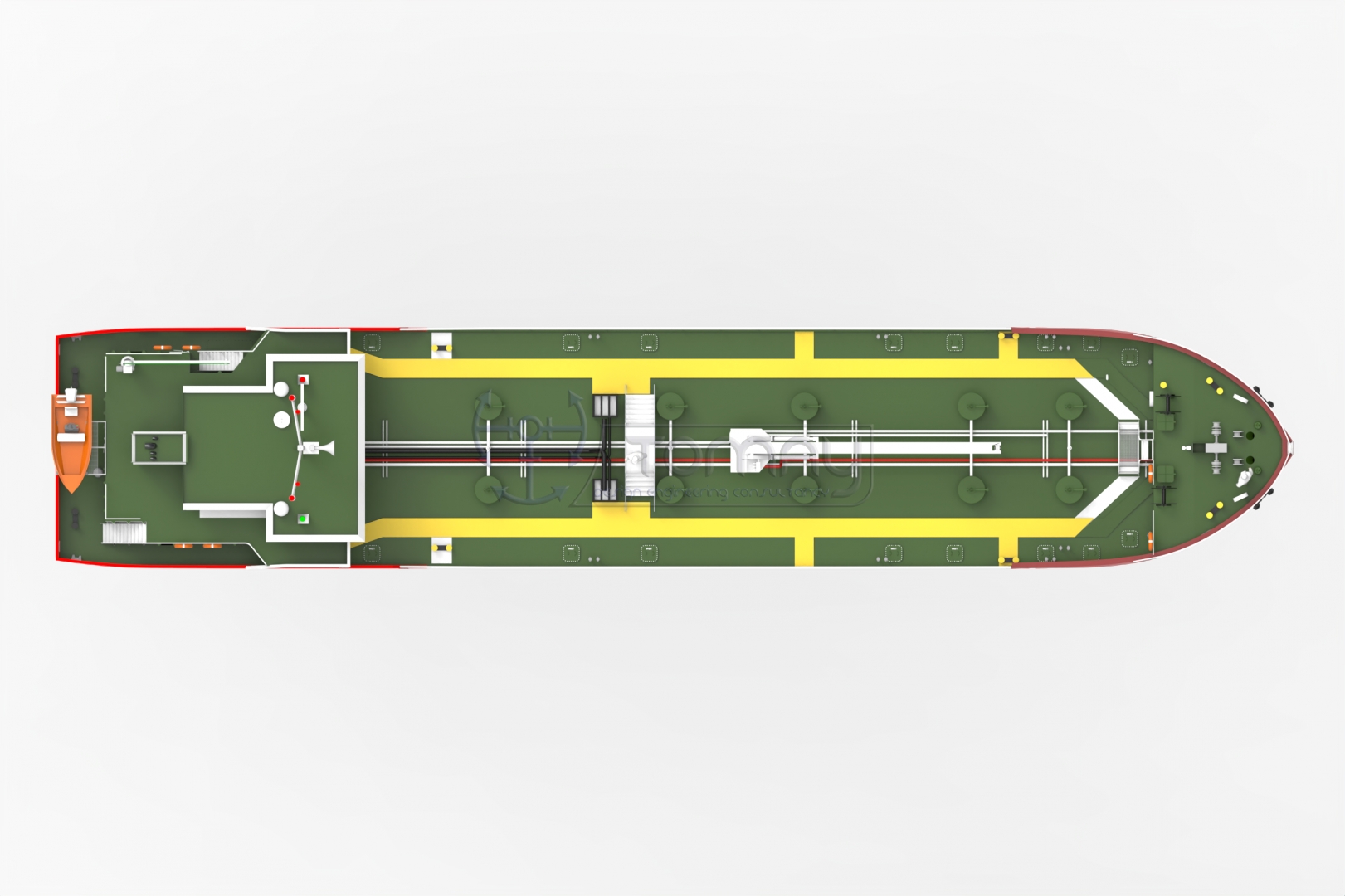

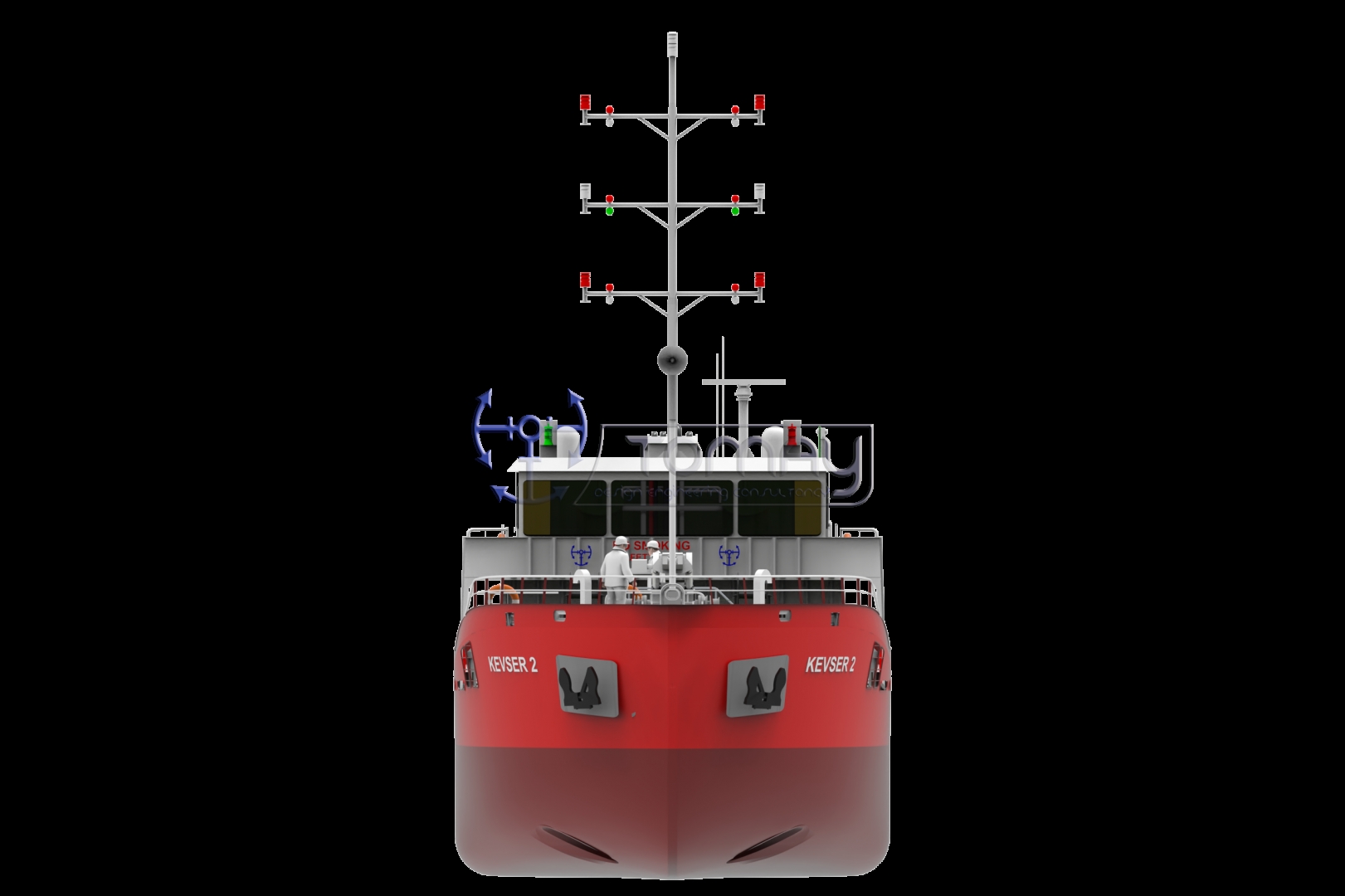

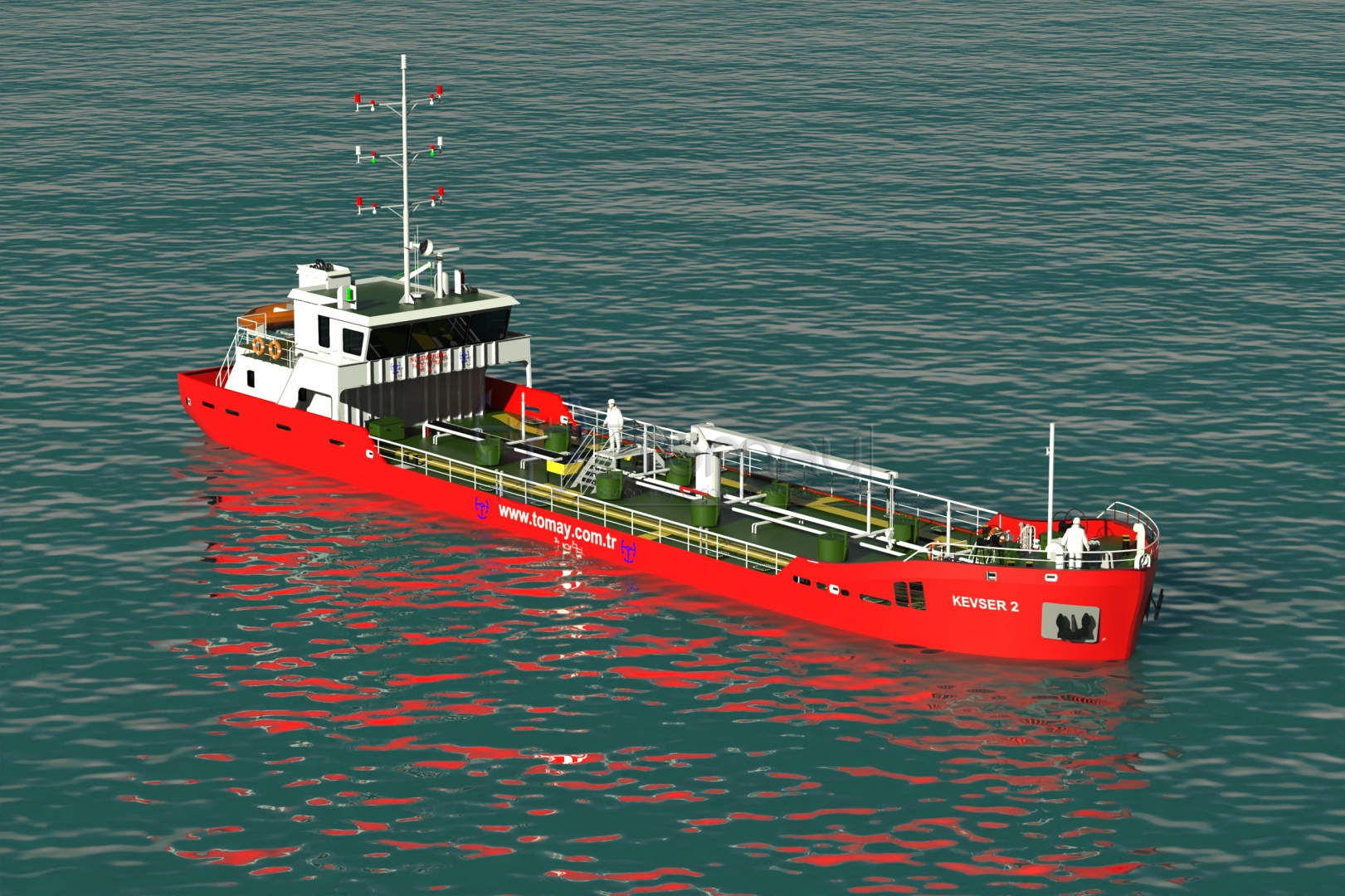

  • Render / Project Images

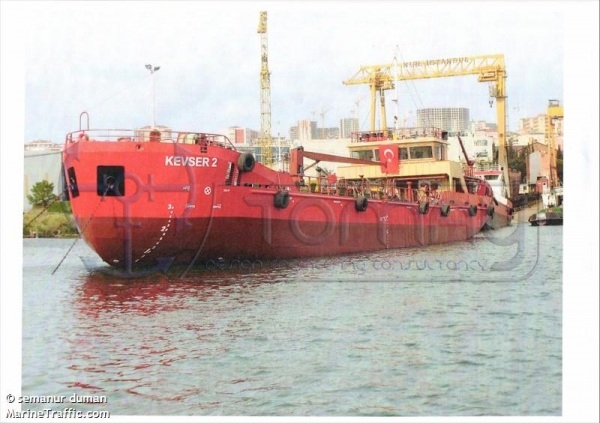

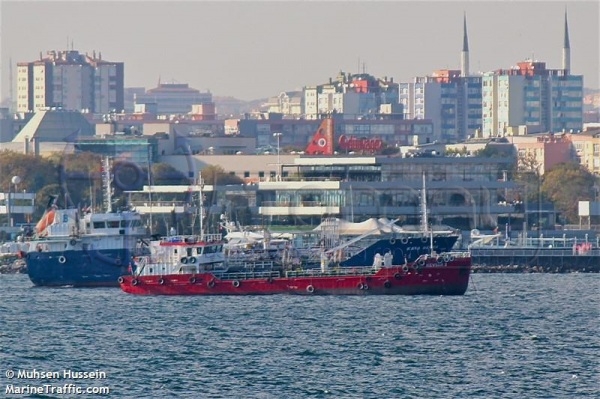

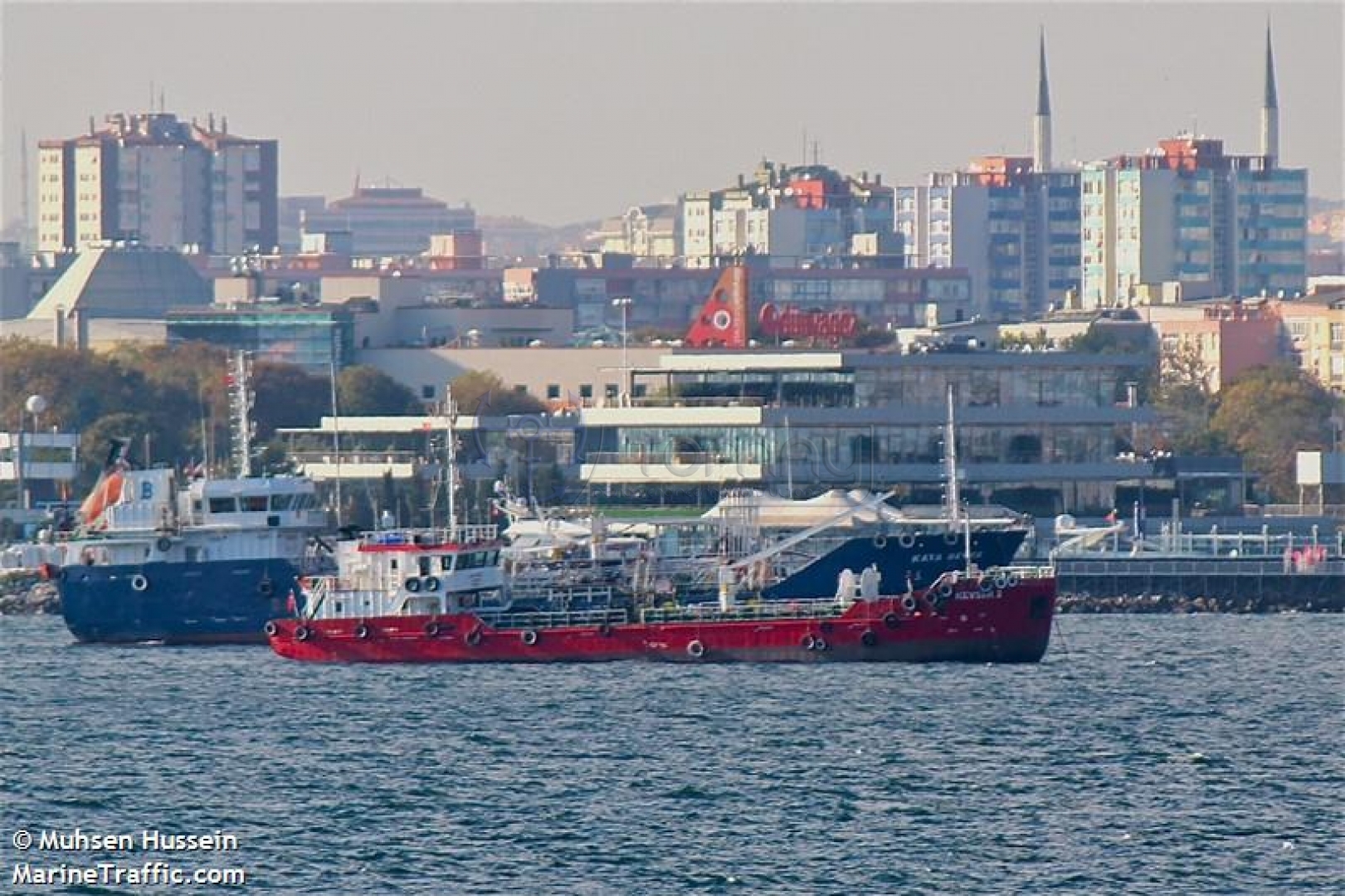

  • Detail Photos
