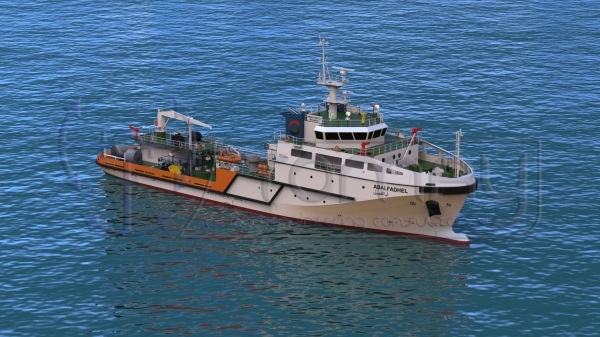

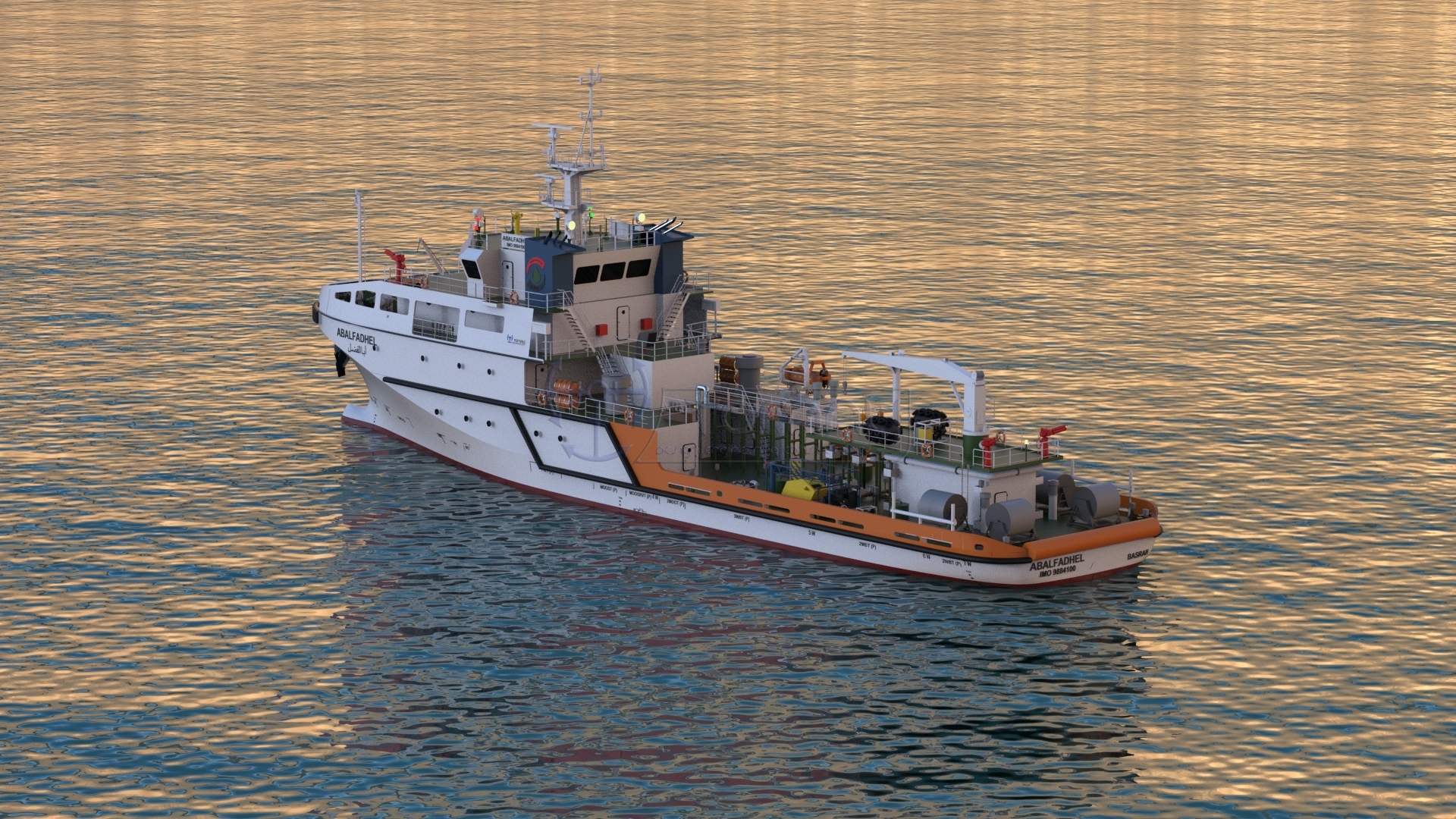

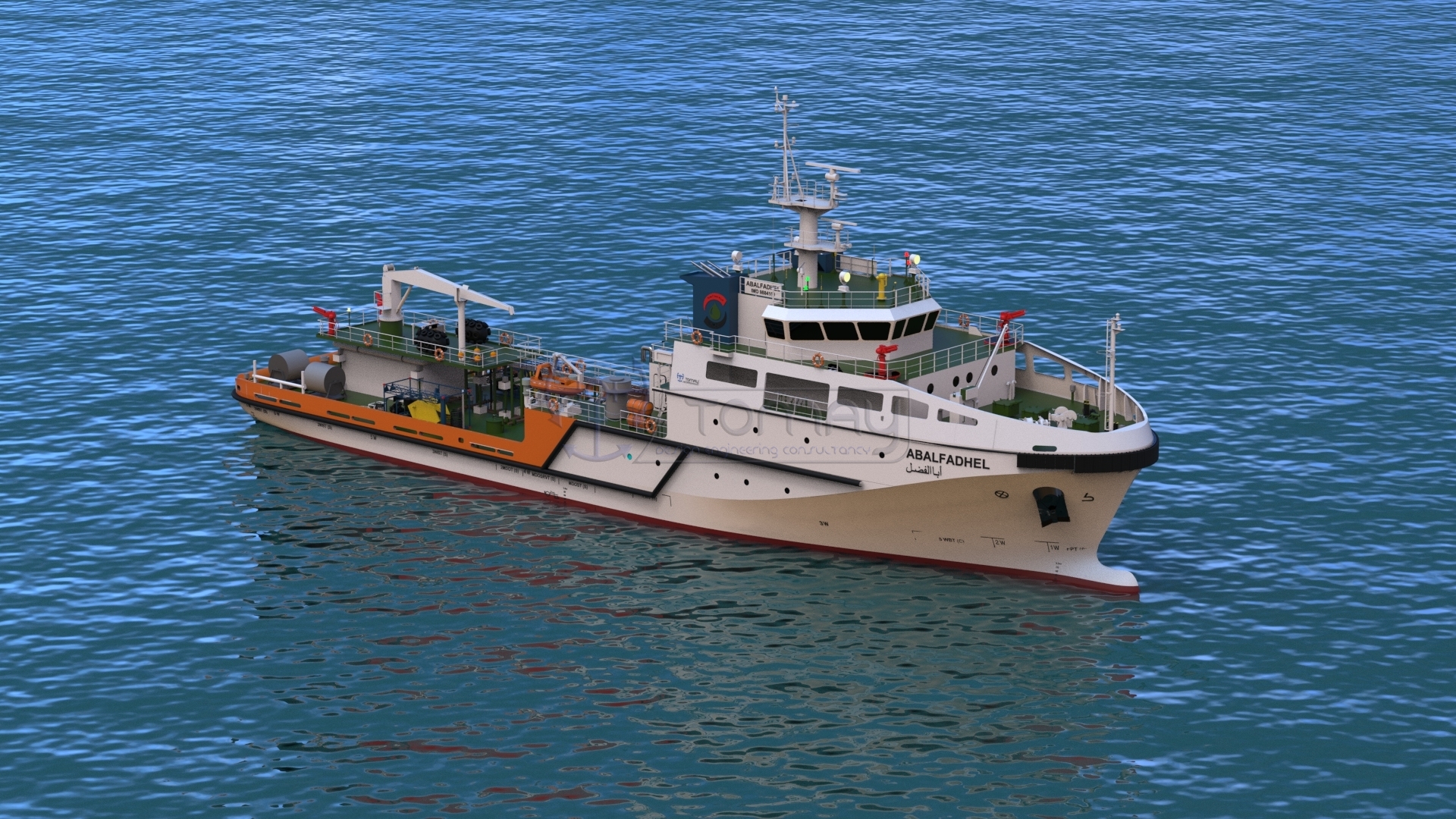

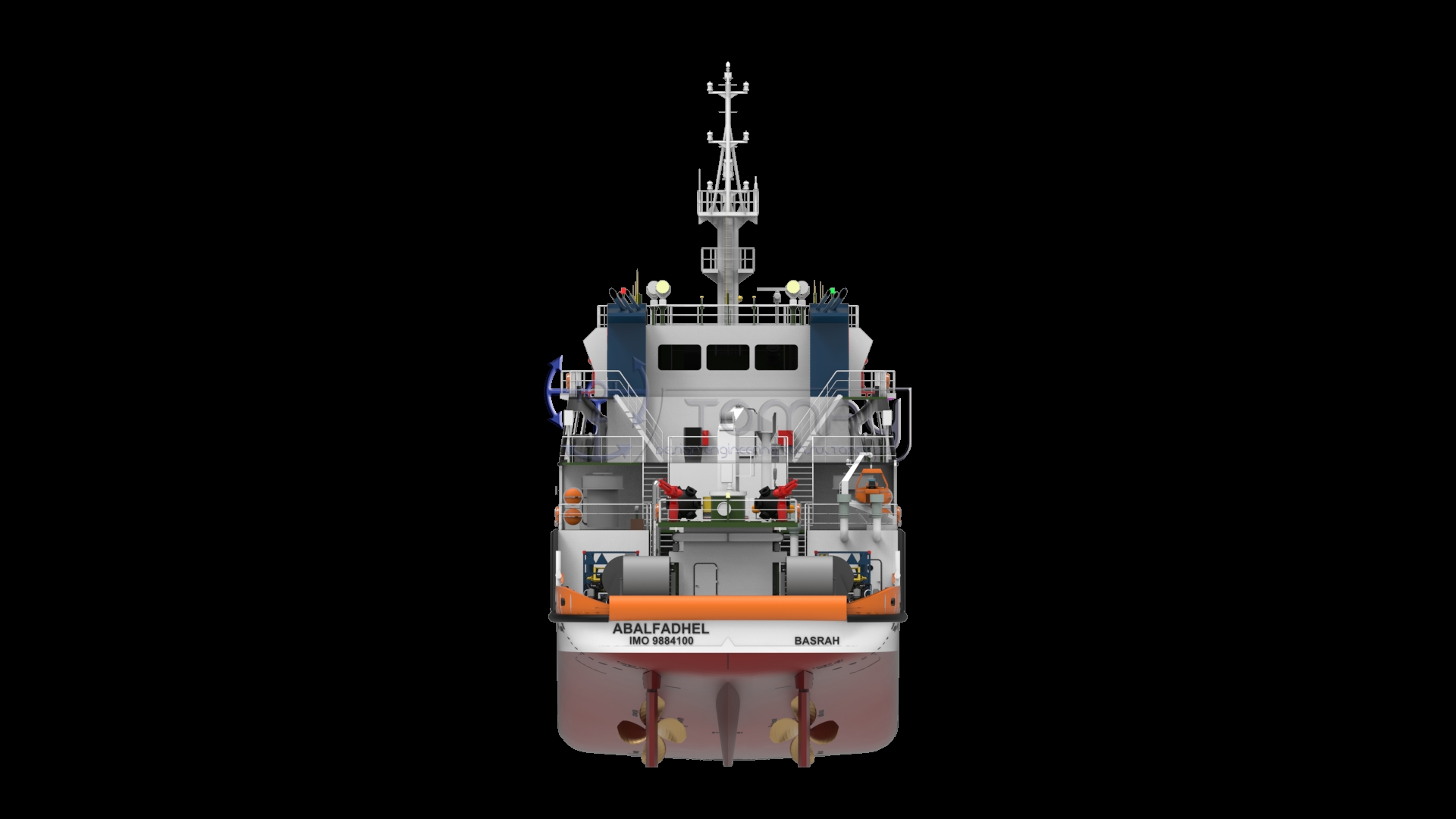

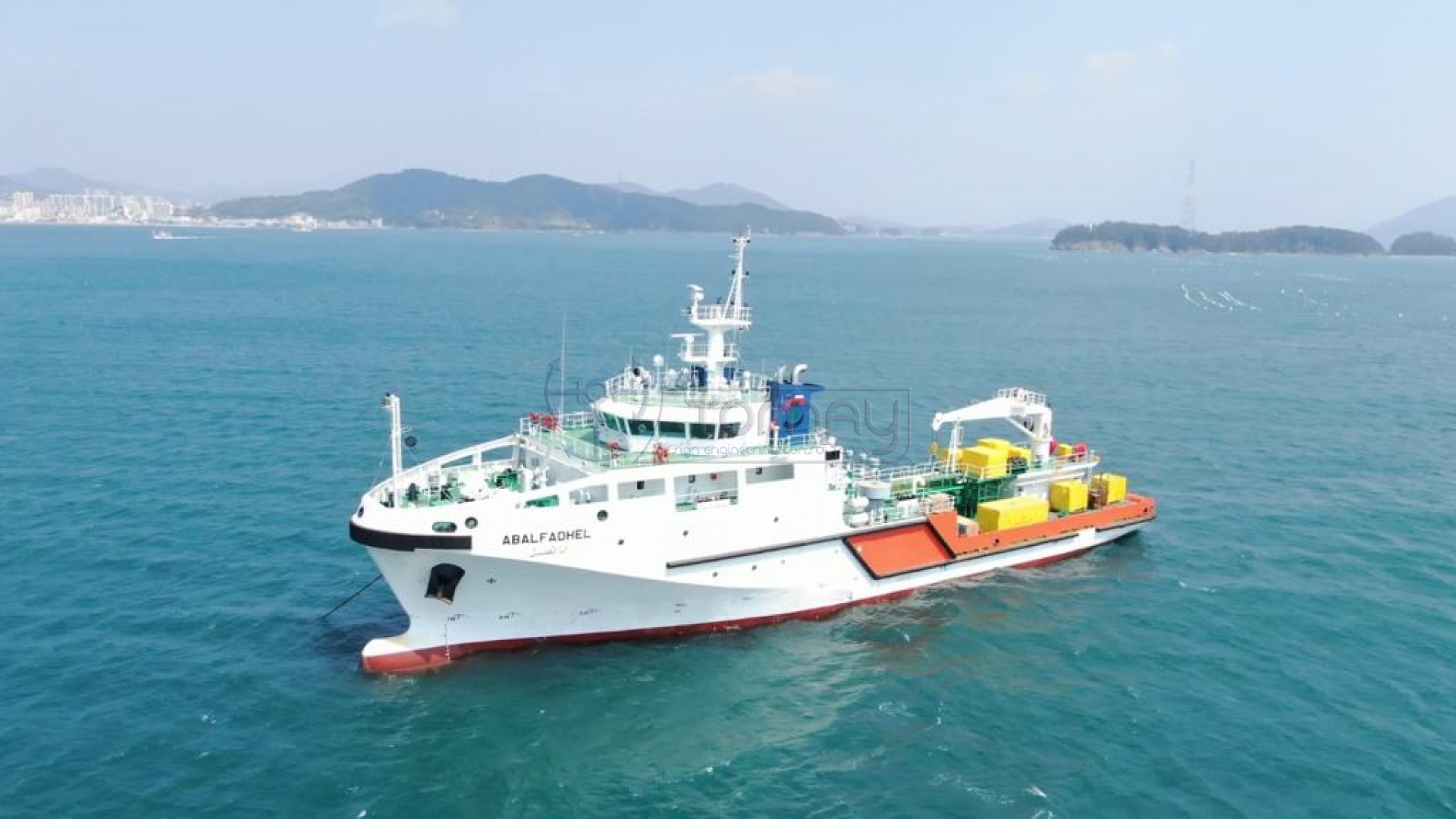

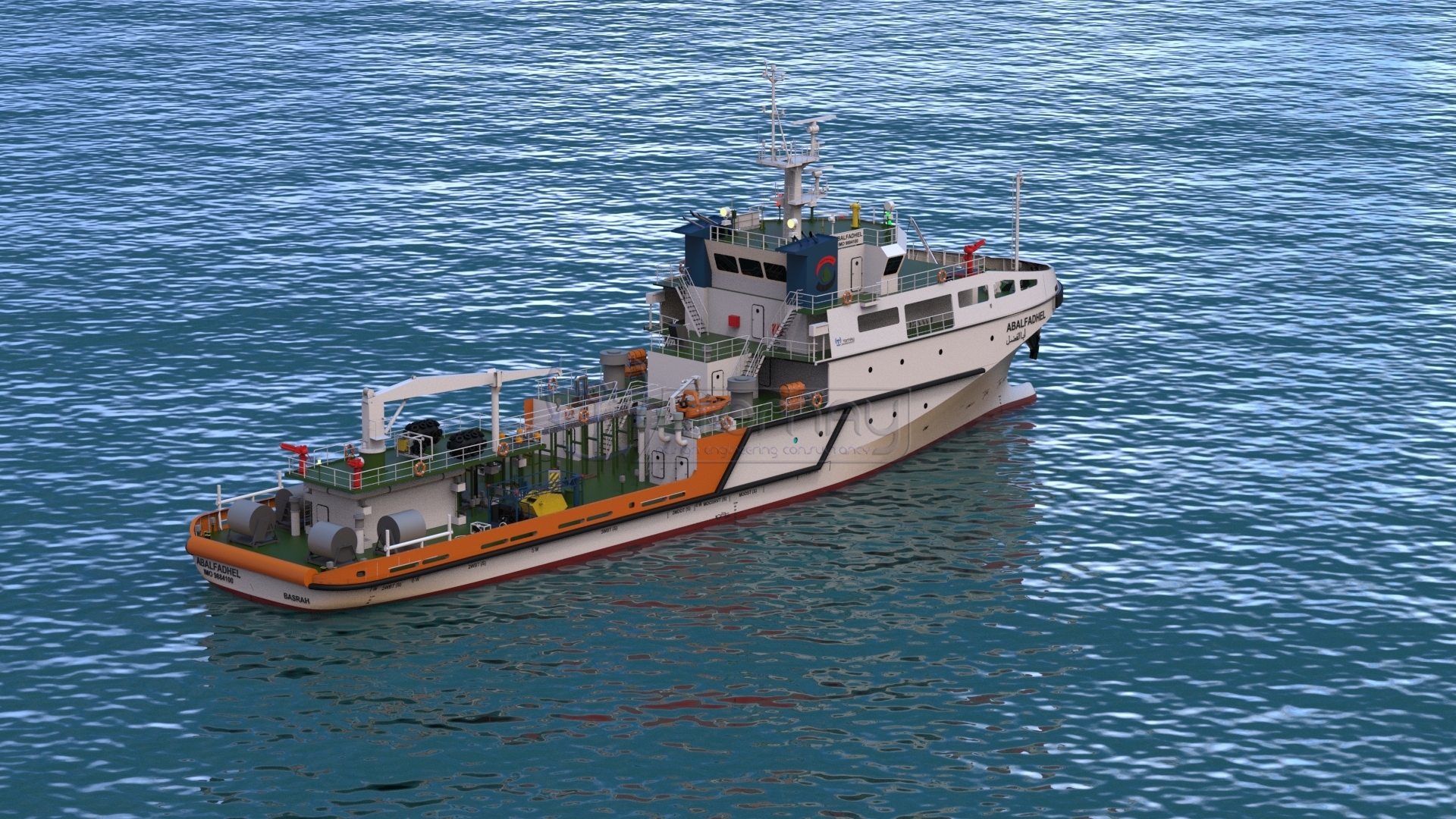

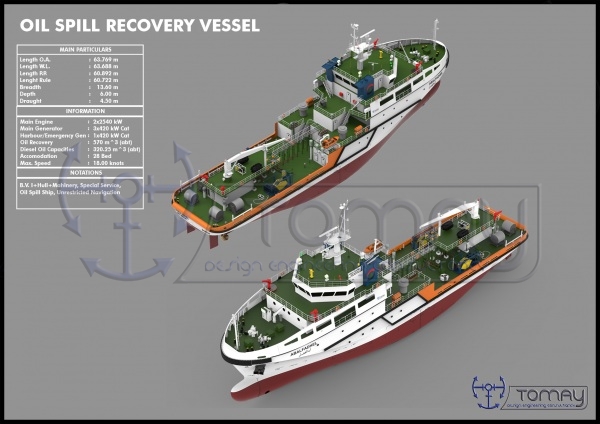

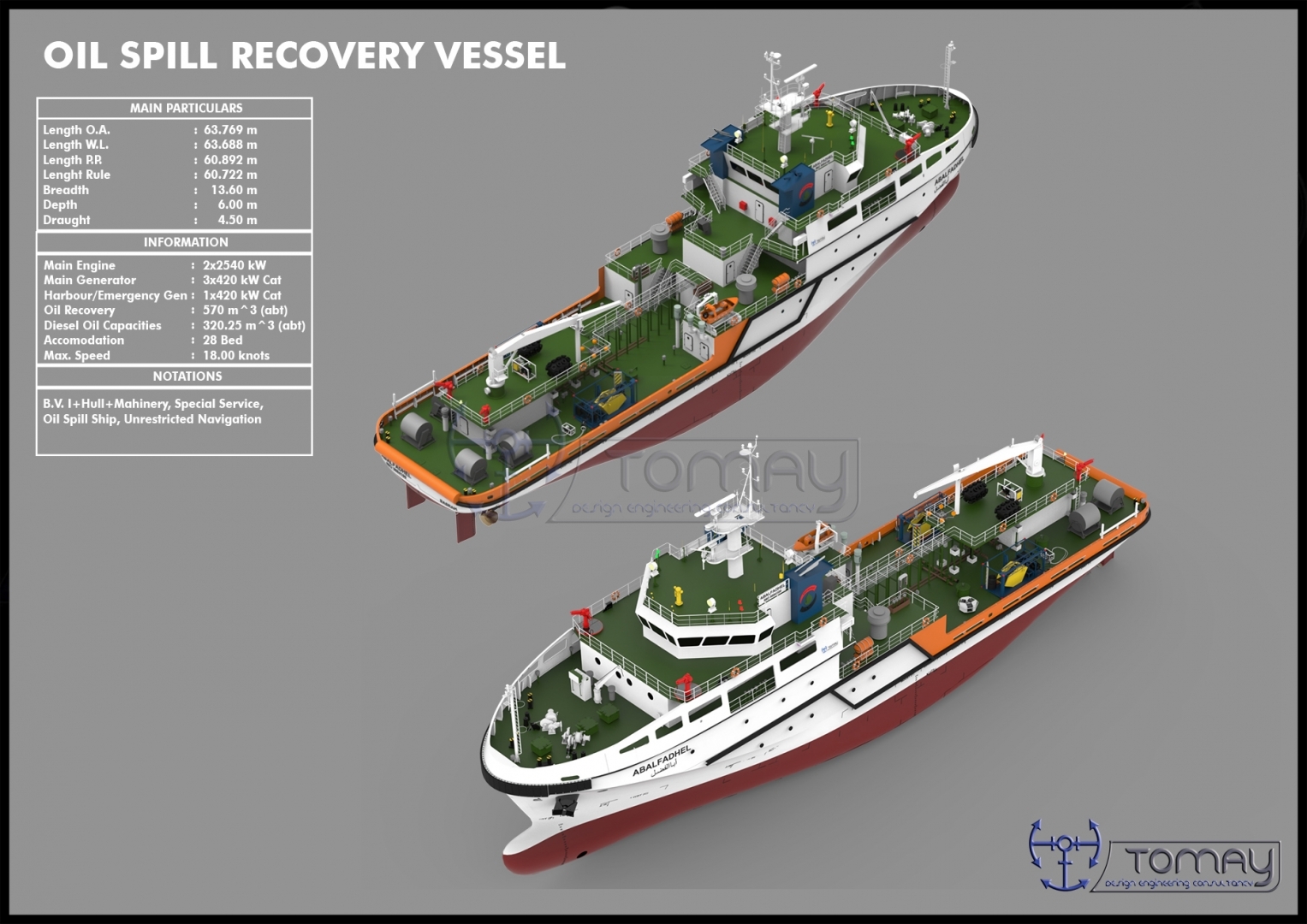

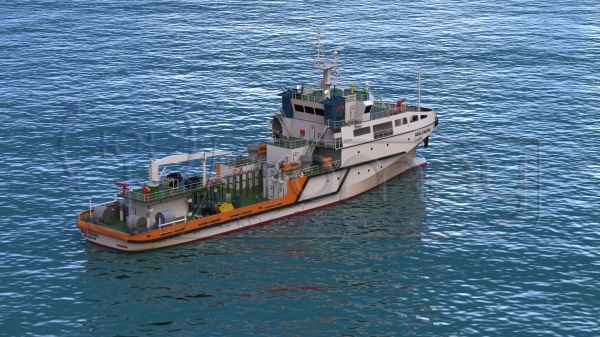

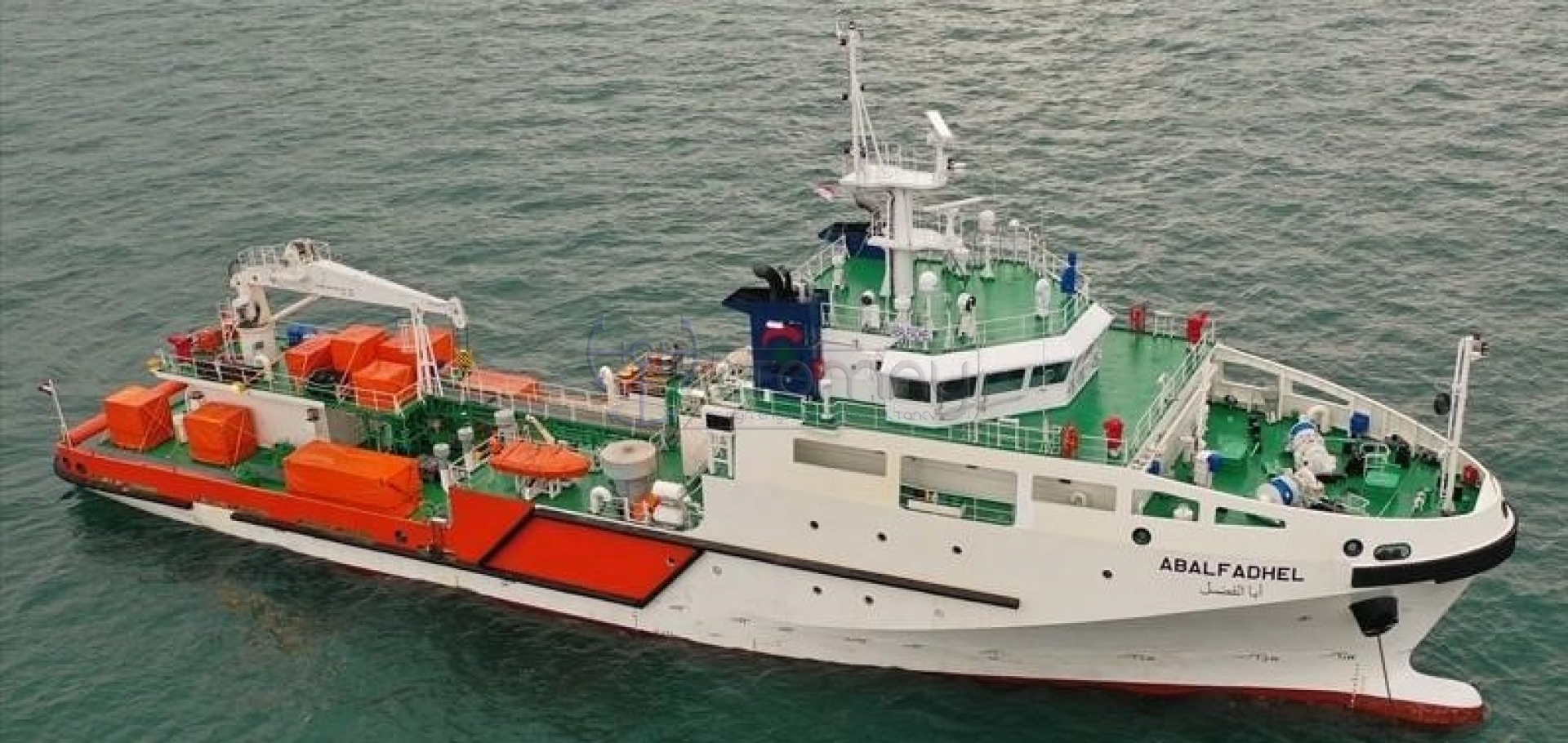

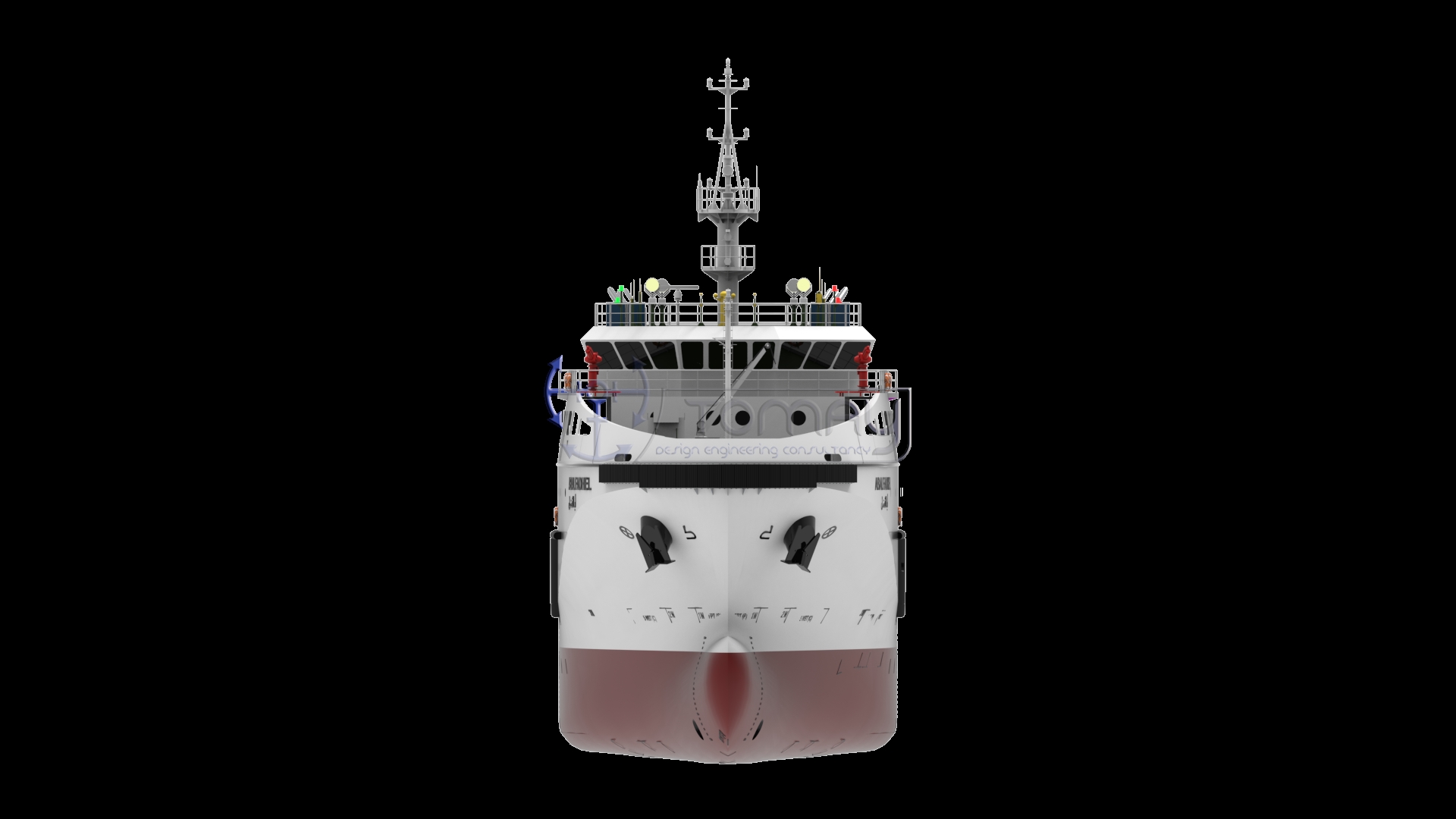

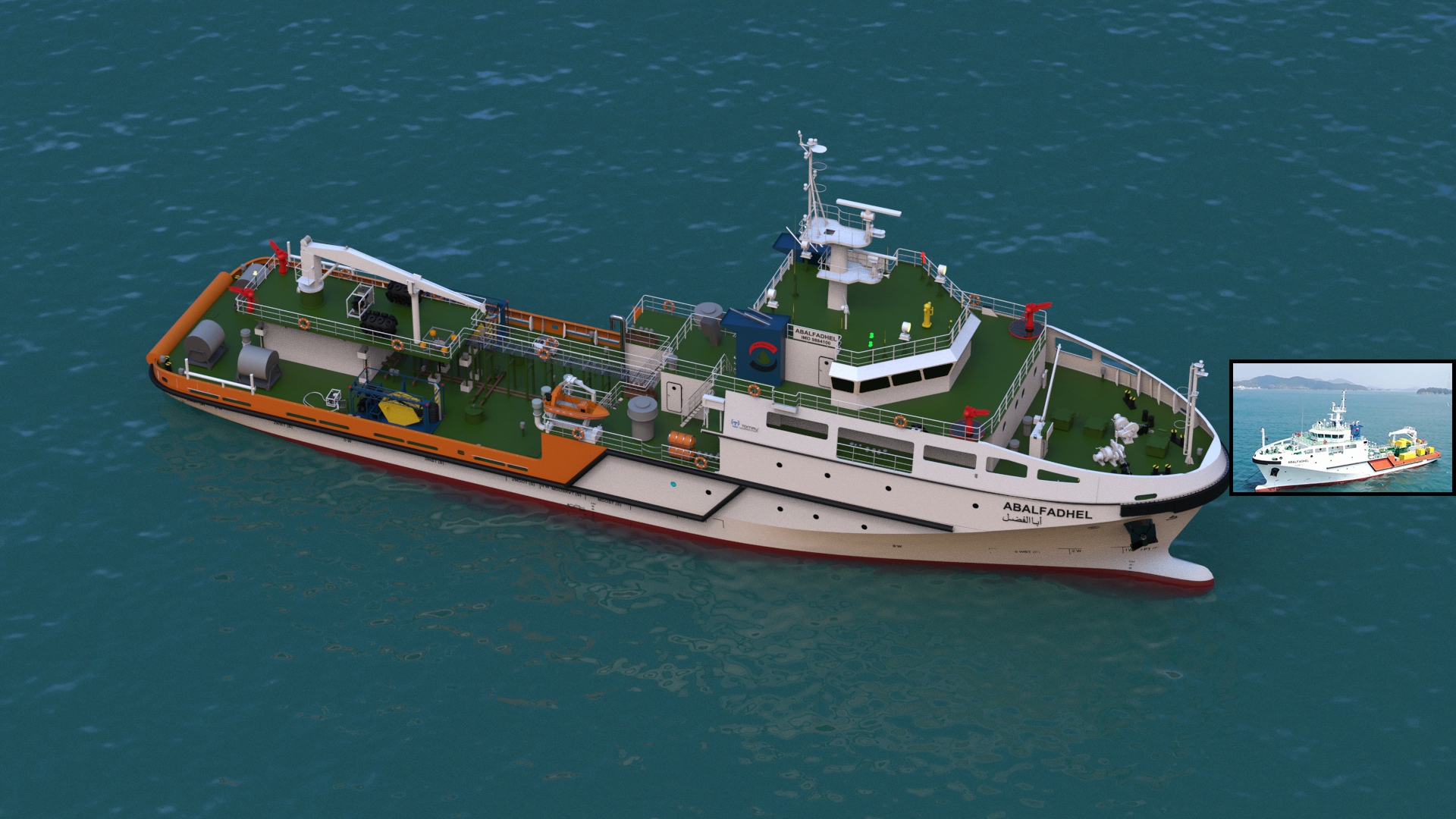

OIL SPILL RECOVERY VESSEL

GENERAL INFORMATION

Basic Functions

Class Notations

B.V. I + Hull + Machinery, Special Service,

Oil Spill Ship, Unrestricted Navigation

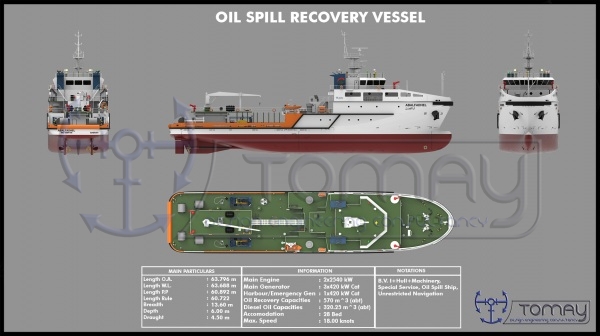

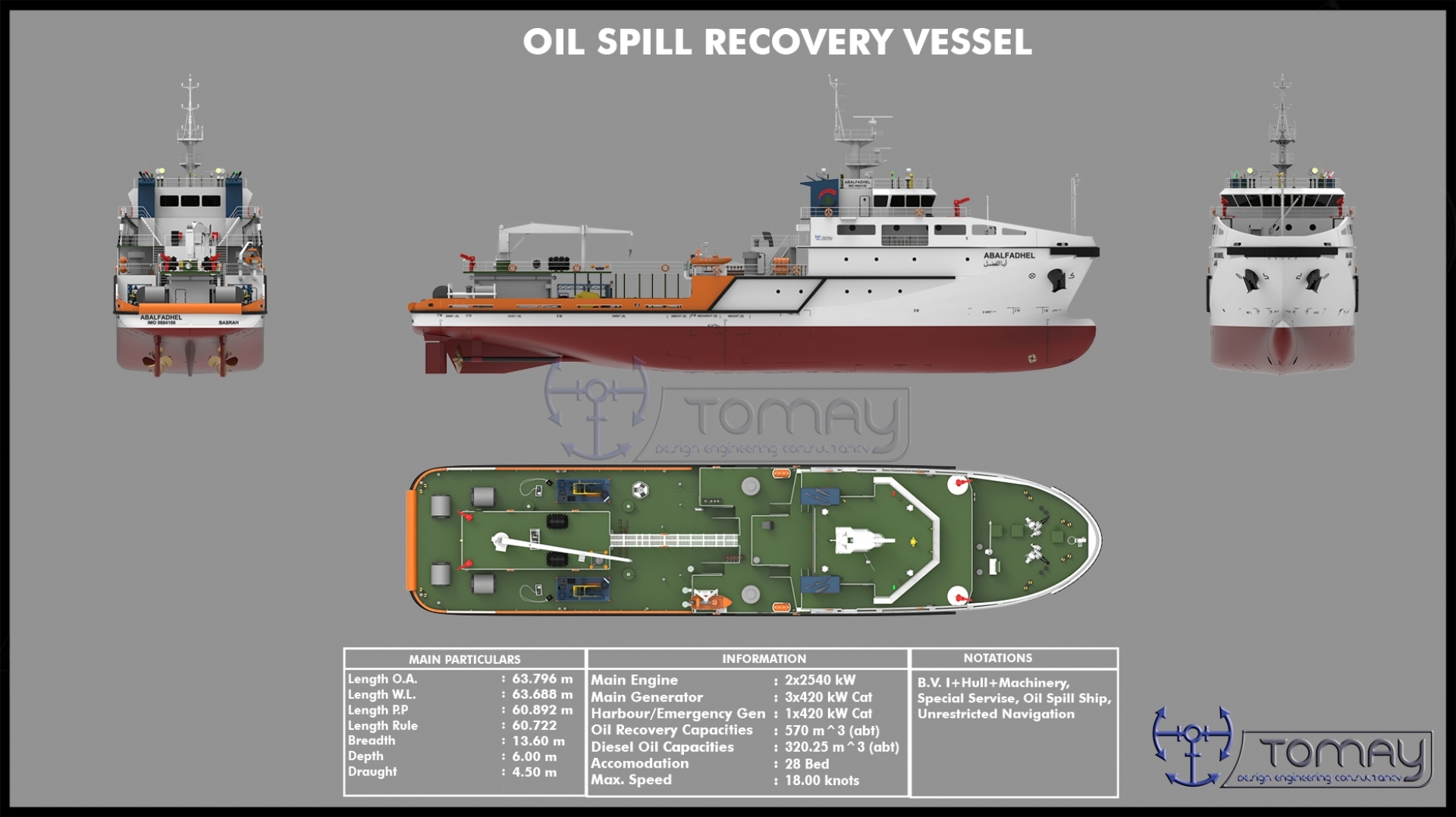

MAIN PARTICULARS

Length Overall

Length W.L.

63.688 m

Length P.P.

60.892 m

Breadth

13.60 m

Depth

6.000 m

Draught

4.500 m

Gross Ton

1672

Speed(max)

18.00knots

TANK CAPACITIES

Diesel Oil

242.906 m³

Fresh Water

43.74 m³

Ballast

634.459 m³

Lube Oil

15.780 m³

Sewage

10.96 m³

Bilge

4.93 m³

Sludge

1.20 m³

PROPULSION SYSTEM

Main Engines

2 x CAT C18MS66 2560kW

Total Power

2 x 2560 kW

Propeller

2 x Fixed Pitch / 4 Blades

AUXILIARY ENGINES

Generator (Main)

3 x CAT –C71DG20 420 kW @ 1500 rpm

Generator (Harbour)

1 x CAT –C71DG20 420 kW @ 1500 rpm

Total Power

1680 kW (4x420kW)

DECK EQUIPMENT

Offshore Crane

1 x SWL 30T- 5m / 10T- 12m

ACCOMMODATION

For 28 people, cabins are insulated and finished with durable linings, isolated wheelhouse, floating floors and air-conditioned rooms. The Captain’s cabin, Chief Engineer’s cabin, First Engineer's cabin, 2nd & 3th Engineer’s cabin, Officer’s cabin, Hospital; , 10 double crew cabin, galley, mess room, meeting room and sanitary facilities.

REFERENCES

Owner

 BASRAH OIL COMPANY

Shipyard

ENM KOREA

Hull Number

 DSO1010
