GENERAL INFORMATION

Basic Functions

Transportation of Oil Products

Class

BUREAU VERITAS

Notations

I X HULL, X MACHINERY, OIL TANKER ESP, UNRESTRICTED NAVIGATION, FLASH  POINTABOVE 60oC

Alternate and asymmetrical loadings are allowed at sea.

500>GRT (Not covered by SOLAS Convention)





MAIN PARTICULARS

Length Overall

49.985 m

Length W.L.

49.428 m

Length P.P.

48.267 m

Breadth Moulded

9.500 m

Depth

4.000 m

Draught (Design)

2.900 m

Deadweight

800 t (abt.)

Gross Ton

498

Speed

8.0 kts

Cargo Volume 100%

832 m3 (abt.)



TANK CAPACITIES

Cargo

827.16 m3

Ballast

433.17 m3

Diesel Oil

44.94 m3

Fresh Water

9.66 m3

Overflow

3.03 m3

Bilge

3.54 m3

Sludge

1.56 m3

Sewage

4.11 m3

PROPULSION SYSTEM

Main Engines

2 x YANMAR – 6HYM-ETE

Total Power

2 x 368 kW @1950 rpm

Propeller

2 x Fixed Pitch / 4 Blades



AUXILIARY ENGINES

Generator (Main)



Total Power

2 x143 kW



DECK EQUIPMENT

HOSE CRANE

1 x SWL  1.0 t – 12.0 m



ACCOMMODATION

For 5 persons, cabins are insulated and finished with durable

linings, isolated wheelhouse, floating floors and air-conditioned

rooms. The Captain’s cabin, Chief Engineer’s cabin, 3 crew cabins,

galley, mess room and sanitary facilities.



REFERENCES

Owner

İSTANBUL TERSANECİLİK VE DENİZCİLİK SAN. TİC. LTD. ŞTİ.

Shipyard

İSTANBUL TERSANECİLİK VE DENİZCİLİK SAN. TİC. LTD. ŞTİ.

Hull Number

NB-10 / NB-11

PT-02 TWIN SCREW 500>GRT

800 DWT PRODUCT TANKER

  • ALL

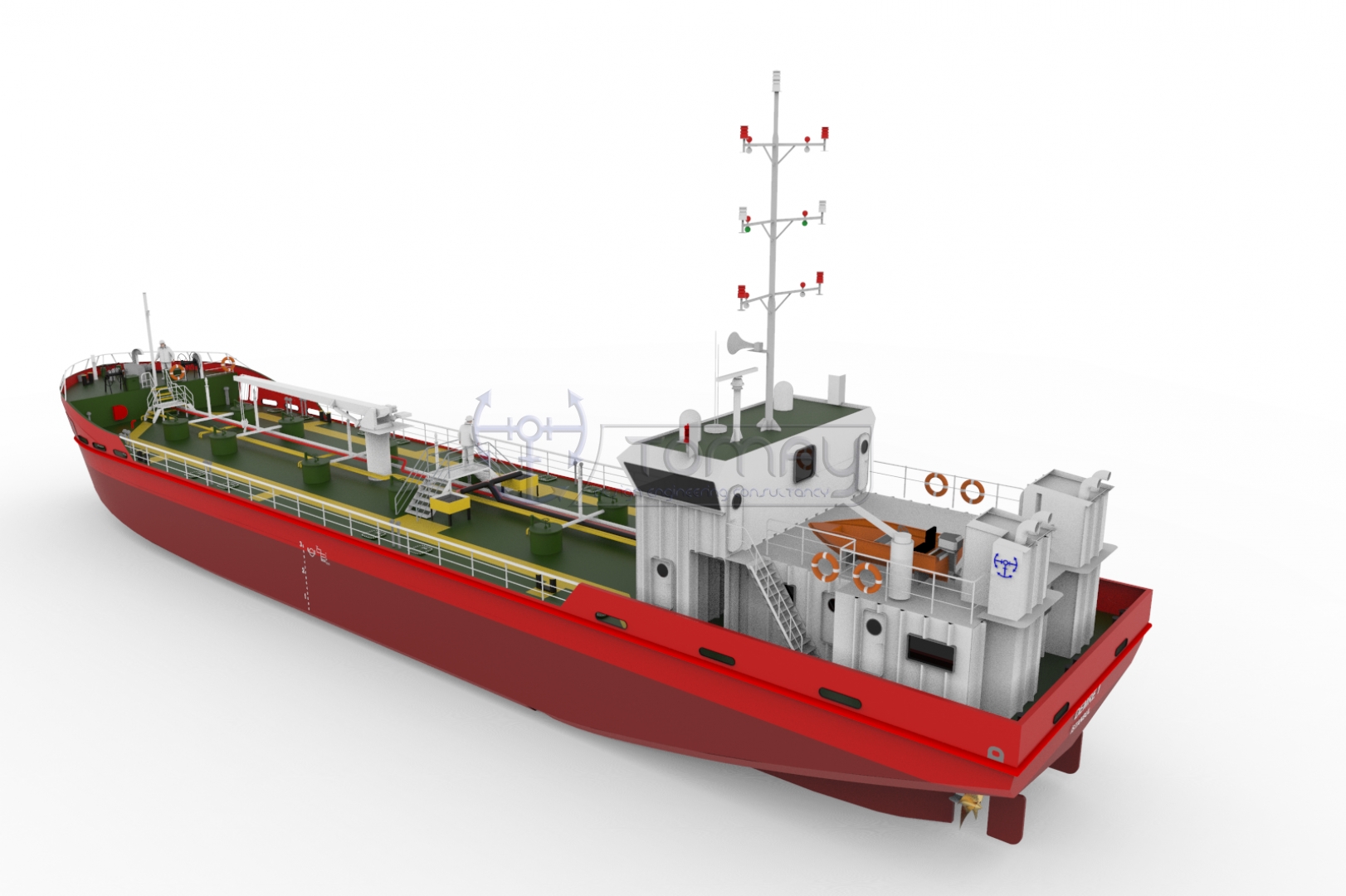

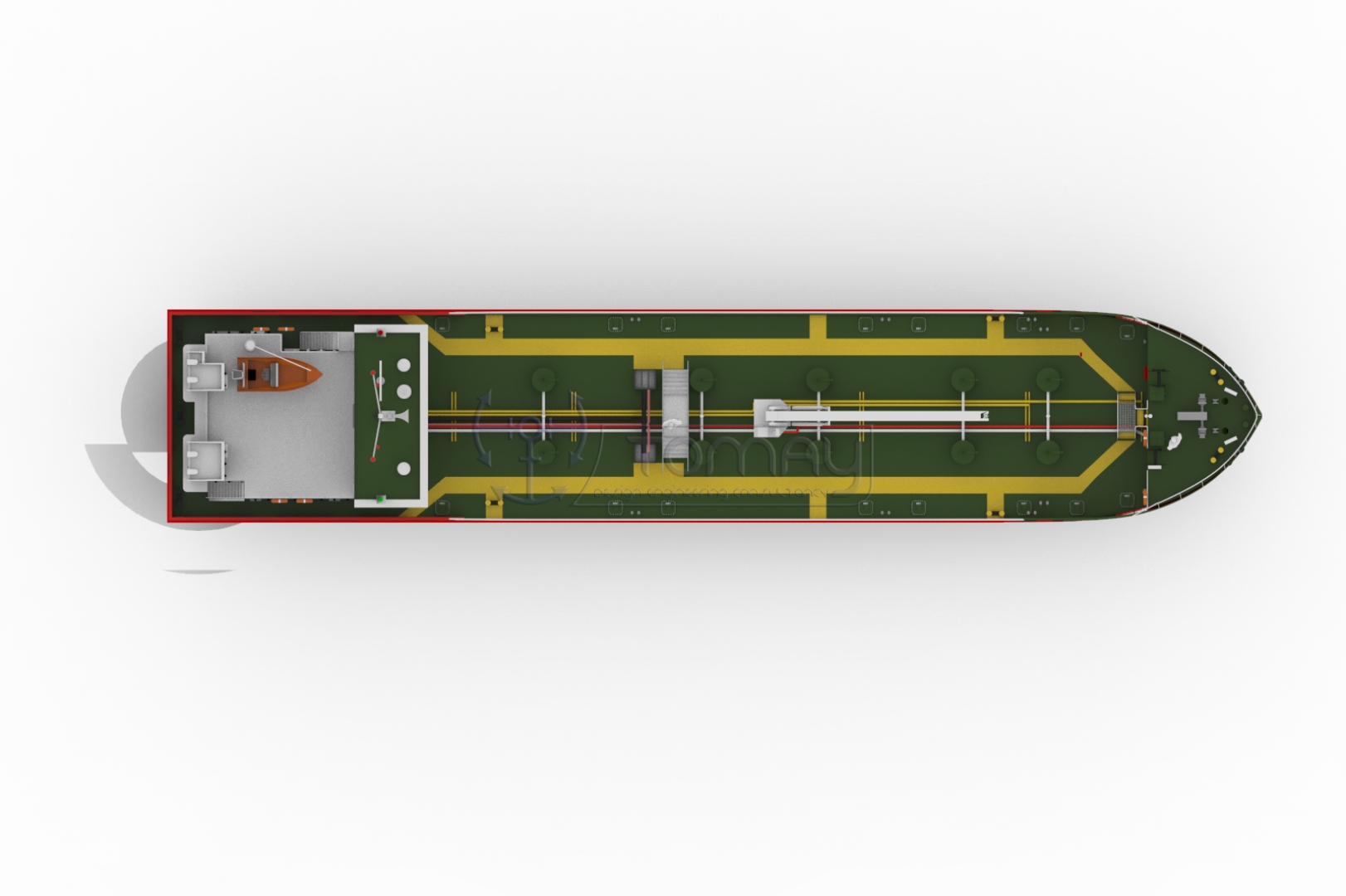

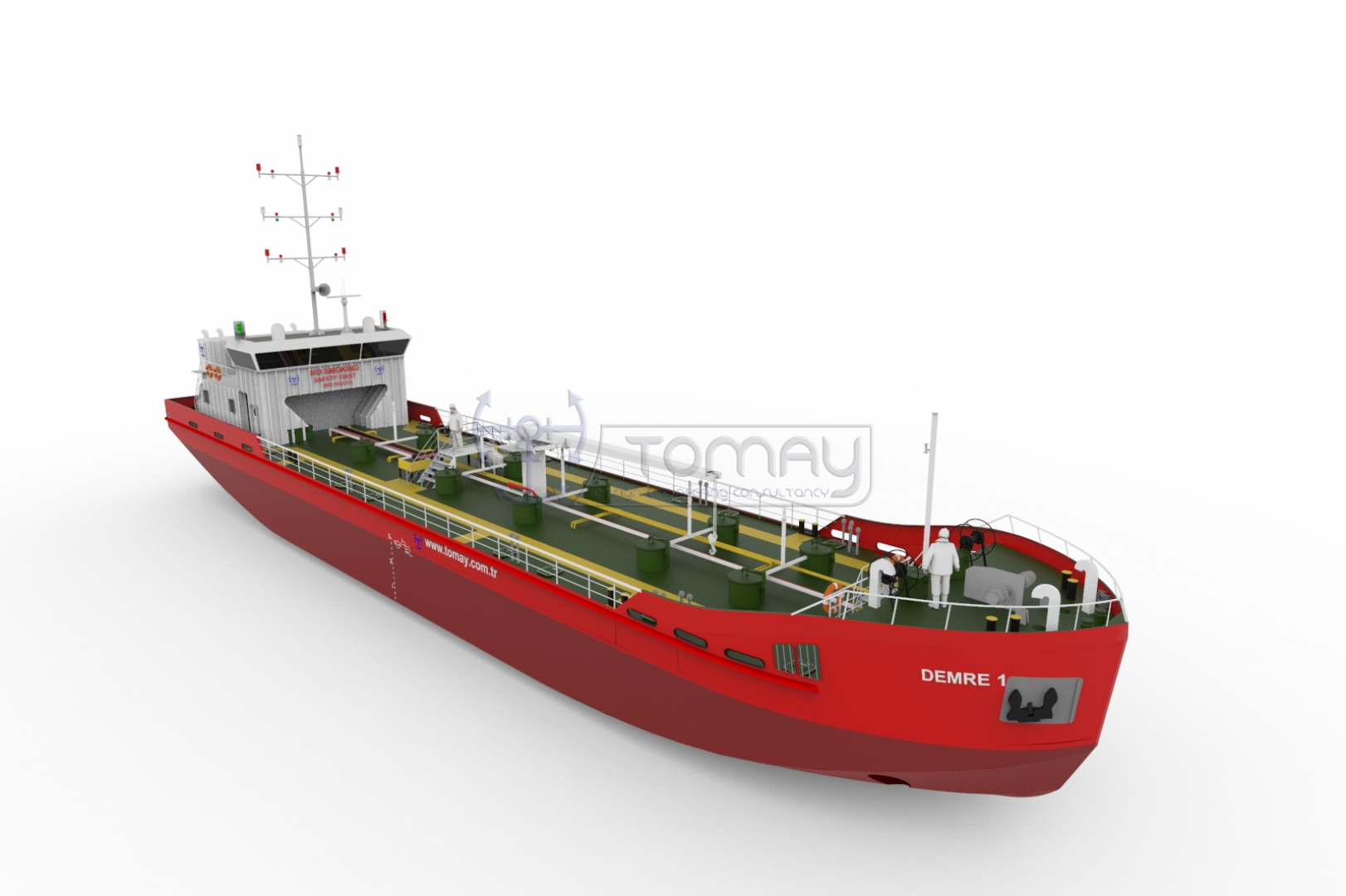

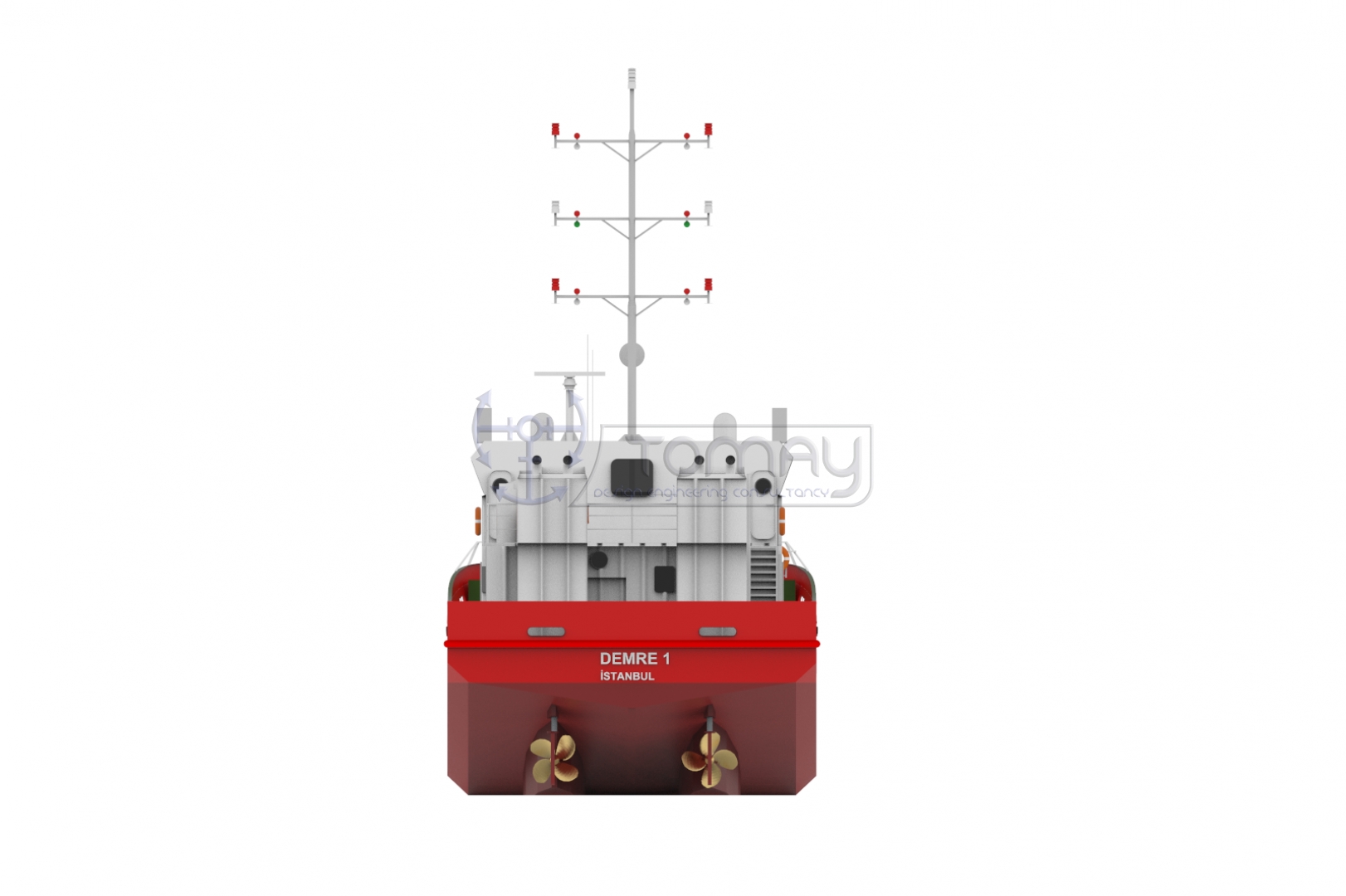

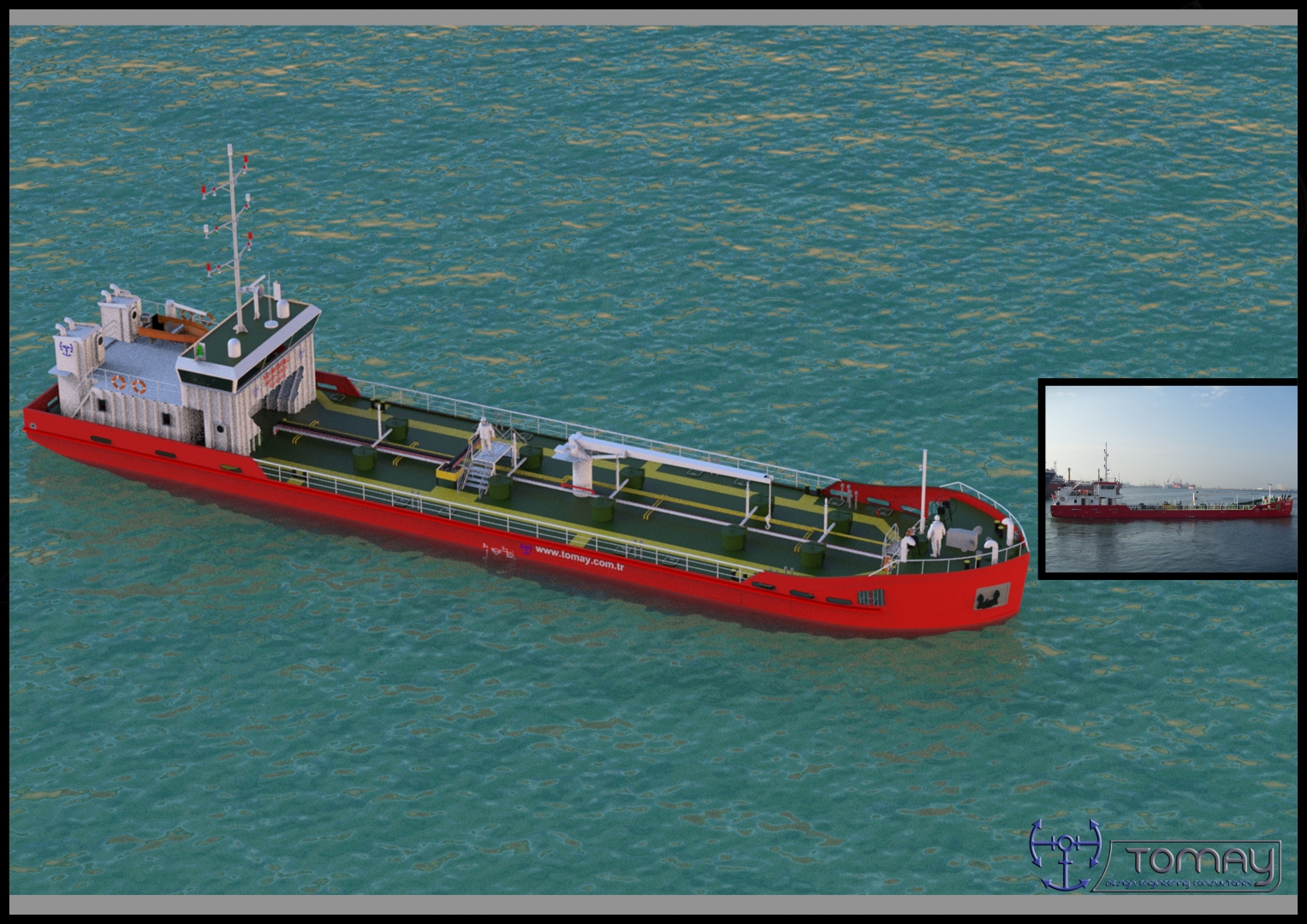

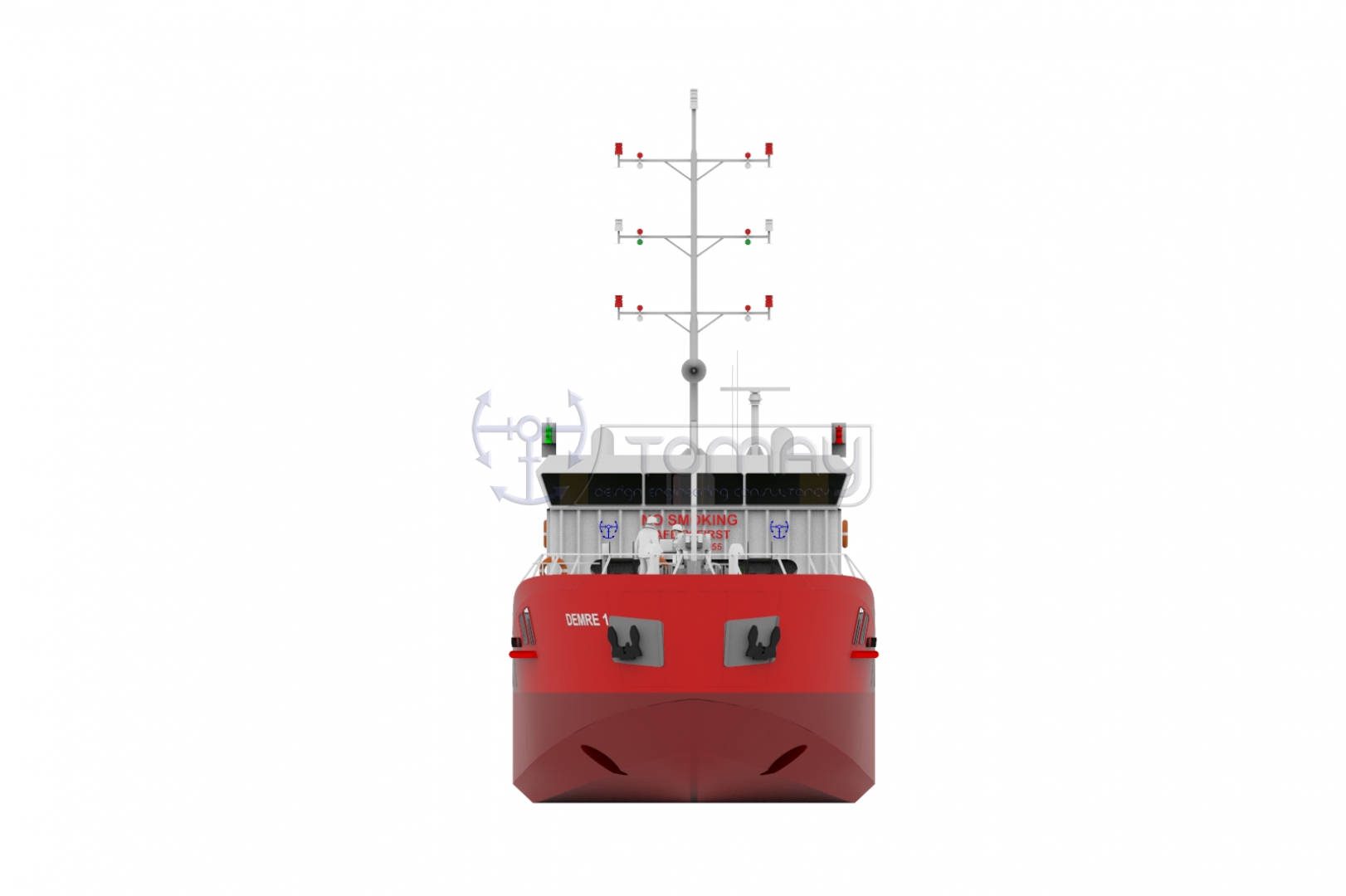

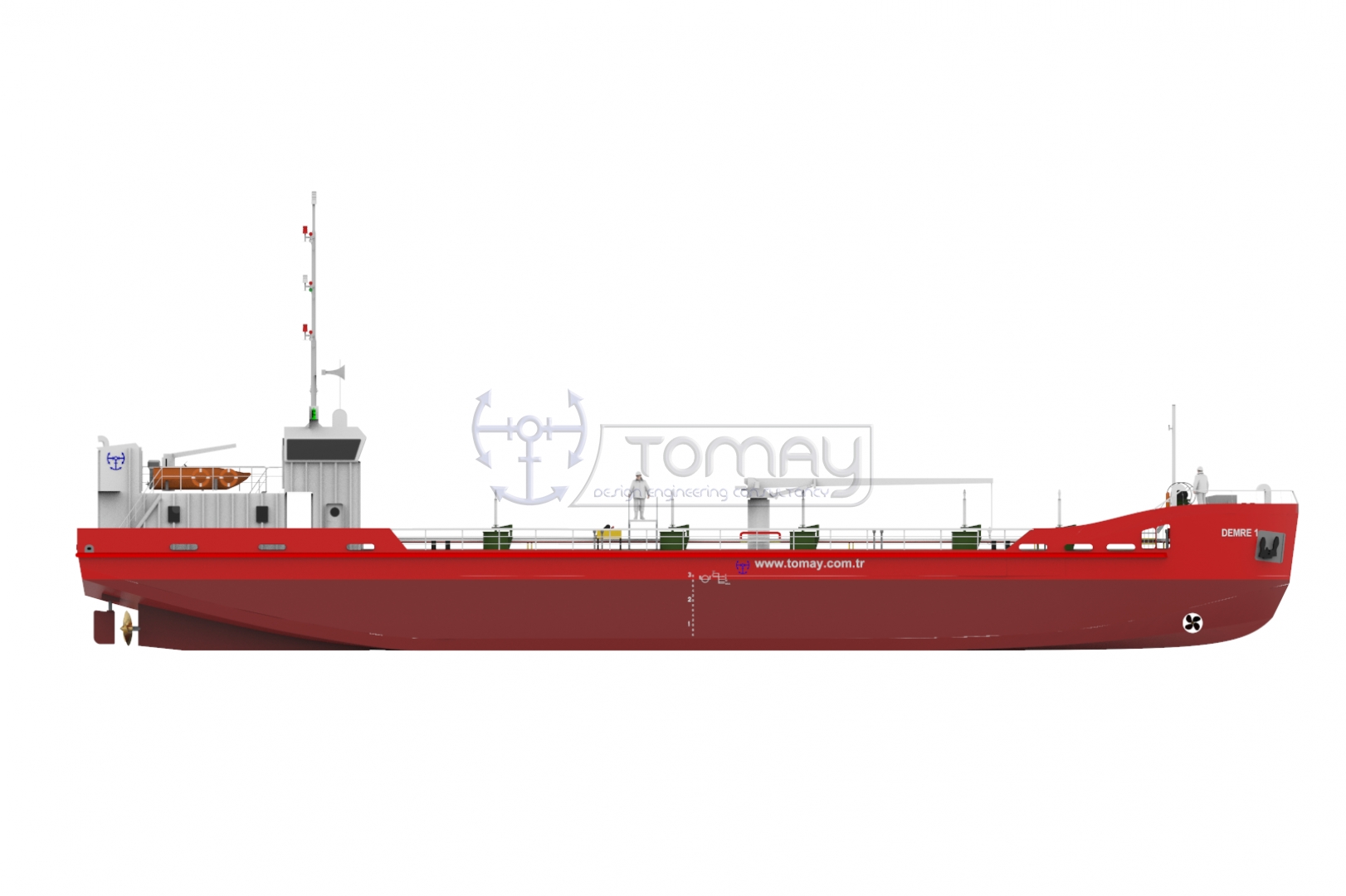

  • Render / Project Images

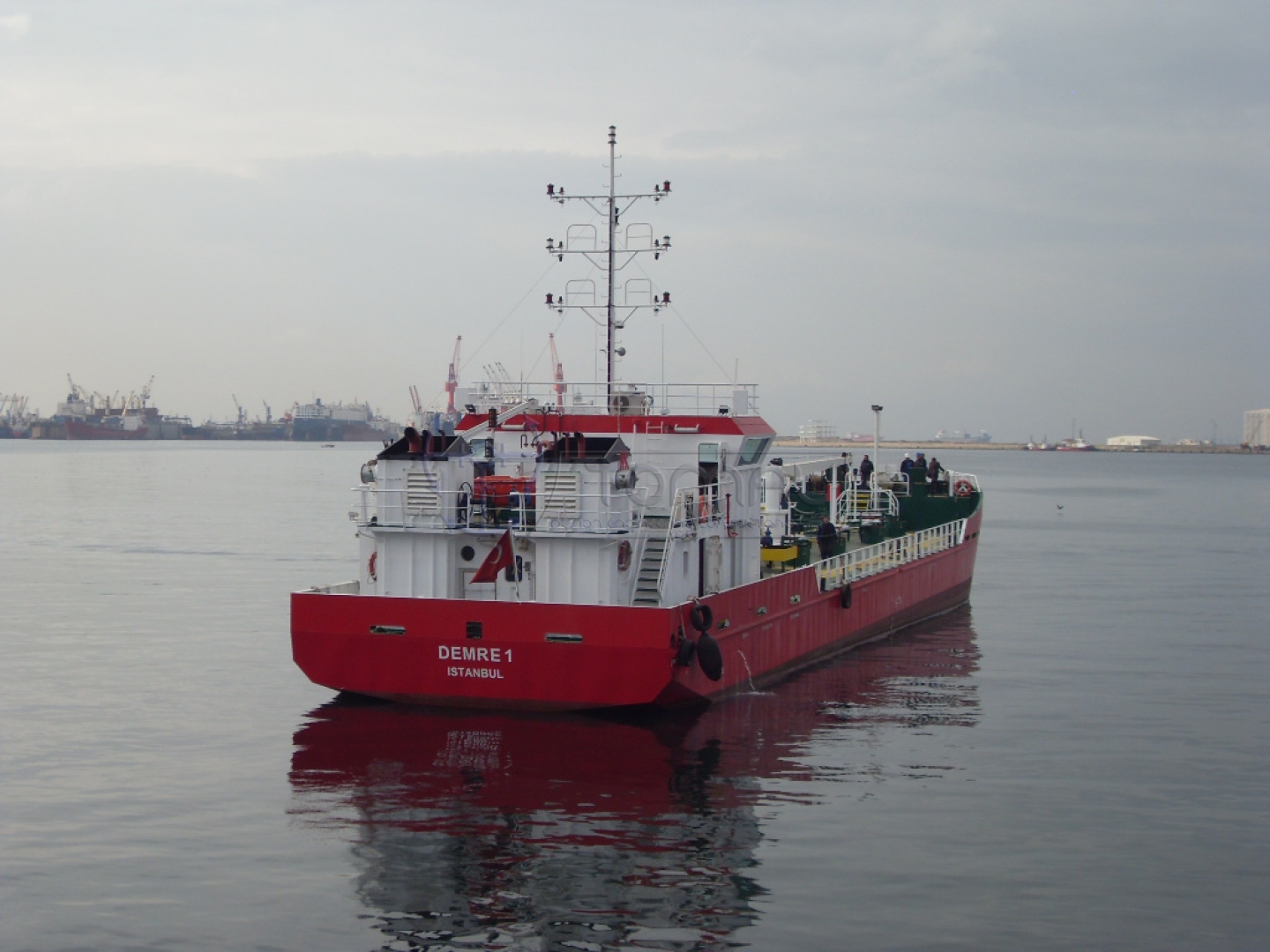

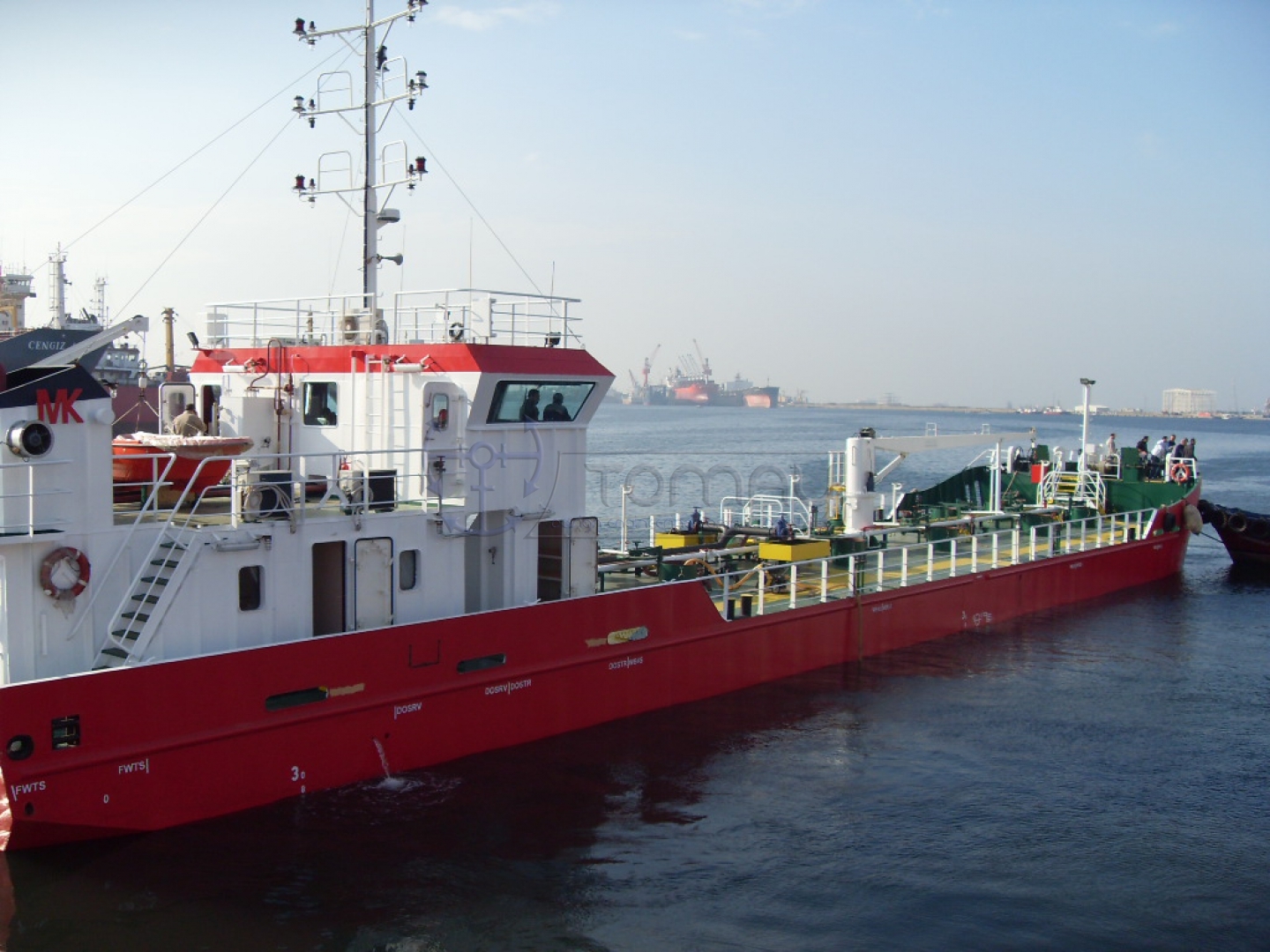

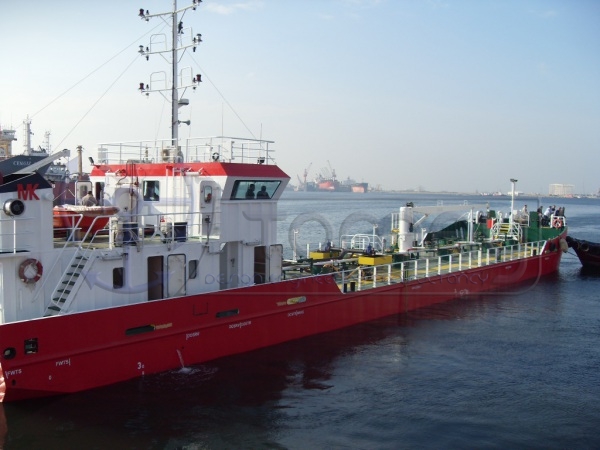

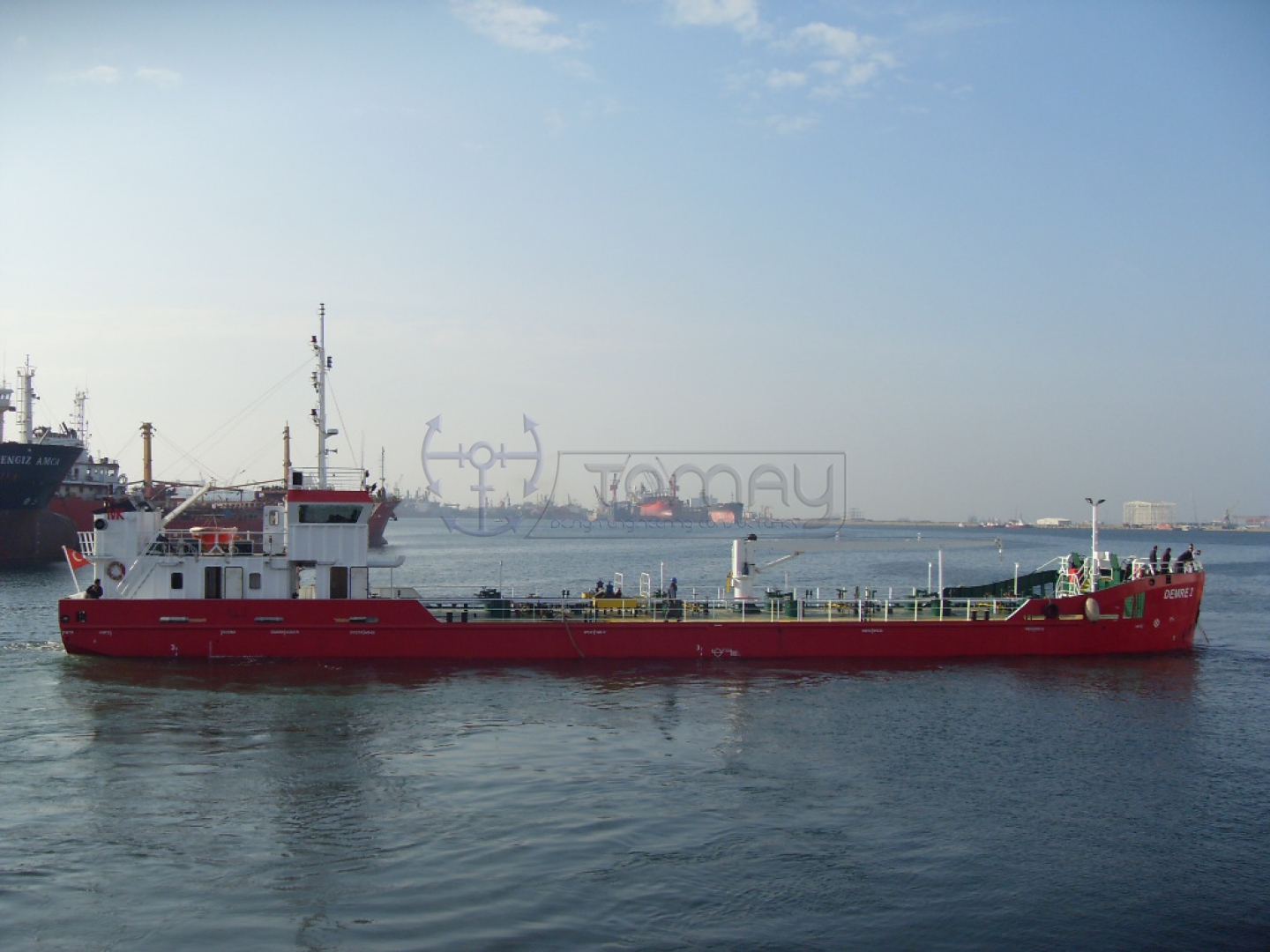

  • Detail Photos
