GENERAL INFORMATION

Basic Functions



Class Notations

BUREAU VERITAS

 I X HULL X MACHINARY

Offshore Support Vessel (Supply-FP≤60o), AHTS,

FI-FI 1 – Water Spray, Inwater Survey, SDS

DYNAPOS-AM/AT R  Unrestricted Navigation



MAIN PARTICULARS

Lenght Overall

64.837 m

Lenght W.L.

63.579 m

Length P.P.

59.379 m

Breadt

14.800 m

Depth

6.750 m

Draught

5.000 m

Gross Ton

1993

Speed

14 kts



TANK CAPACITIES

Diesel Oil

581.34  m3

Fresh Water

241.05 m3

Ballast

806.44 m3

Lube Oil

24.40  m3

Mixing Oil

579.45 m3

Crude Oil

388.43 m3

Sewage

47.34 m3

Bilge

4.37 m3

Sludge

2.74 m3

Overflow

10.89 m3

Cargo Frresh Water

175.39 m3

PROPULSION SYSTEM

Main Engines

2 x YANMAR 8EY26W

Total Power

2 x 2560 kW @ 750 rpm

Propeller

2 x SCHOTTEL SRP 490

2 x Controlled Pitched / 4 Blades



AUXILIARY ENGINES

Generator (Main)

2 x CAT C32 450 kW

Generator (Harbour)

1 x CAT C18 250 kW

Total Power

1150 kW (2x450 + 1x250)



DECK EQUIPMENT

Offshore Crane

1 x LIEBHERR – RL 1500-50 LIT SWL 50 t – 30 m

Anchor Winch

1 x DMT – AHTW-H1100KN



ACCOMMODATION

For 31 persons, cabins are insulated and finished with durable linings, isolated wheelhouse, floating floors and air-conditioned rooms. The Captain’s cabin, Chief Enginner’s cabin, First and 2nd Engineer’s cabin, Officer’s cabin, Hospital; 3 crew cabins with double bunks, 1 crew cabin for 4 people, 6 double crew cabin, galley, mess room and sanitary facilities.



REFERENCES

Owner

B.O.C.

Shipyard

ENM KOREA

Hull Number

DSM1009

UNDER CONSTRUCTION - MPV-01

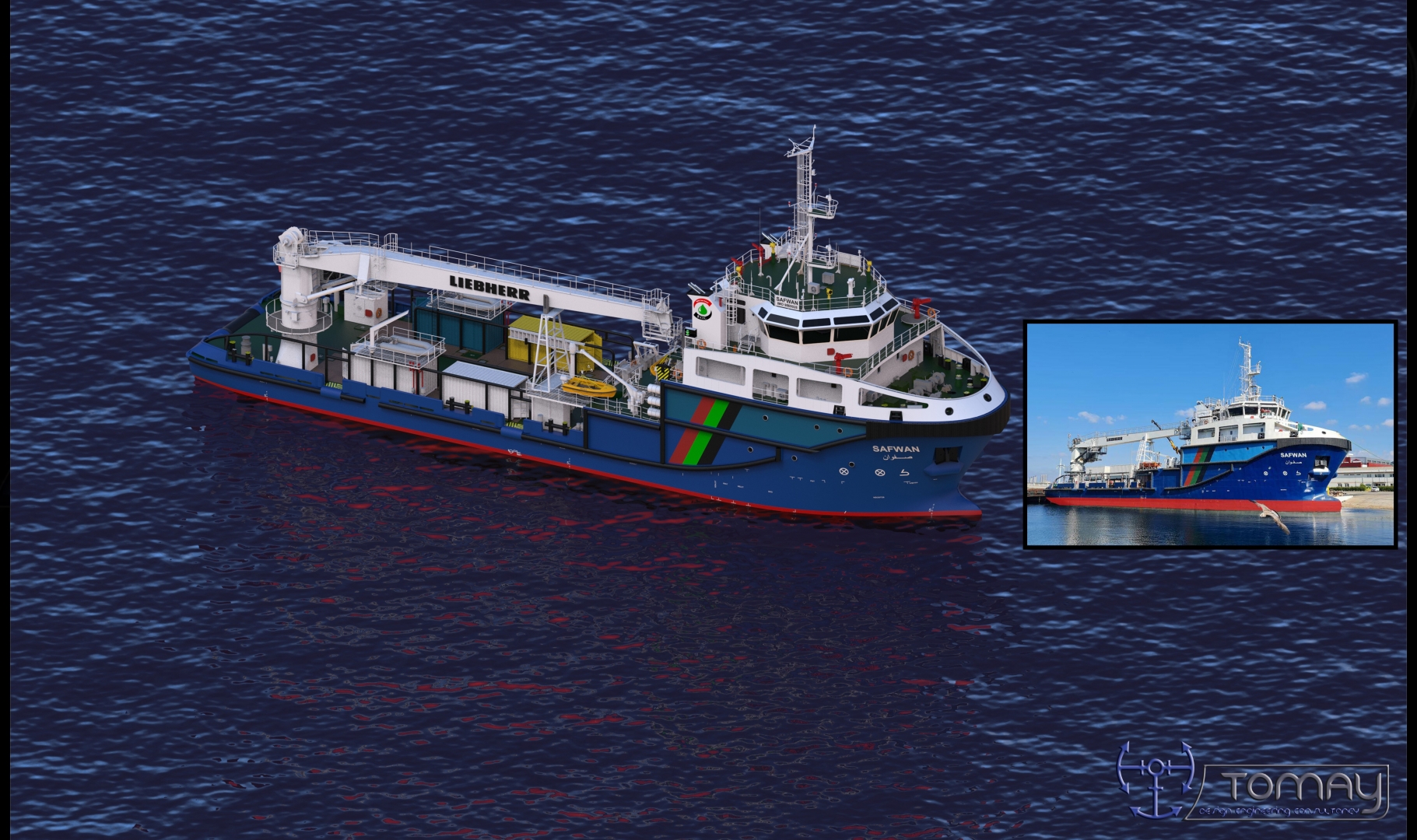

MULTI PURPOSE VESSEL
