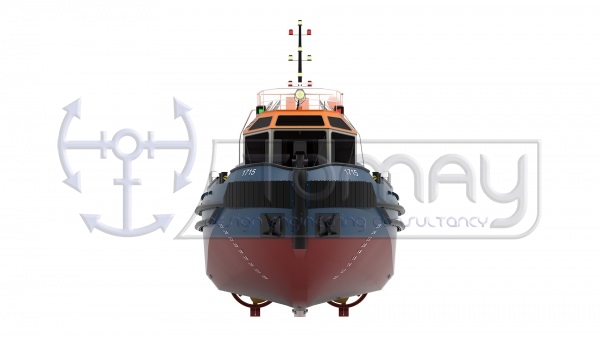

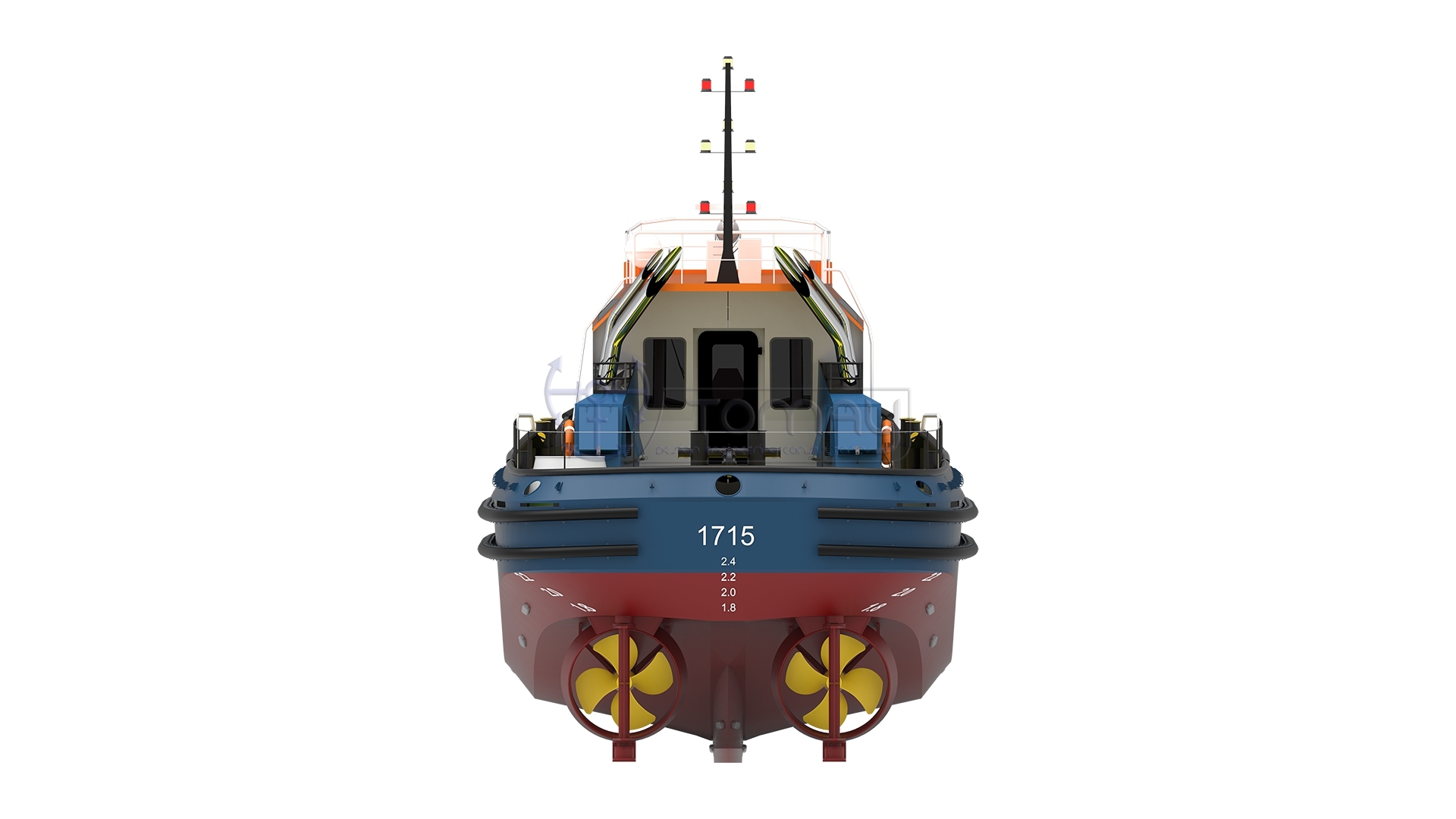

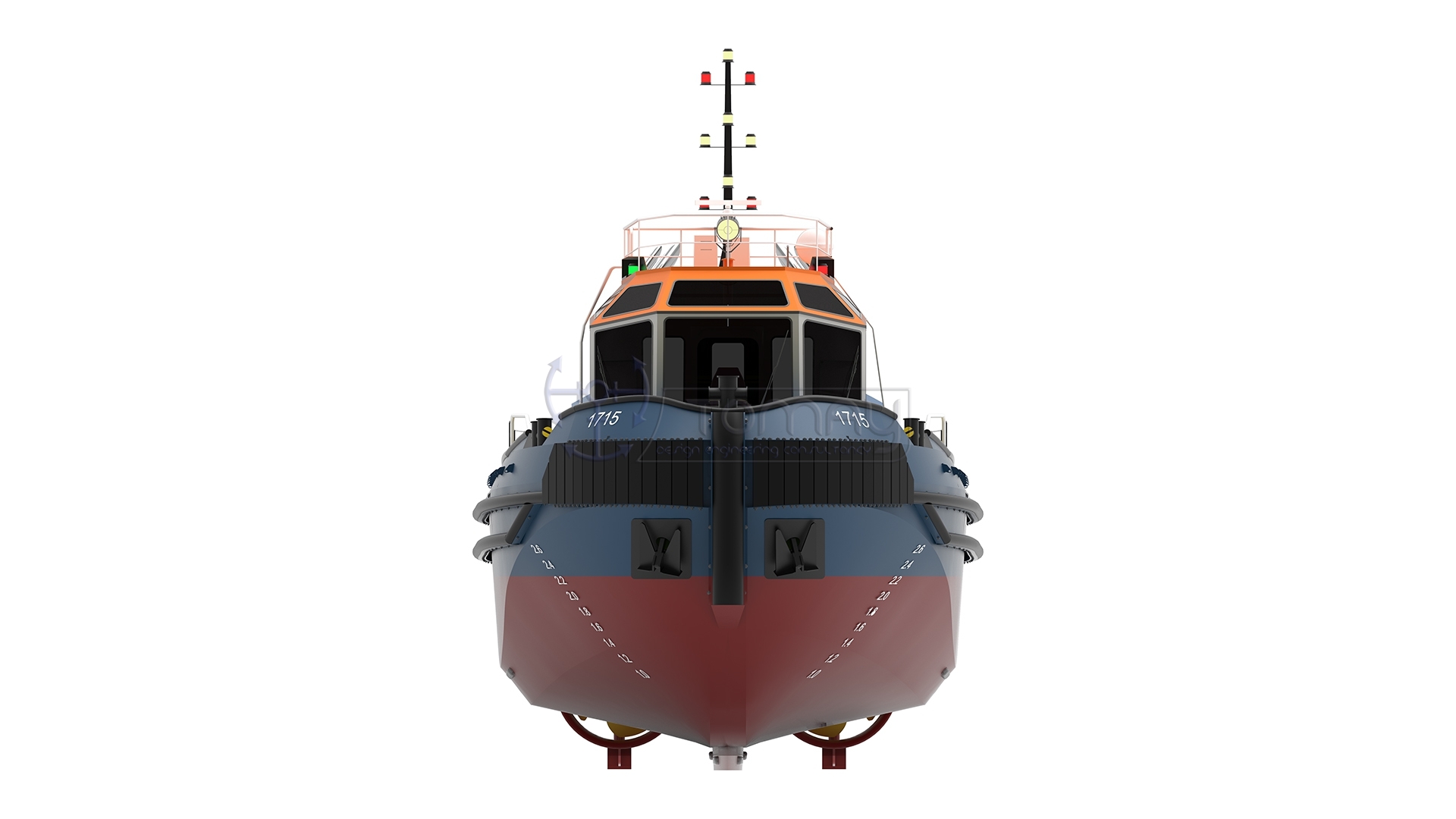

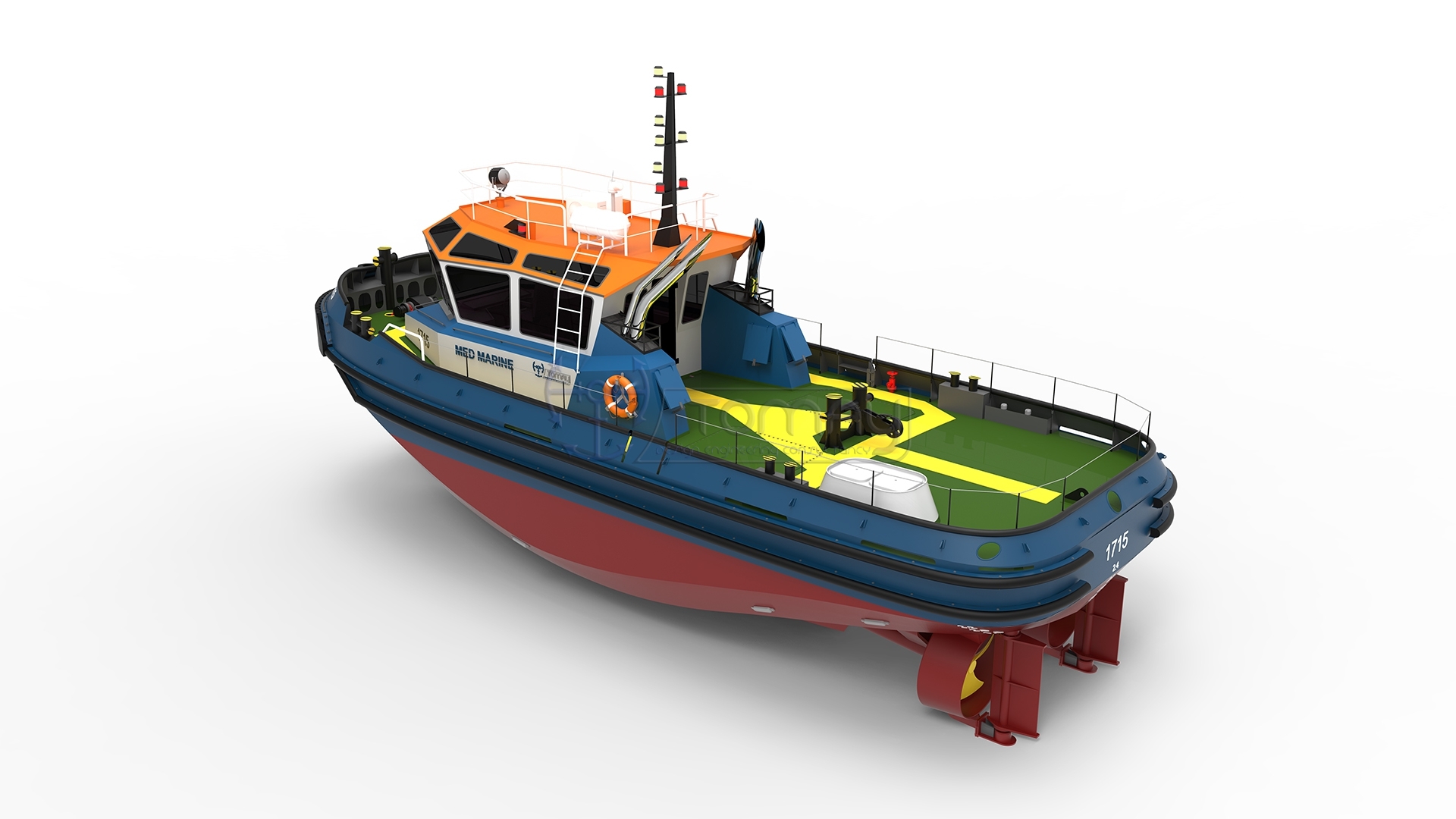

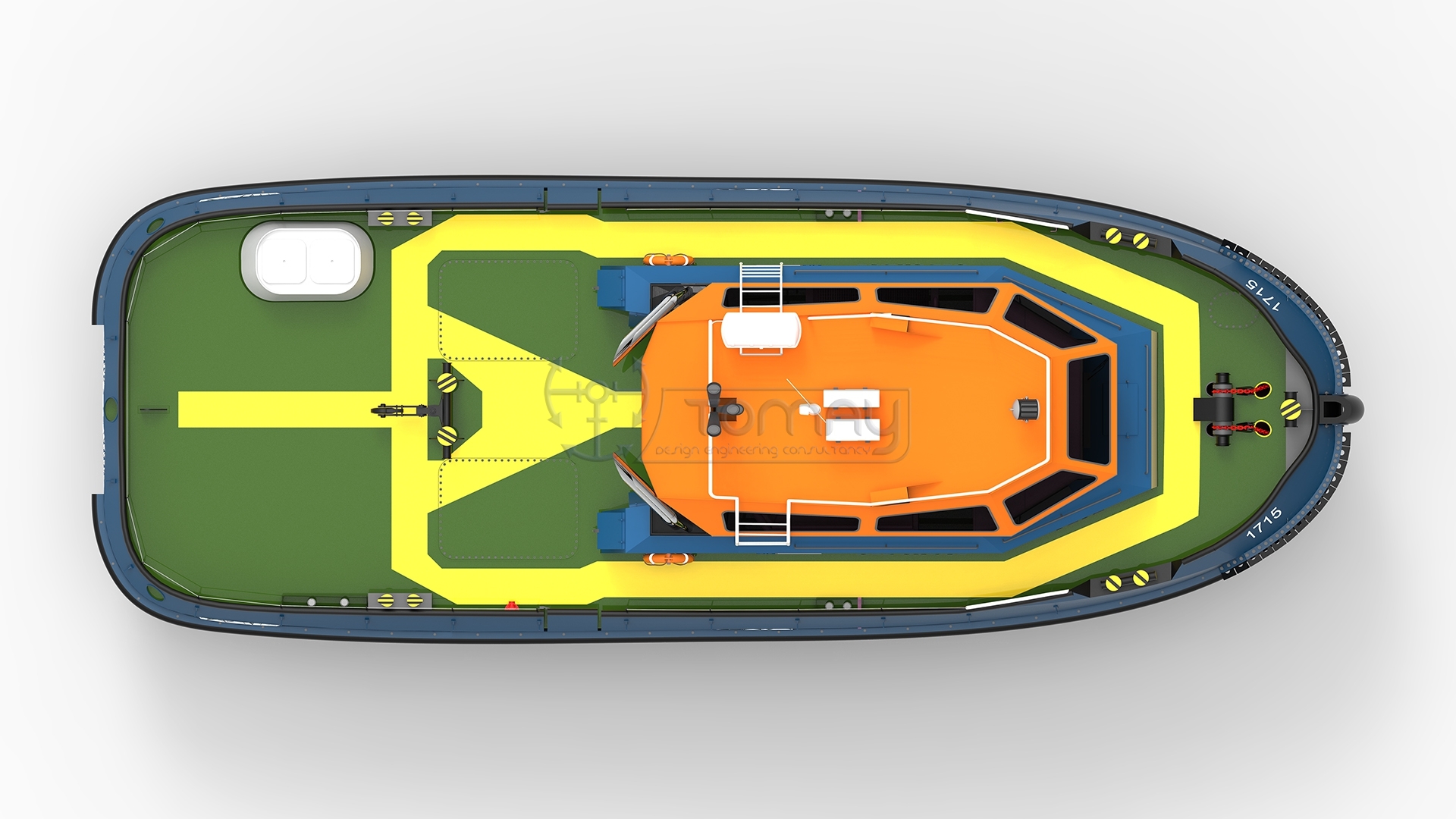

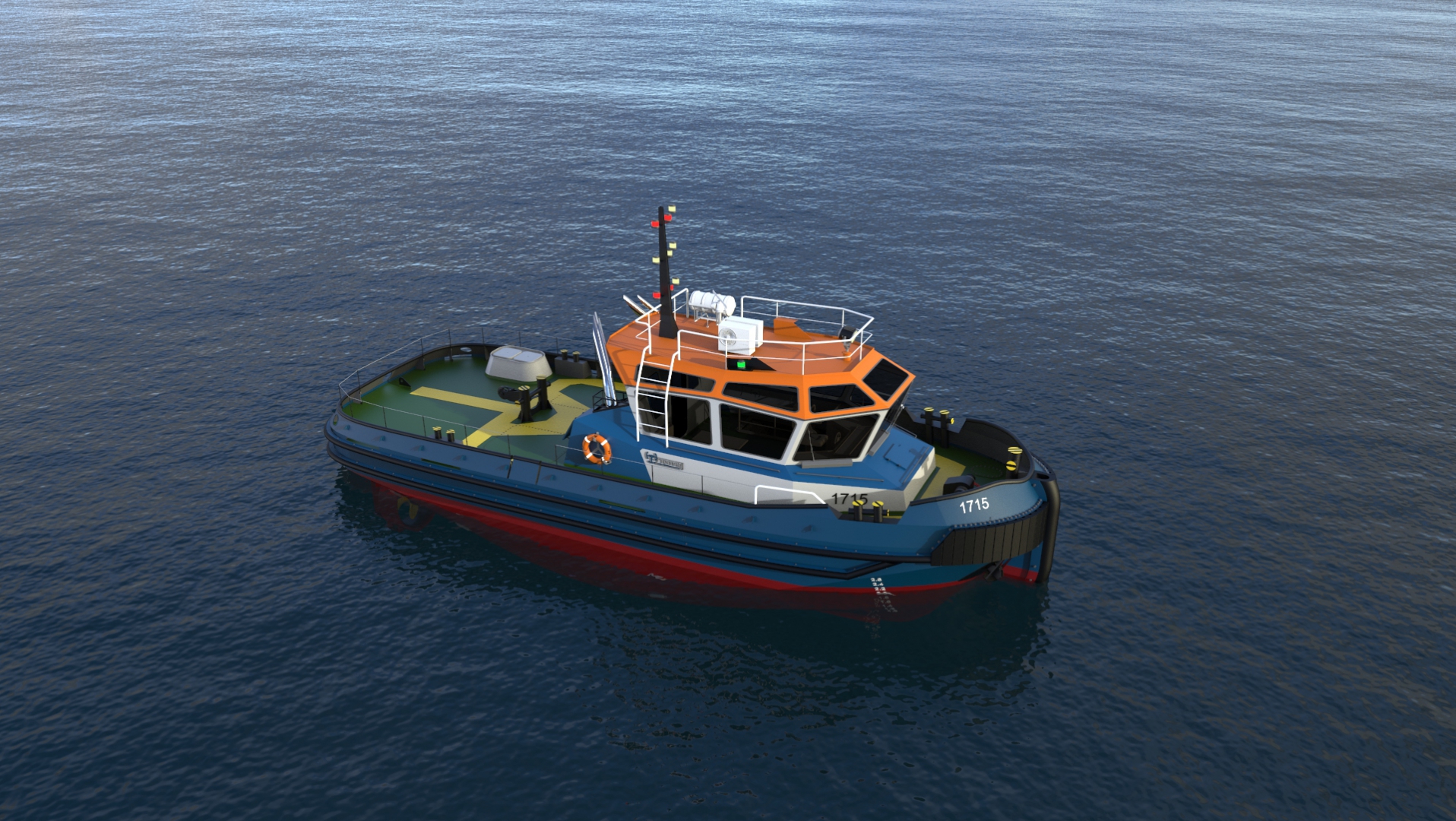

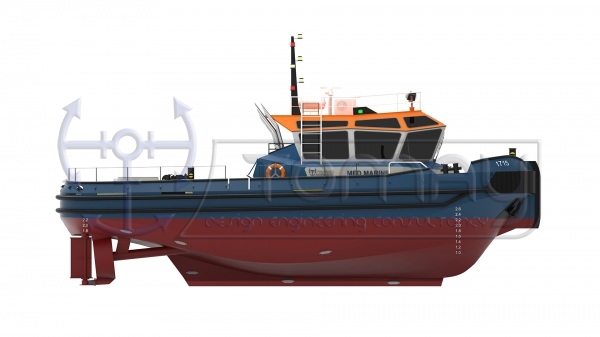

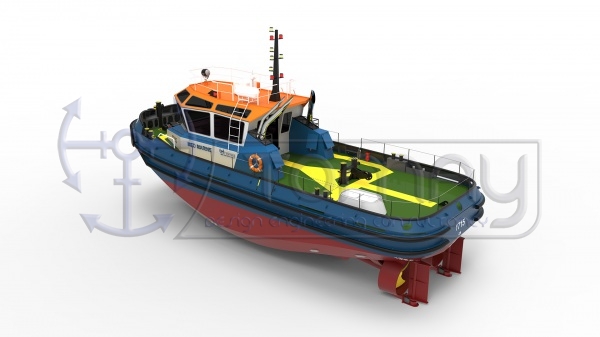

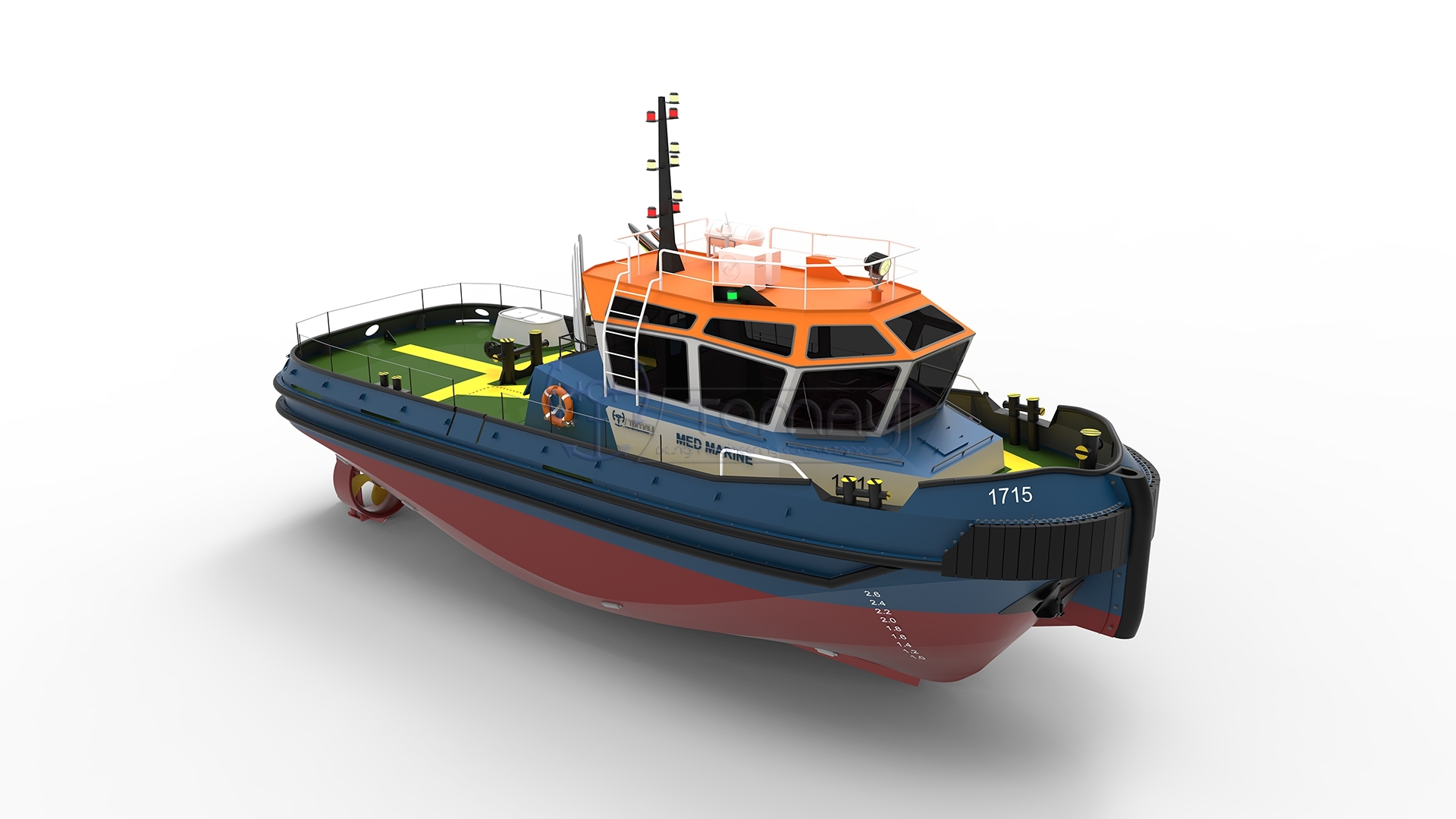

17m/15 DBP Mooring Boat

GENERAL INFORMATION

Basic Functions

Towing / Mooring

Class

RINA

Notations

C X M, Mooring Boat, Coastal Navigation

MAIN PARTICULARS

Length

17.750 m (inc. fenders)

Length (Hull)

17.150 m

Length W.L.

13.318 m

Length P.P.

12.574 m

Breadth

6.670 m (inc. fenders)

Breadth (Hull)

6.150 m

Depth

3.390 m

Draught

2.250 m

Speed

...........kts

Bollard Pull

15 t

TANK CAPACITIES

Diesel Oil

8.80 m3

Fresh Water

2.20 m3

Sewage

4.70 m3

Bilge

m3

PROPULSION SYSTEM

Main Engines

Total Power

2 x 447 kW

Propeller

AUXILIARY ENGINES

Generator (Main)

Total Power

DECK EQUIPMENT

Anchor Windlass

Chain Stopper

Towing Hook

Fendering

NAVIGATION & COMMUNICATION EQUIPMENT

AIS VHF

AIS GPS

VHF TX

ACCOMMODATION

The wheelhouse and lower deck accommodation is completely insulated and finished with durable materials and composite synthetic floors. Wheelhouse with a bench for four persons and a table. In the lower deck there is a pantry, a bench for three persons, a toilet, storage units & engine room access.

REFERENCES

Owner

MED MARINE

Shipyard

EREĞLİ SHIPYARD

Hull Number
