GENERAL INFORMATION

Basic Functions

Towing / Mooring

Class

RINA

Notations

C X M, Mooring Boat, Coastal Navigation



MAIN PARTICULARS

Length

15.580 m (inc. fenders)

Length (Hull)

14.950 m

Length W.L.

15.290 m

Length P.P.

13.525 m

Breadth

6.030 m (inc. fenders)

Breadth (Hull)

5.750 m

Depth

3.100 m

Draught

2.300 m

Speed

...........kts

Bollard Pull

15 t



TANK CAPACITIES

Diesel Oil

m3

Fresh Water

m3

Sewage

m3

Bilge

m3



PROPULSION SYSTEM

Main Engines



Total Power

2 x 447 kW

Propeller



AUXILIARY ENGINES

Generator (Main)



Total Power





DECK EQUIPMENT

Anchor Windlass



Chain Stopper



Towing Hook



Fendering





NAVIGATION & COMMUNICATION EQUIPMENT

AIS VHF



AIS GPS



VHF TX





ACCOMMODATION

The wheelhouse and lower deck accommodation is completely insulated and finished with durable materials and composite synthetic floors. Wheelhouse with a bench for four persons and a table. In the lower deck there is a pantry, a bench for three persons, a toilet, storage units & engine room access.



REFERENCES

Owner

MED MARINE

Shipyard

EREĞLİ SHIPYARD

Hull Number



CONCEPT DESIGN - TUG-14

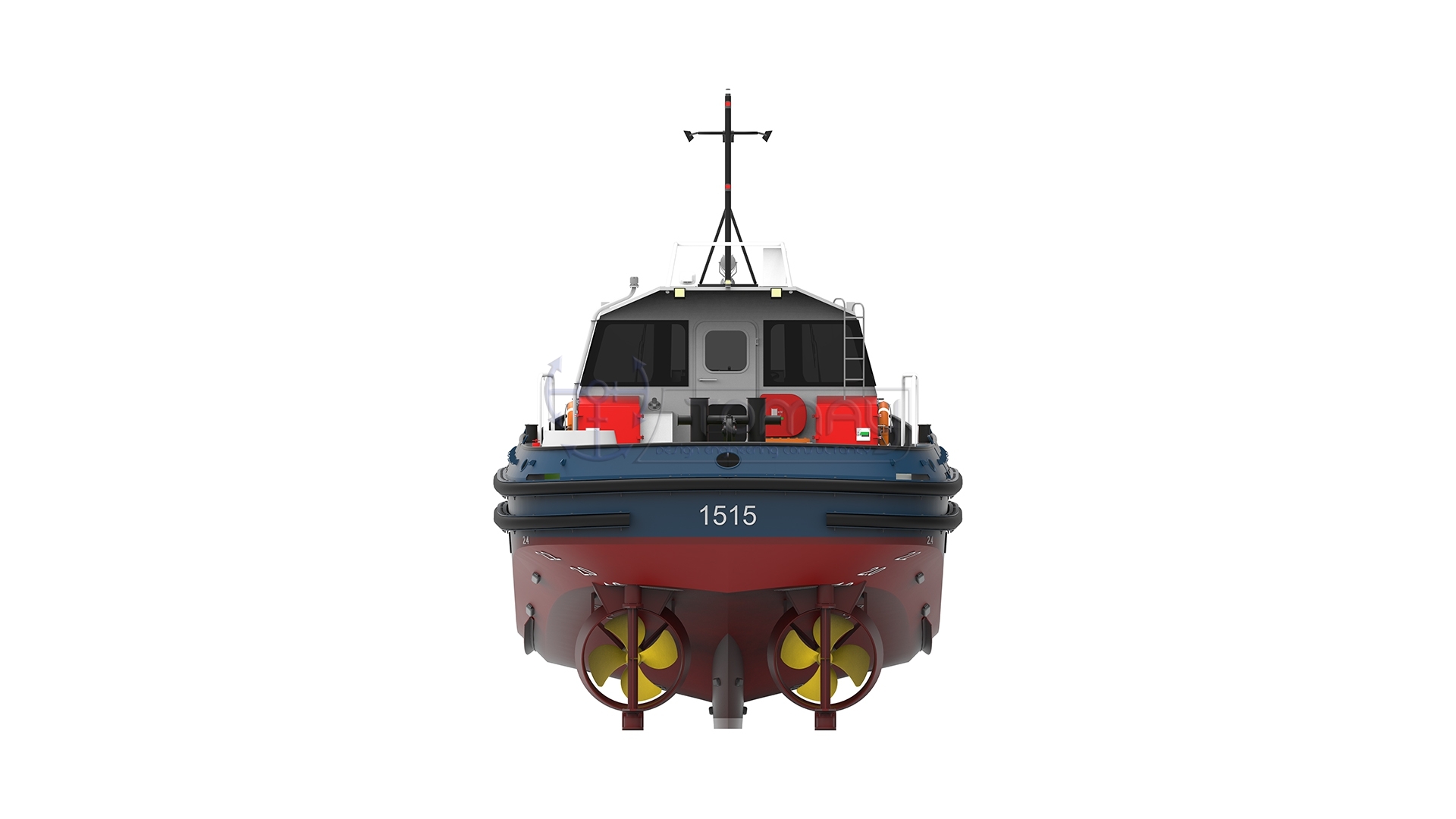

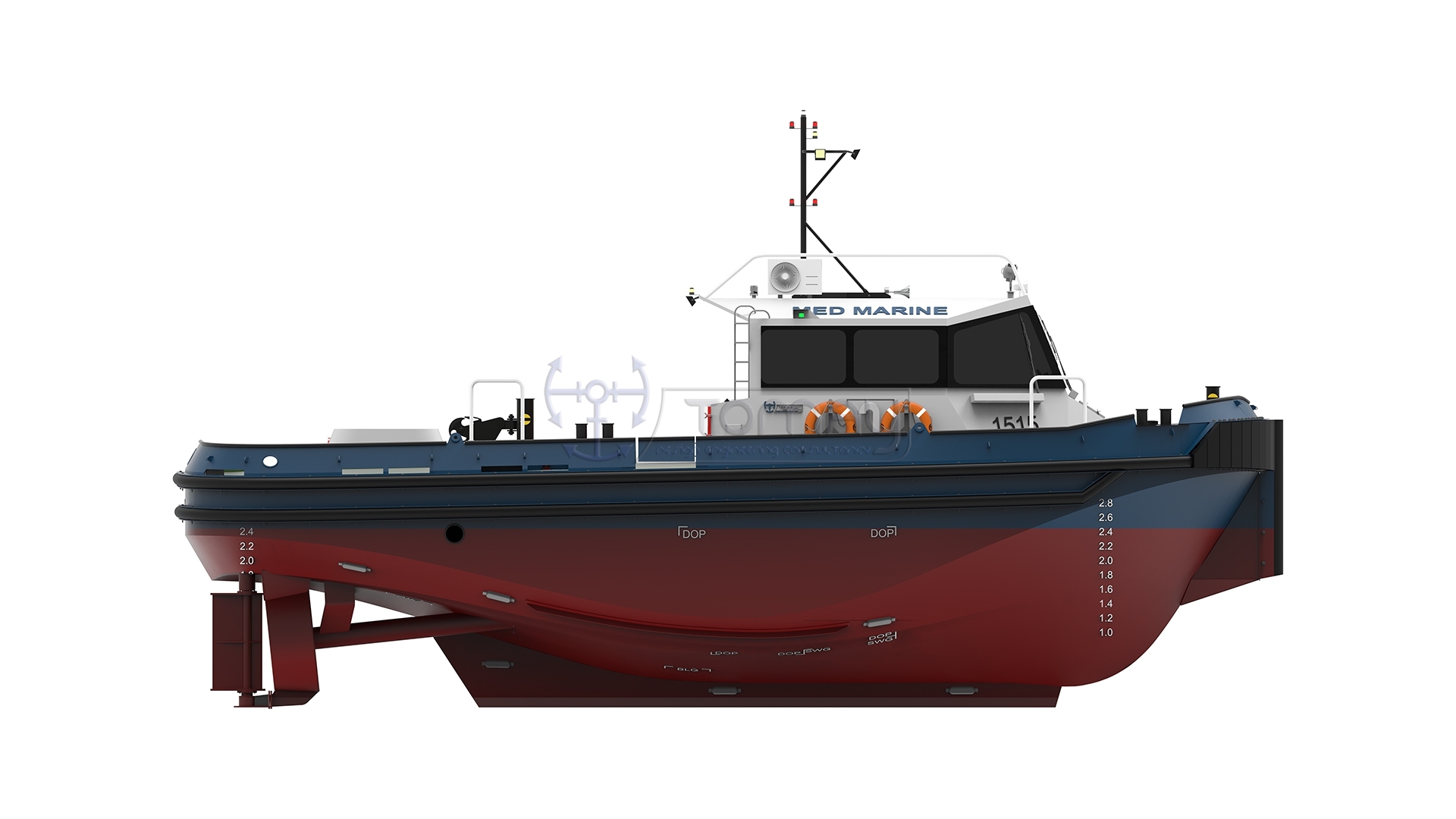

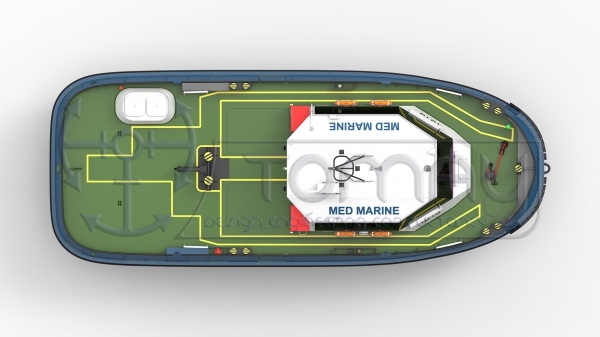

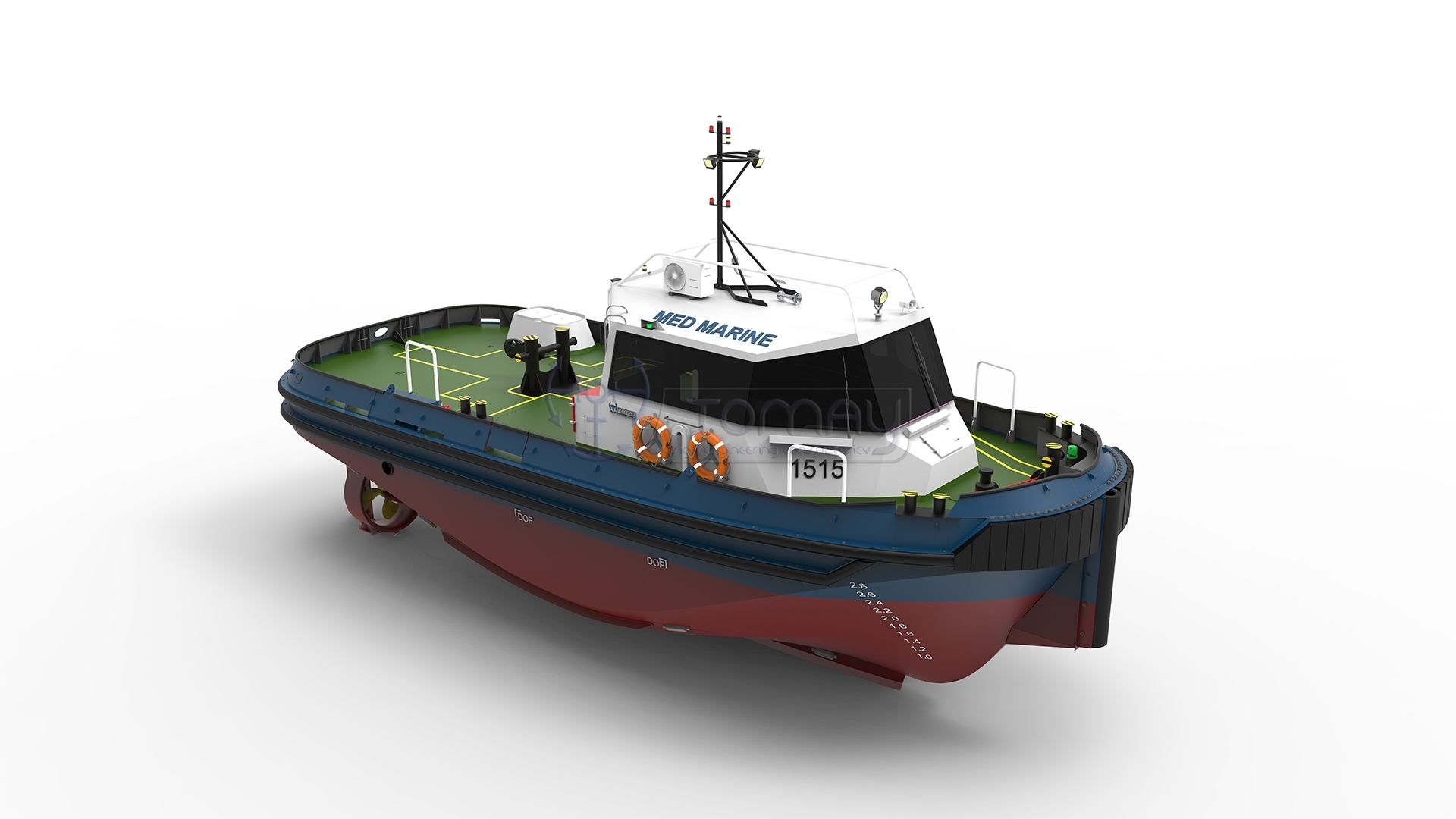

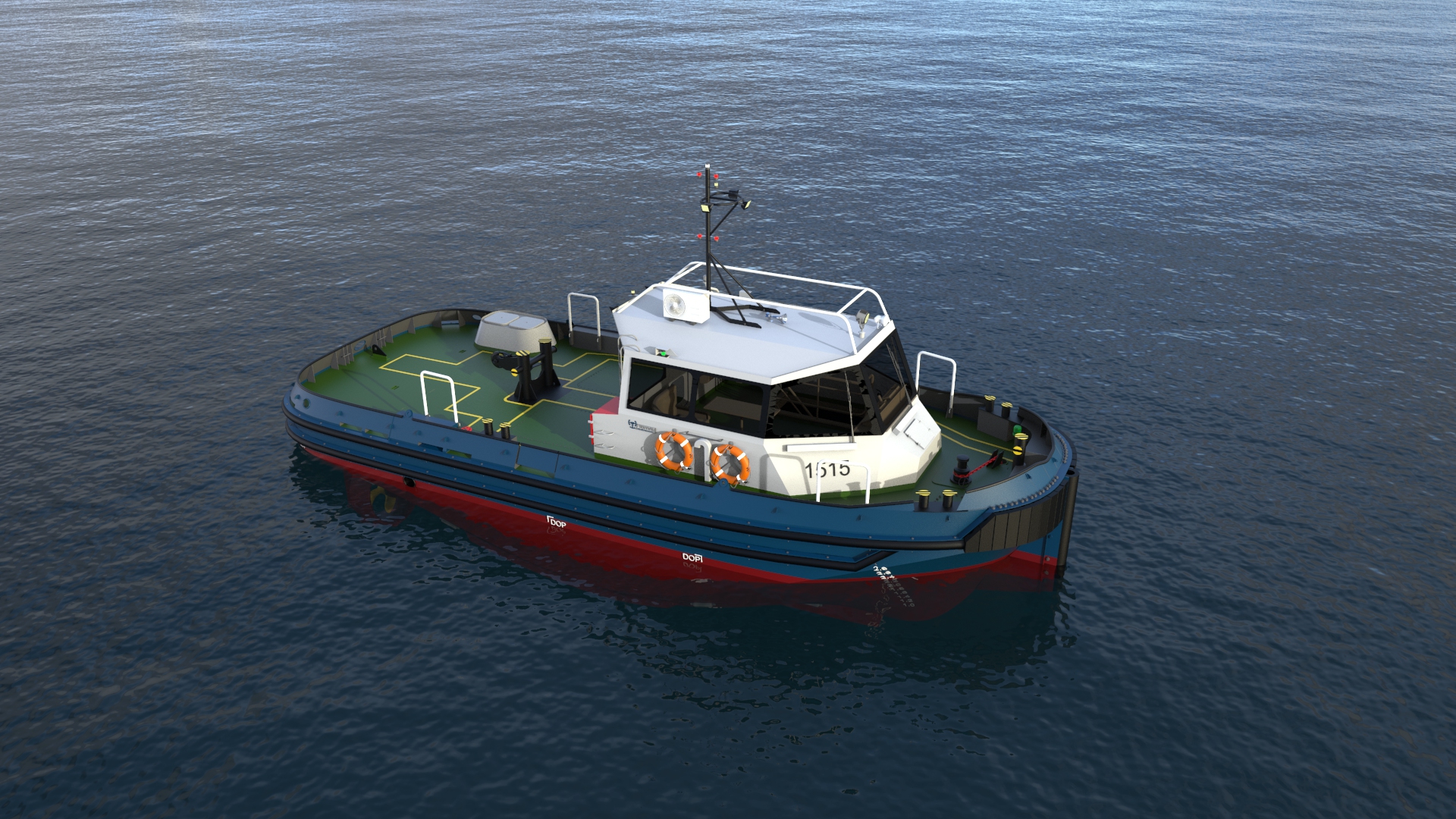

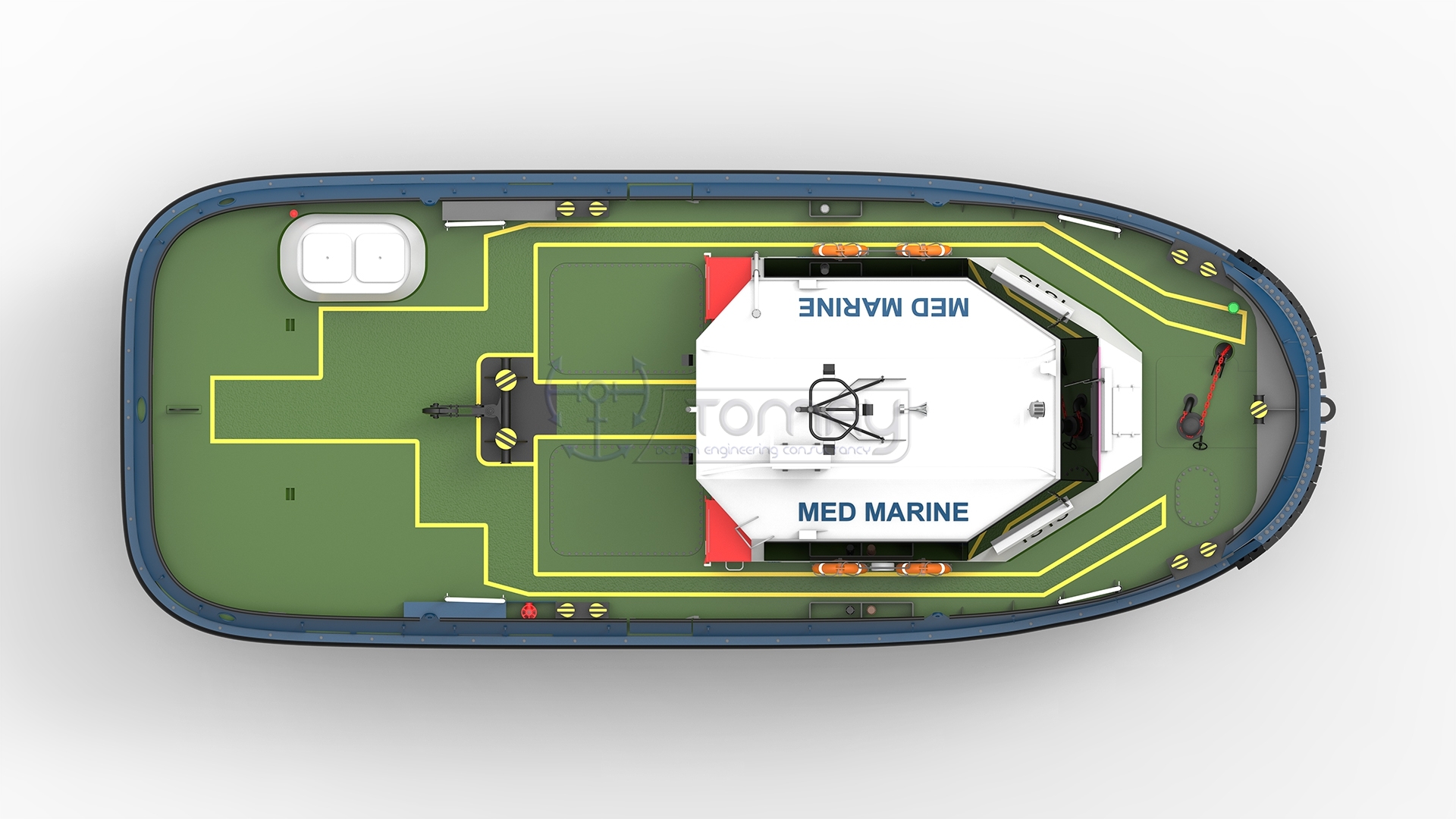

15m/15 DBP Mooring Boat

  • ALL
  • Render / Project Images
  • Detail Photos
TOMAY DESIGN
